Запчасти Case 721 (2-40) - CYLINDER BLOCK, 6T-830 ENGINE, SIX PISTON COOLING NOZZLES,PRIOR TO ENG. S.N. 44487830 (02) - ENGINE

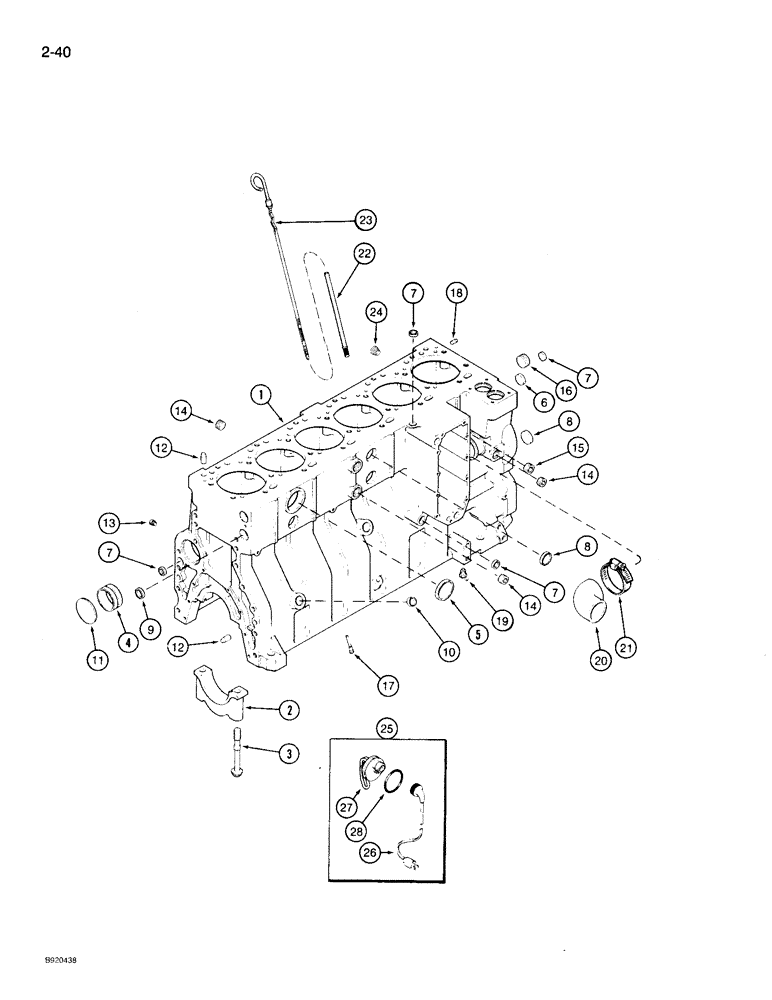

Схема запчастей Case 721 - (2-40) - CYLINDER BLOCK, 6T-830 ENGINE, SIX PISTON COOLING NOZZLES,PRIOR TO ENG. S.N. 44487830 (02) - ENGINE
7
1
14
16
22
14
24
12
15
3
19
28
26
7
10
13
12
9
18
6
5
17
8
14
11
7
20
23
2
25
4
7
8
21
27

Артикул

Название

Примечание

Количество

A174243

ENGINE

ENGINE ASSEMBLY - complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe), uses Ref. 1, piston sleeve, and Ref. 3, piston, shown on Fig.2-56, for service order 1989098C2 basic engine shown on Fig.2-48

1шт.

1989010C3R

REMAN-REPLACEMENT EN

Remanufactured, For N.A. Only

1шт.

6T-830C

CORE-REPLACEMENT ENG

Return Number, Complete, For N.A. Only

1шт.

JR912531

ENGINE, EXCHANGE

ENGINE (EXCHANGE) BLOCK ASSEMBLY - short, engine, remanufactured (North America only), component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 8

1шт.

JC912531

CORE-SHORT ENGINE

RETURN NUMBER - engine short block, use this part number to return block core for credit when using a remanufactured assembly, Includes: Ref. 2 - 8

1шт.

J912531

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new, (Includes stripped block, pistons, connecting rods, bearings, and crankshaft). no longer available, order J921057 short block and A77716 kit shown on Fig.2-44 and J918213 oil pump and J918532 plunger shown on Fig.2-30

1шт.

1

JR911898

ENGINE, EXCHANGE

ENGINE (EXCHANGE) BLOCK ASSEMBLY - cylinder, stripped, remanufactured (North America only), component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 8

1шт.

1

JC911898

SKELETON ENGINE

RETURN NUMBER - use this part number when returning stripped block core for credit when using a remanufactured assembly, Includes: Ref. 2 - 8

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY - cylinder, stripped, new (Also order J909415 kit), Includes: Ref. 2 - 8

1шт.

2

J905397

CAP

CAP - bearing, main

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

BOLT - hex flange cap, 14 x 128 mm

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft, see Figure 2-38, Ref. 6

7шт.

5

J900965

PLUG

PLUG - expansion cup, 58 mm OD

1шт.

6

A77586

PLUG

PLUG - cup, 28.9 mm OD

1шт.

7

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

PLUG - expansion, 35 mm OD

3шт.

J909415

KIT

KIT - hardware, block, Includes: Ref. 9 - 19

1шт.

9

A77530

PLUG

PLUG - expansion, 1-3/16 inch OD

2шт.

10

A77439

PLUG

PLUG - expansion, 22 mm OD

1шт.

11

J901969

PLUG

PLUG - expansion, 69 mm OD

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel

4шт.

13

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

6шт.

14

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

4шт.

15

A77505

PLUG

PLUG - hex, 3/4 inch PT

2шт.

16

A77533

PLUG

PLUG - hex, 1 inch PT

1шт.

17

J905928

NOZZLE INJECTION

NOZZLE - cooling, piston

6шт.

18

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm

2шт.

19

A77425

DRAIN VALVE

VALVE - drain, coolant

1шт.

Freeze plug for dipstick hole is J900955 (1/96 mg)

1шт.

A174243

ENGINE

ENGINE ASSEMBLY -

1шт.

20

J909389

RADIATOR HOSE,50.08 mm ID, 60.08 mm ID x 39.70 mm

Elbow, Water

1шт.

21

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - hose, 1-13/16 to 2-3/4 inch, replaces 214-261

1шт.

22

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE - engine oil dipstick

1шт.

23

J908773

DIPSTICK,485.3mm L

DIPSTICK - oil gauge

1шт.

24

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

PLUG, , Replaces 1/8 inch plug behind air compressor Hex Soc, 1/8"-27, Brass

1шт.

25

A77595

KIT

KIT - heater, coolant, Includes: Ref. 26 - 28

1шт.

26

J905113

CABLE

CABLE - heater, coolant kit

1шт.

27

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt, 1000 watts, coolant kit

1шт.

28

J910517

O-RING

O-RING - heater element, coolant kit

1шт.

Freeze plug for dipstick hole is J900955 (1/96 mg)

1шт.

Выбрано товаров: 40
