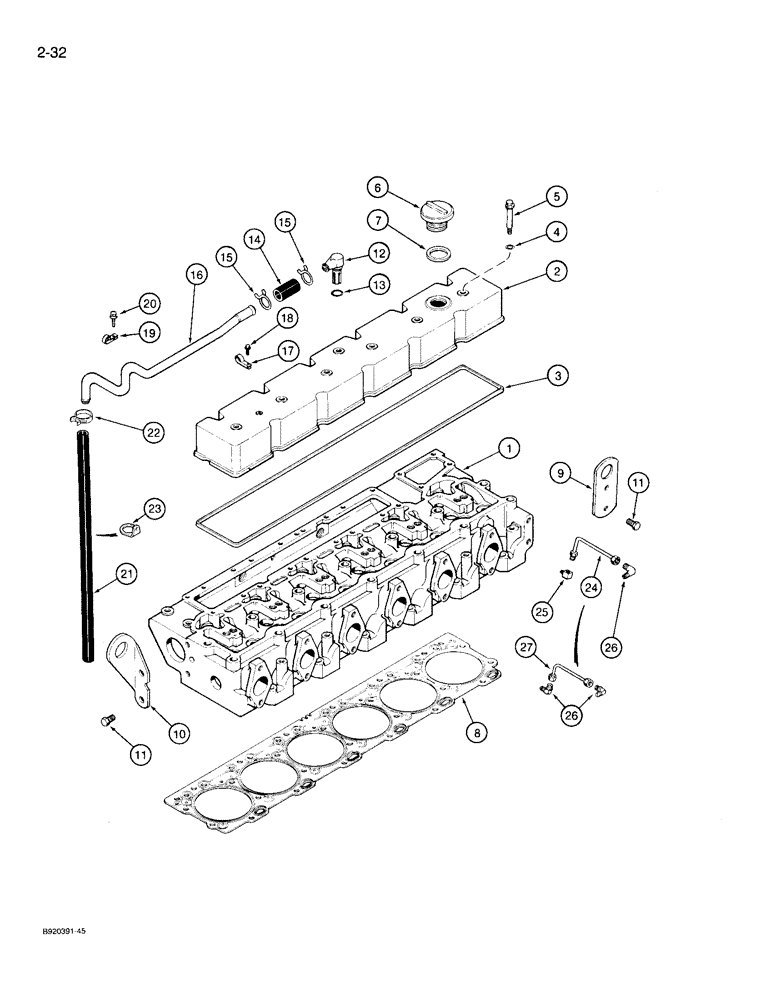

Запчасти Case 721 (2-32) - CYLINDER HEAD COVER, 6T-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-36 for correct assembly and component parts

1шт.

2

J907734

COVER ASSY

COVER - valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT - hex, 8 - 1.25 x 56 mm, replaces J901838

6шт.

6

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

8

J921216

GASKET

- cylinder head, standard, replaces J911342

1шт.

8

J914305

CYLINDER HEAD GASKET

- cylinder head, 0.27 mm thicker

1шт.

8

J914306

GASKET

- cylinder head, 0.48 mm thicker

1шт.

9

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

11

813-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

4шт.

12

J906794

CONNECTION

CONNECTOR - vent

1шт.

13

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

14

J915040

HOSE

- connector

1шт.

15

214-113

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP - spring type, 1-1/8 inch

2шт.

16

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

17

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Tube retaining M15.88, M9.52 Bolt Hole

1шт.

18

J912072

SELF-TAP SCREW

SCREW - self tapping, 8 - 1.25 x 25 mm

1шт.

19

A77538

CLIP

CLAMP - P-style, tube retaining

1шт.

20

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, Class 10.9

1шт.

21

A77717

HOSE

- breather

1шт.

22

J918163

CLIP

CLAMP - hose retaining

2шт.

23

J909670

CLIP

BRACKET - hose retaining, uses Ref. 8 access cover bolt shown on Figure 2-54

1шт.

24

J912802

TUBE,6.35 mm OD x 127.9 mm L

- vent, air, no longer available, order (1) J918167 tube, Ref. 27 and (2) 222-42 elbow, Ref. 26

1шт.

25

A77535

ELBOW UNION

ELBOW - 90 degree, adapter, used with J912802 tube, Ref. 24

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/8 inch PT

1-2шт.

27

J918167

TUBE,6.35 mm OD x 117.5 mm L

- vent, air

1шт.
