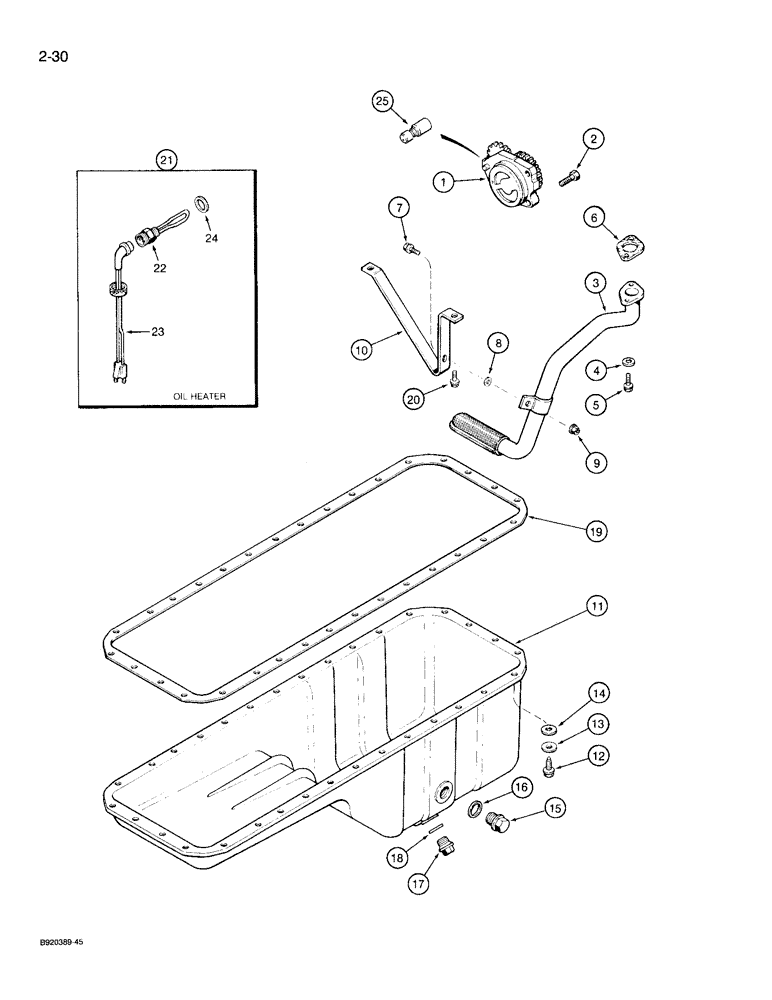

Запчасти Case 721 (2-30) - ENGINE OIL PUMP, PAN, AND HEATER, 6T-830 ENGINE (02) - ENGINE

1

J918213

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, 24 tooth drive gear, new, engine serial number 44487830 and after, engines prior to this serial number also order Ref. 25, J918532 plunger, replaces J914007 pump assembly

1шт.

1

JR921067

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - oil, 24 tooth drive gear, remanufactured (North America only), engine serial number 44487830 and after

1шт.

1

JC921067

CORE-ENGINE OIL PUMP

RETURN NUMBER - use this part number to return oil pump core for credit when using a remanufactured assembly, engine serial number 44487830 and after

1шт.

1

JR910066

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - oil, with 28 tooth drive gear, remanufactured (North America only), prior to engine serial number 44487830

1шт.

1

JC910066

PUMP

RETURN NUMBER - use this part number to return oil pump core for credit when using a remanufactured assembly, prior to engine serial number 44487830

1шт.

1

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 30 mm

4шт.

3

J910787

TUBE

SCREEN - oil suction

1шт.

4

J908738

SPACER

SPACER - mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - hex flange, 6 - 1.0 x 30 mm

2шт.

6

J914302

GASKET

GASKET - mounting, oil tube

1шт.

Part of gasket, oil pan, kit P/N A77679

1шт.

7

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

BOLT - hex flange, 6 - 1.0 x 20 mm

1шт.

8

J910960

WASHER

WASHER - flat, special

1шт.

9

J906216

FLANGE NUT

NUT - hex flange, 16 mm

1шт.

10

J913427

BRACE

BRACE - suction tube

1шт.

11

J914013

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex, flange, 8 - 1.25 x 25 mm

32шт.

13

J910266

LOCK WASHER

WASHER - Belleville spring

32шт.

14

J908316

WASHER

WASHER - flat, 8 mm

32шт.

15

J904386

PLUG

PLUG - pipe, heater hole

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

Part of gasket, oil pan, kit P/N A77679

1шт.

17

J911638

PLUG,M18 x 1.5

PLUG - drain, oil magnetic

1шт.

18

J920773

SEALING WASHER

WASHER - seal, drain plug, replaces J900216

1шт.

Part of gasket, oil pan, kit P/N A77679

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77679 gasket kit

1шт.

Part of gasket, oil pan, kit P/N A77679

1шт.

20

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

21

A77580

SERVICE KIT

HEATER KIT - oil pan, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

23

J905113

CABLE

CABLE - engine block heater

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

25

J918532

PLUNGER

PLUNGER - pressure regulator, use with Ref. 1, J918213 pump on engines prior to serial number 44487830

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, Includes Refs. 6, 16, 18 and 19

1шт.
