Запчасти Case 721 (2-26) - OIL FILTER AND COOLER, 6T-830 ENGINE, PRIOR TO ENG. S.N. 44500128 (02) - ENGINE

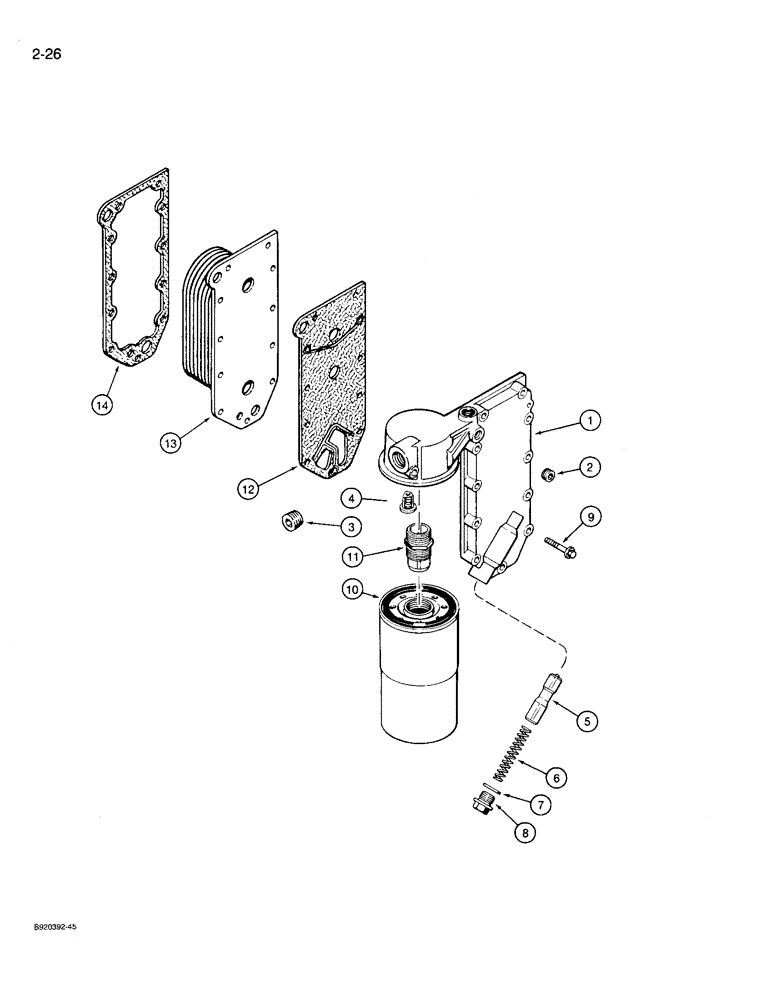

Схема запчастей Case 721 - (2-26) - OIL FILTER AND COOLER, 6T-830 ENGINE, PRIOR TO ENG. S.N. 44500128 (02) - ENGINE
4
10
9
3
7
12
5
13
14
6
8
11
2
1

Артикул

Название

Примечание

Количество

1

J907831

HEAD

- filter and cooler

1шт.

2

J906619

PLUG,1/8" - 27

- hex socket, 1/8 inch PT

1шт.

3

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

A77540

PLUNGER

- regulator

1шт.

6

A77541

SPRING

- compression

1шт.

7

J901798

SEALING WASHER

WASHER - sealing

1шт.

8

J906299

PLUG

- regulator

1шт.

9

J901445

FLANGE BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

BOLT - hex flange, 8 - 1.25 x 45 mm

11шт.

10

A77537

ENGINE OIL FILTER

FILTER - oil

1шт.

11

A77542

ADAPTER

- filter

1шт.

12

J914308

GASKET

- filter head

1шт.

13

J906296

CORE, RADIATOR

CORE - cooler, oil

1шт.

14

J918174

GASKET,0.71mm Thk

- oil cooler, replaces J914307

1шт.

Выбрано товаров: 14
