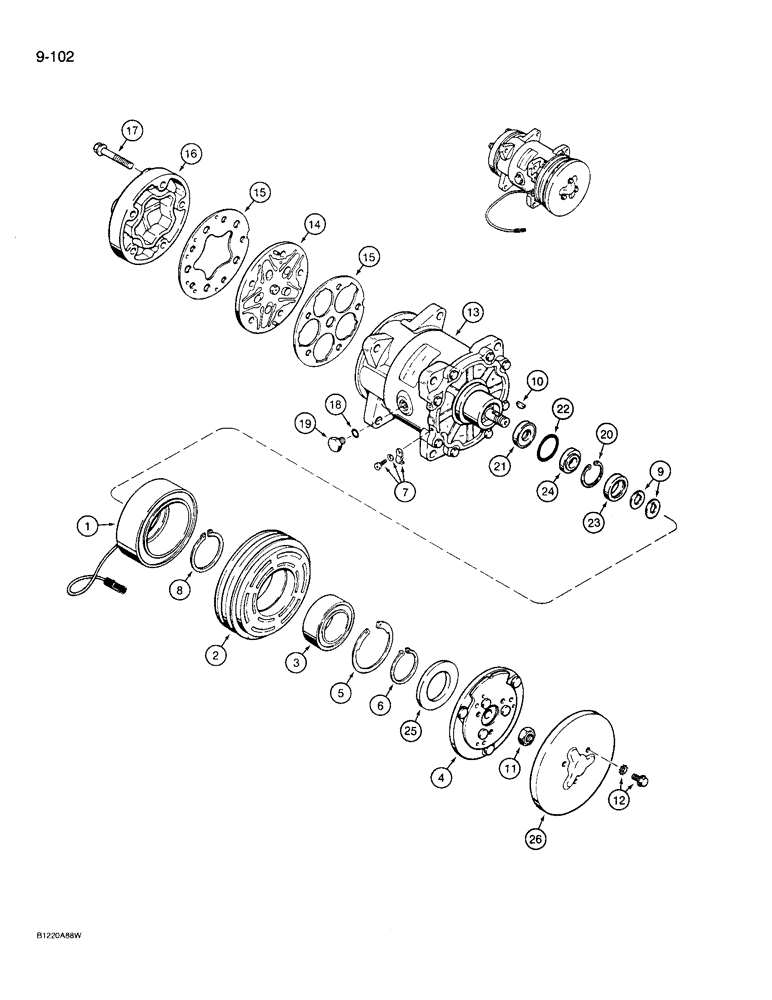

Запчасти Case 721 (9-102) - AIR CONDITIONING COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

97179C2

COMPRESSOR

ASSEMBLY - air conditioning, Includes: Ref. 1 - 26

1шт.

1977652C1

CLUTCH

ASSEMBLY - compressor, component parts not serviced separately

1шт.

1

NSS

NOT SOLD SEPARAT

COIL ASSEMBLY - field, 24 volt, complete

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY ASSEMBLY - drive, two groove, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - pulley

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - front

1шт.

5

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

A49673

KIT

- accessory, clutch, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

RING - snap, pulley

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP - lead wire, includes hardware

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM - clutch

1шт.

10

NSS

NOT SOLD SEPARAT

KEY - clutch drive

1шт.

11

NSS

NOT SOLD SEPARAT

NUT - retainer

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - retainer

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK - compressor

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - valve, Includes: Ref. 15

1шт.

15

A49668

GASKET KIT

KIT - gasket, valve plate

1шт.

16

1958959C1

COVER

HEAD ASSEMBLY - cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - hex flange head

5шт.

18

A49666

O-RING

- rubber

3шт.

19

A49667

PLUG

- oil filler

1шт.

A49665

SEAL KIT

KIT - seal, compressor, Includes: Ref. 20 - 24

1шт.

20

A49664

CIRCLIP

RING - snap, seal seat

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - housing

1шт.

23

NSS

NOT SOLD SEPARAT

RING - felt

1шт.

24

NSS

NOT SOLD SEPARAT

SEAT - seal, shaft

1шт.

25

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

COVER - dust, bearing

1шт.

26

1958961C1

COVER

- dust, clutch

1шт.
