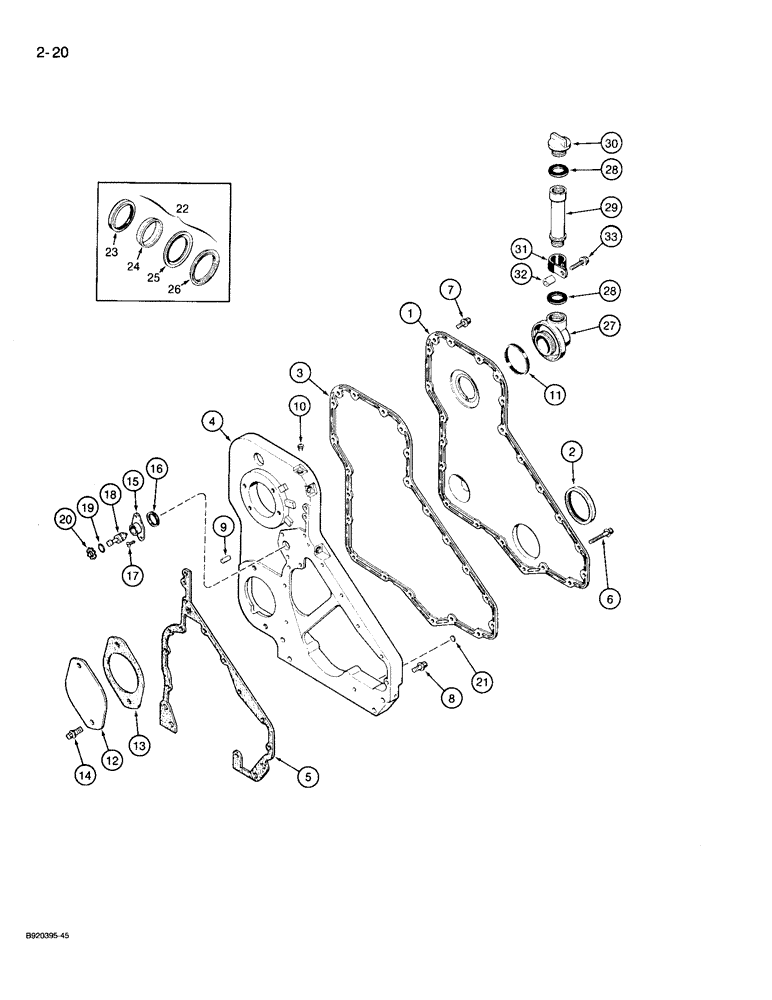

Запчасти Case 721 (2-20) - FRONT GEAR COVER, 6T-830 ENGINE (02) - ENGINE

1

J916193

COVER

ASSEMBLY - gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, order Ref. 22

1шт.

3

J917780

GASKET,0.98mm Thk

GASKET - cover, gear, replaces J913431

1шт.

4

J914945

MOTOR HOUSING

HOUSING - gear, replaces J915074

1шт.

5

J914303

SEAL

GASKET - housing, gear

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

6шт.

7

J924962

FLANGE BOLT

BOLT - heavy hex flange, 8 - 1.25 x 16 mm, Replaced 845-8016, or use J900629 with Locktite

17шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, 8 - 1.25 x 20 mm

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

- dowel, locating, 16 mm

2шт.

10

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT, if used

3шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

12

J914868

COVER

PLATE - cover, access, replaces J909918

1шт.

13

J919601

GASKET

- cover, access, replaces J913288

1шт.

14

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 -1.75 x 25 mm, Class 10.9

2шт.

15

J905933

HOUSING

- timing pin

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - pin housing, replaces J914092

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

19

J913994

O-RING

- sealing

1шт.

20

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

21

A77552

PLUG

- expansion, 29/64 inch diameter, lower dowel hole

1шт.

22

A77790

SEAL KIT

KIT - seal, crankshaft front, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

26

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, crank seal

1шт.

27

J911679

HOUSING

CONNECTOR - engine oil fill

1шт.

28

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

2шт.

29

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

- oil filler

1шт.

30

J901895

CAP

- oil filler

1шт.

31

A77695

MOUNTING CLIP

CLIP - retainer

1шт.

32

A77697

SPACER

- tubular

1шт.

33

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- hex flange, 8 - 1.25 x 40 mm, 8.8

1шт.
