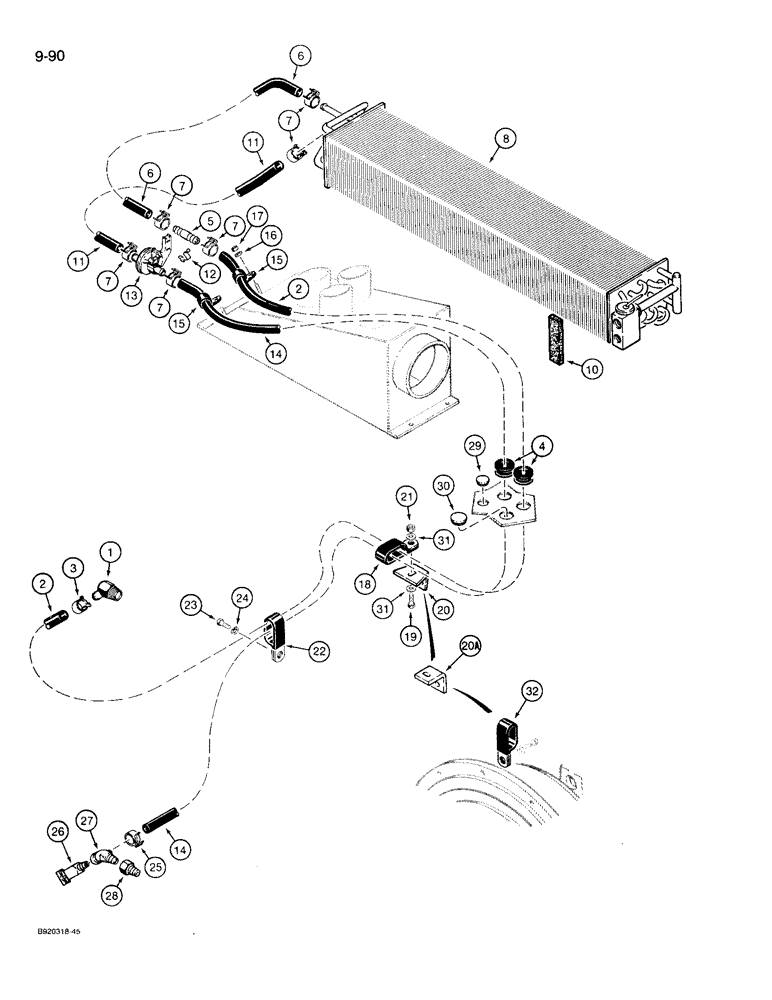

Запчасти Case 721 (9-090) - HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 45 degree, 5/8 stem end x 1/2 inch PT

1шт.

2

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HEATER HOSE , Supply, Cut from 97252C1 bulk hose, See below, Cut from R54970 bulk hose, See below 15.50 mm ID x 3302.00 mm

1шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, No. 24, Spring

1шт.

4

L116914

GROMMET

- heater hoses

2шт.

5

1301342C1

FITTING

CONNECTOR - heater hose

1шт.

6

1981958C1

HEATER HOSE,15.50 mm ID x 330.00 mm

HOSE , Preformed, Supply, At Core 15.50 mm ID x 330.00 mm

1шт.

7

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, No. 24, Spring

6шт.

8

98369C3

RADIATOR

CORE ASSEMBLY - combination, air conditioning and heater, parts list Figure 9-88

1шт.

9

1331025C1

CORE

- used on models with heater only, not shown

1шт.

10

1340075C1

SEAL

- 5-1/8 inch (130 mm) long, core ends, cut from 1974883C1 bulk seal, see below

4шт.

11

1977501C1

HEATER HOSE,15.50 mm ID x 610.00 mm

HOSE , Return, At Core 15.50 mm ID x 610.00 mm

1шт.

12

1954626C1

SPRING CLIP

CLIP - spring, heater cable retaining

1шт.

13

1331087C1

HEATER VALVE

VALVE - heater control, see Figure 4-16 for heater control cable

1шт.

14

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

HEATER HOSE - Return, Cut from 97252C1 bulk hose, See below 15.50 mm ID x 2921.00 mm

1шт.

15

R14668

CLAMP

- hose retaining

2шт.

16

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

18

L111928

CLAMP

- double, heater hose, if used

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

1шт.

20

L119034

SUPPORT

BRACKET - heater hose clamp, corners are angled, if used

1шт.

20a

L127754

SUPPORT

BRACKET - heater hose clamp, corners are square, if used

1шт.

21

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8 inch NC, if used

1шт.

22

L111928

CLAMP

- double, heater hose

1шт.

23

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

24

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

25

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, No. 24, Spring

1шт.

26

301803R1

SHUT-OFF VALVE

VALVE - shutoff, water

1шт.

27

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Street 45º, 3/8"-18 Female x 3/8"-18 Male

1шт.

28

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Used on models with heating only Dome, 1.000" hole, Nylon

1шт.

30

192280

HOLE PLUG BUTTON,1 1/4"

PLUG - nylon, 1-1/4 inch, used on models with heating only

1шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), If used 3/8", SAE

2шт.

32

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- double, heater hose, uses transmission converter to flywheel housing mounting hardware, shown on Figure 6-8, Refs. 2 and 3

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.

1974883C1

SEAL

- bulk roll, self-adhesive, 50 ft (15240 mm) long

1шт.
