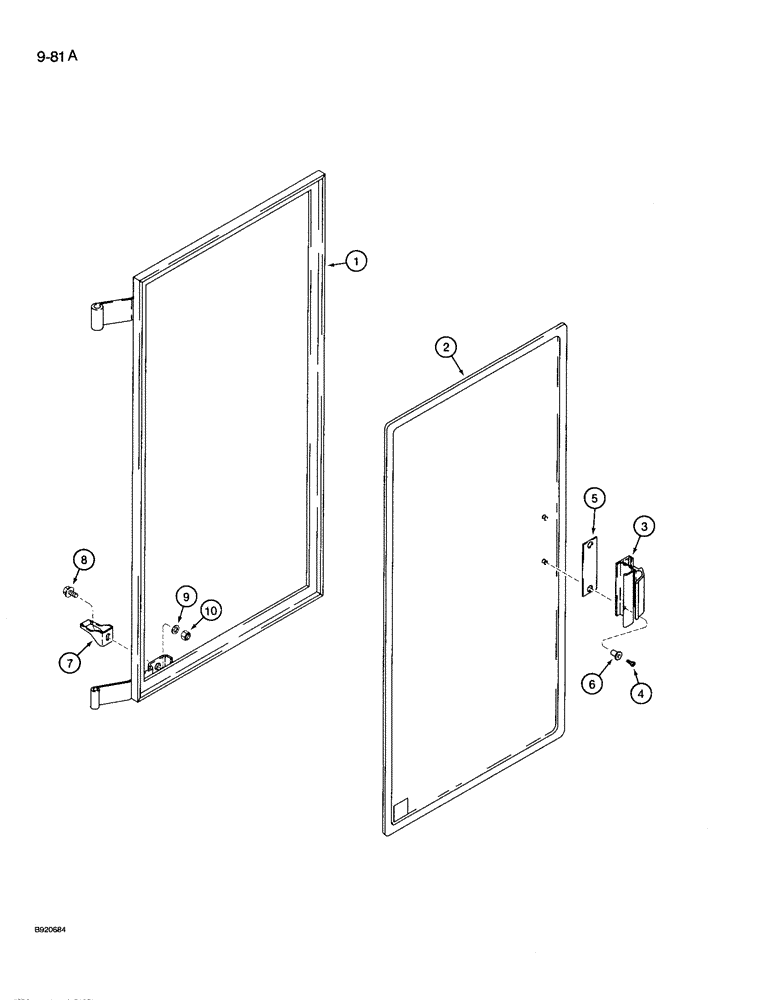

Запчасти Case 721 (9-081A) - CAB DOOR WINDOW, CABS WITH ALUMINUM LATCHES FOR WINDOW (09) - CHASSIS/ATTACHMENTS

108196A1

WINDOW ASSY

WINDOW ASSEMBLY - hinged, cab door, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - window, cab door

1шт.

2

1999712C1

GLASS

- window

1шт.

Bonded into frame, no seal used

1шт.

3

1339749C1

LOCK

- window

1шт.

4

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- machine, pan Phillips head, No. 10 NF x 3/4 inch

2шт.

5

1970083C1

GASKET

- window lock

1шт.

6

1970082C1

ROUND NUT

- well, No. 10 NF

2шт.

7

1981896C1

STOP

CATCH - window

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex flange, 3/8 NC x 3/4 inch

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

10

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.
