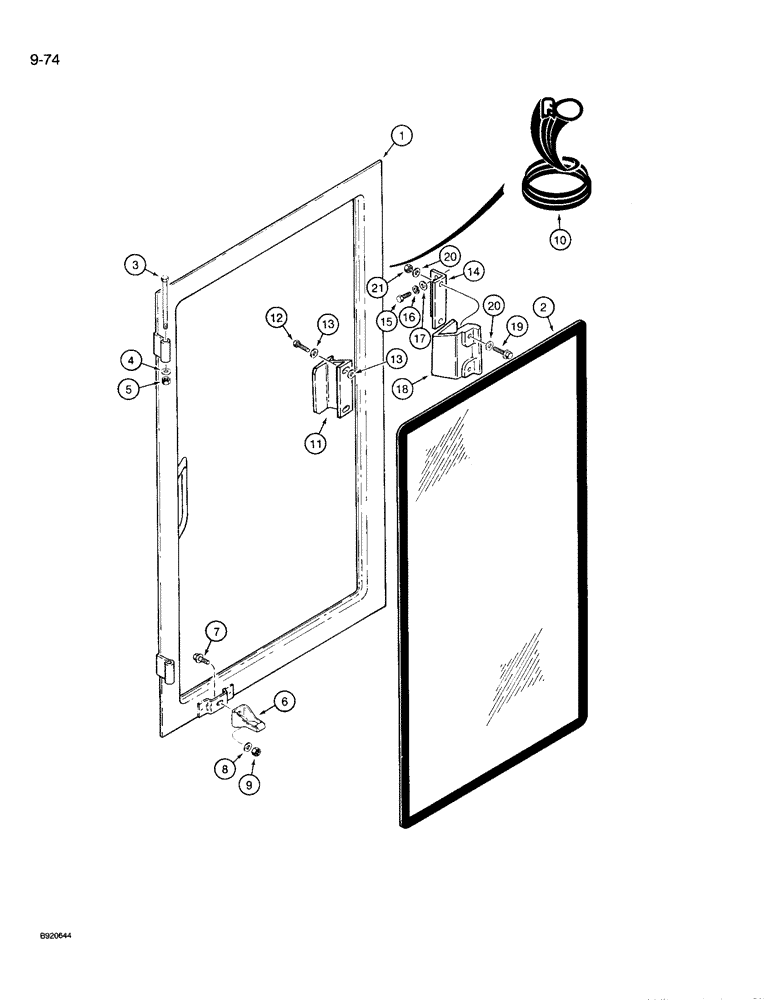

Запчасти Case 721 (9-074) - RIGHT-HAND CAB WINDOW, CABS WITH PLASTIC LATCHES FOR WINDOW (09) - CHASSIS/ATTACHMENTS

1

1340452C2

FRAME ASSY

FRAME - window, right-hand

1шт.

2

1340424C1

GLASS,CAB

GLASS - window, right-hand

1шт.

3

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

4

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- plastic, hinge

2шт.

5

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8 inch NC

2шт.

6

1981896C1

STOP

CATCH - male, open window retainer

1шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex flange, 3/8 NC x 3/4 inch

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

9

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

10

1344165C1

SEAL

SEAL - 3510 mm long, right-hand window

1шт.

11

97399C1

HANDLE

- window, plastic

1шт.

2 3/4" span between screw holes, center to center

1шт.

12

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

- machine, hex washer head, No. 10 NC x 3/4 inch

2шт.

13

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64") #12

4шт.

14

1344259C1

ANGLE

BRACKET - latch mounting

1шт.

Mounting holes 1.81" center to center

1шт.

15

113-67

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

16

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

18

97398C1

LOCK ASSY

LATCH - window, plastic

1шт.

19

163-39

SCREW,Hex Wshr Hd, #10 - 24 x 3/4", Gr 5

- machine, hex washer head, No. 10 NC x 3/4 inch

2шт.

20

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64") #12

4шт.

21

F45165

SPECIAL NUT,#10-24

NUT - hex lock, special

2шт.
