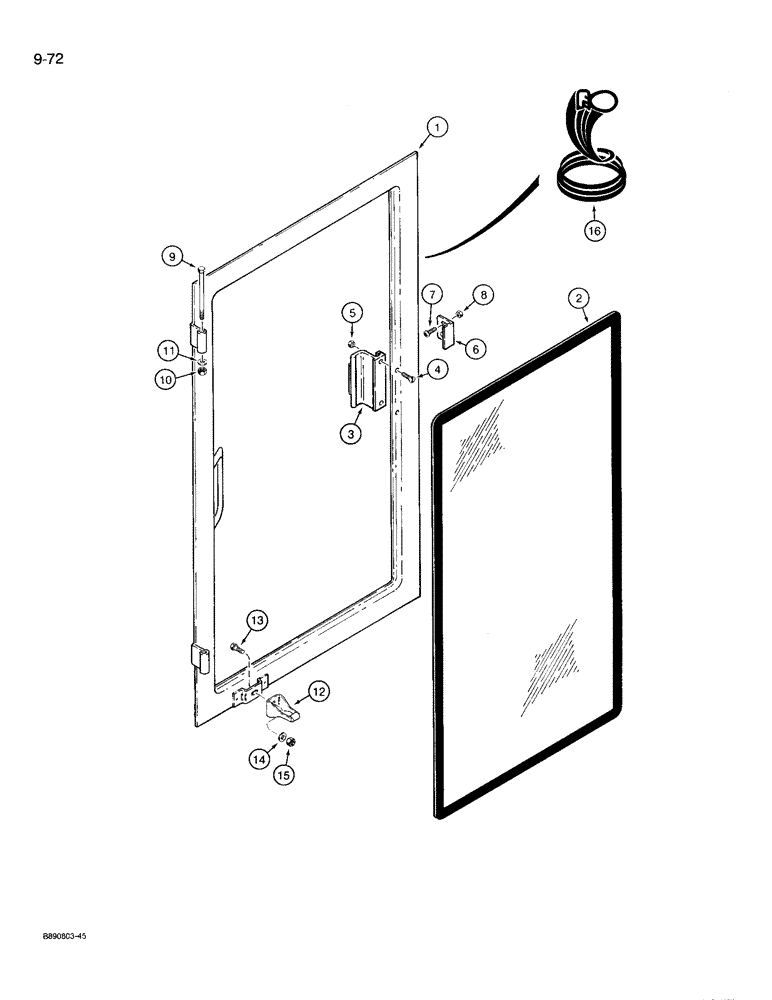

Запчасти Case 721 (9-072) - RIGHT-HAND CAB WINDOW, CABS WITH ALUMINUM LATCHES FOR WINDOW (09) - CHASSIS/ATTACHMENTS

1

1339638C3

CHASSIS

FRAME - window, right-hand

1шт.

2

1340424C1

GLASS,CAB

GLASS - window, right-hand

1шт.

3

1339749C1

LOCK

LATCH - window, aluminum, right-hand, Serial Range: attaches-window

1шт.

Has 3 1/2" span between bolt holes, center to center

1шт.

4

172-99

SCREW,Sl Flat Hd, #10 - 32 x 5/8"

- machine, flat head slotted, No. 10 NF x 5/8 inch

2шт.

5

129-37

NUT,#10-32

2шт.

6

1969975C3

LATCH

- window, aluminum, right-hand, attaches to cab frame

1шт.

Mounting slot holes are 1 1/4" center to center

1шт.

7

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

2шт.

8

129-119

NUT,1/4"-20, G5

2шт.

9

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

10

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8 inch NC

2шт.

11

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- plastic, hinge

2шт.

12

1981896C1

STOP

CATCH - male, open window retainer

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

14

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

1шт.

15

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

16

1344165C1

SEAL

SEAL - 3510 mm long, right-hand window

1шт.
