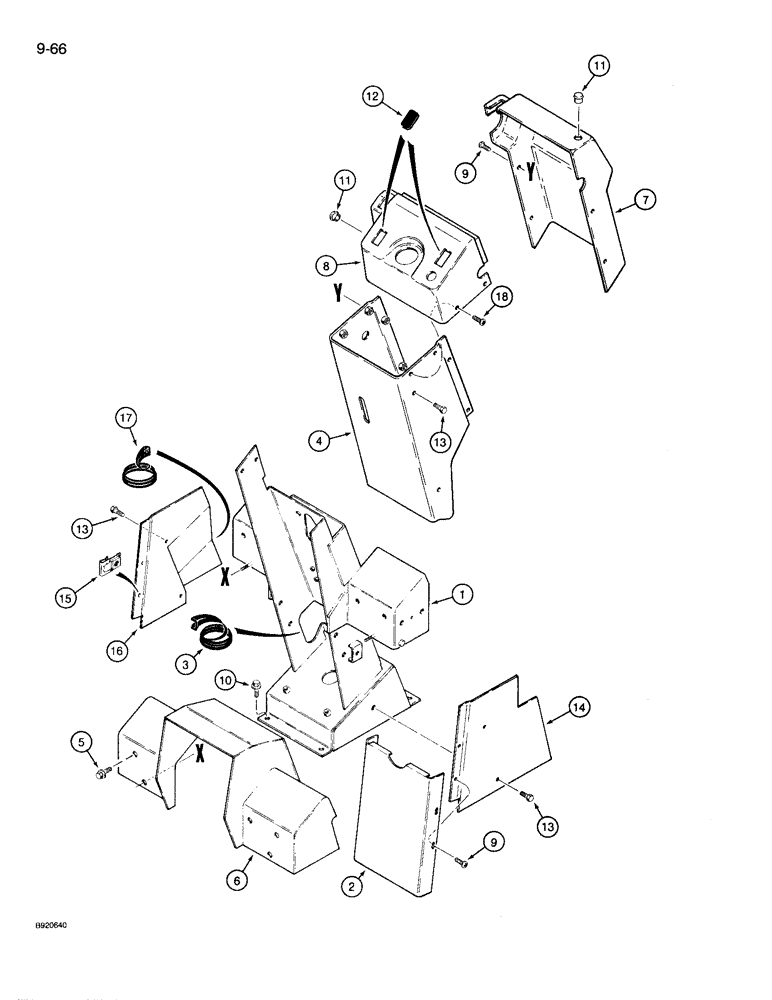

Запчасти Case 721 (9-066) - PEDESTAL AND COVERS, *P.I.N JAK0022758 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1970046C4

SUPPORT

BASE - pedestal

1шт.

2

1969910C2

COVER

- pedestal, lower center

1шт.

3

1970021C1

GROMMET

TRIM - flexible, pedestal

2шт.

4

1344080C3

COVER

- pedestal, covers upper rear and right-hand and left-hand sides

1шт.

5

100142A1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 3/4", Gr 5

Special Hex Wash Hd, 5/16"-18 x 3/4", G5

4шт.

6

1339987C1

COVER

- brake shaft

1шт.

7

1344379C1

COVER

- pedestal, steering column, front

1шт.

8

1344380C1

COVER

- steering column, rear, see Figure 4-16 for warning lamp and transmission speed selector control

1шт.

9

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - special, pan head Phillips, 1/4 NC x 3/4 inch

8шт.

10

1327799C2

FLANGE BOLT,Hex, 3/8" - 16 x 1.25", Gr 5, Coated

BOLT - special, 3/8 NC x 1-1/4 inch

4шт.

11

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch, if used

2шт.

12

245918C1

LENS

PLUG - rectangular, blanking, steering column cover

2шт.

13

113-32

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

8шт.

14

1969908C3

COVER

- pedestal, lower right-hand side

1шт.

15

131-873

NUT,Ret, J, 1/4"-20

- speed grip, 1/4 inch NC

4шт.

16

1970010C3

COVER

- pedestal, lower left-hand side

1шт.

17

D38500

LINING

TRIM - edge, 9-13/16 inch (249 mm) long, cut from F42827 bulk, see below

1шт.

18

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

SCREW - special, pan head Phillips, 1/4 NC x 1/2 inch

4шт.

F42827

TRIM,2946.4mm L

TRIM - 116 inch long

1шт.
