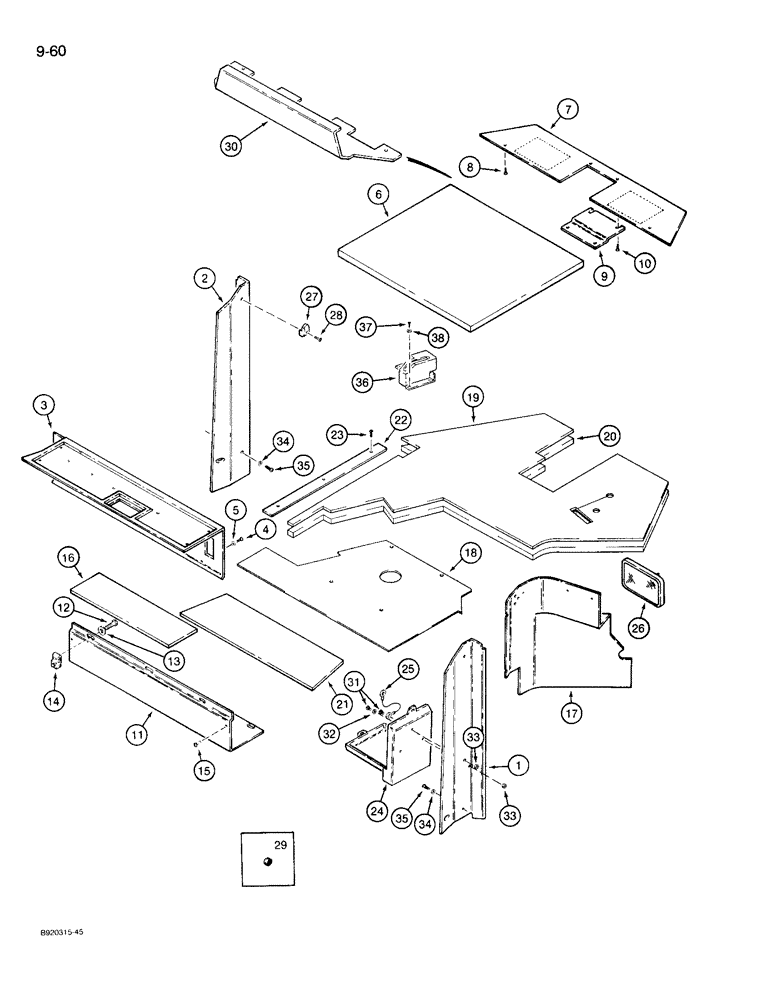

Запчасти Case 721 (9-060) - CAB INTERIOR, *P.I.N. JAK0022758 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1977561C4

PADDING

COVER - padded vinyl, right-hand rear

1шт.

2

1977562C3

COVER

- padded vinyl, left-hand rear

1шт.

3

1999768C1

COVER

- formed, rear deck

1шт.

4

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No. 10-16 x 3/4 inch, special

9шт.

5

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch, special

9шт.

6

1973533C2

PADDING

HEADLINER - padded vinyl, center

1шт.

7

1339946C4

PADDING

HEADLINER - padded vinyl, front

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - Phillips washer head, No. 10 - 16 x 3/4 inch

2шт.

9

1339883C1

COVER

- mounting, use on units without radio

1шт.

10

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

11

1339895C4

COVER

- rear enclosure, behind seat

1шт.

12

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW - special, 1/4 NC x 1 inch

3шт.

13

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch, special

3шт.

14

131-143

SPRING NUT,Tinn, U, #10-24

3шт.

15

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - pan Phillips head, No. 10-16 x 1/2 inch

2шт.

16

1339754C3

FOAM INSULATION

PAD - insulation, rear panel

1шт.

17

1339941C3

PADDING

COVER - padded vinyl, right-hand console

1шт.

18

1339951C2

MAT

FLOORMAT - seat support

1шт.

19

L128131

FLOOR MAT

FLOORMAT - cab

1шт.

20

L128133

FLOOR MAT

PAD - insulation, floormat

1шт.

21

1339755C4

NOISE PROTECTION

PAD - insulation, rear floor

1шт.

22

1339790C1

COVER

- seal channel

1шт.

23

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

3шт.

24

R46464

CASE

BOX - operators manual

1шт.

25

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

26

L74714

MIRROR

ASSEMBLY - rear view, includes mounting hardware

1шт.

27

1339771C1

COAT HOOK

HOOK - coat

2шт.

28

261-13716

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW - self-tapping, pan head Phillips, 1/4 NC x 1 inch

2шт.

29

353-404

PLUG,Dome, .500" hole, Nylon

Upper RH panel above window Dome, .500" hole, Nylon

1шт.

29

353-408

PLUG,Dome, .750" hole, Nylon

- nylon, 3/4 inch, cab floor, inside cab door

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

Seat pedestal, LH side Dome, 1.000" hole, Nylon

1шт.

30

1999753C1

PANEL

- front insulation, models with air conditioning

1шт.

31

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW - machine, pan head Phillips, No. 10 NC x 7/8 inch (Replaced 440-11014)

2шт.

32

495-11028

WASHER,1/4", SAE

- flat, 3/16 x 7/16 x 3/64 inch (Replaced 495-21019)

2шт.

33

225-14110

NUT,#10-24

2шт.

34

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch

2шт.

35

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - 1/4 NC x 3/4 inch, special

2шт.

36

101714A1

COVER

- lever, parking brake

1шт.

37

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - 1/4 NC x 3/4 inch, special

4шт.

38

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

4шт.
