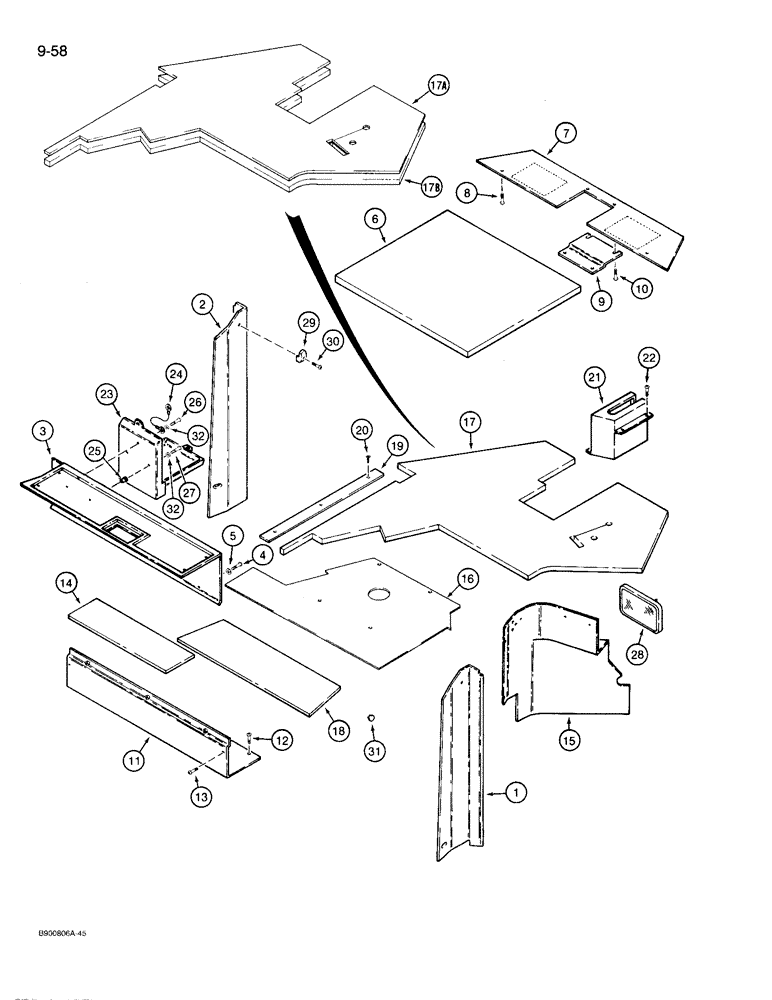

Запчасти Case 721 (9-058) - CAB INTERIOR, *PRIOR TO P.I.N. JAK0022758 (09) - CHASSIS/ATTACHMENTS

1

1977561C3

COVER

- padded vinyl, right-hand rear

1шт.

2

1977562C3

COVER

- padded vinyl, left-hand rear

1шт.

3

1977496C3

COVER

- formed, rear deck

1шт.

4

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

9шт.

5

1990503C1

WASHER

- finish

9шт.

6

1973533C2

PADDING

HEADLINER - padded vinyl, center

1шт.

7

1339946C4

PADDING

HEADLINER - padded vinyl, front

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - Phillips washer head, No. 10-16 x 3/4 inch

2шт.

9

1339883C1

COVER

- use on units without radio

1шт.

10

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

11

1977516C2

PADDING

COVER - rear enclosure, behind seat

1шт.

12

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

13

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - pan Phillips head, No. 10-16 x 1/2 inch

2шт.

14

1339754C2

NOISE PROTECTION

PAD - insulation, rear panel

1шт.

15

1339941C3

PADDING

COVER - padded vinyl, right-hand console

1шт.

16

1339951C2

MAT

FLOORMAT - seat support

1шт.

17

1339952C3

FLOOR MAT

FLOORMAT - cab, one-piece, no longer available, for service order L128131 floormat and L128133 pad, Refs. 17A and 17B

1шт.

17a

L128131

FLOOR MAT

FLOORMAT - cab, without pad

1шт.

17b

L128133

FLOOR MAT

PAD - floormat, used with L128131 floormat

1шт.

18

1339755C4

NOISE PROTECTION

PAD - insulation, rear floor

1шт.

19

1339790C1

COVER

- seal channel

1шт.

20

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

3шт.

21

97403C2

COVER

- lever, parking brake

1шт.

22

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

23

R46464

CASE

BOX - operators manual

1шт.

24

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

25

L60362

RING NUT

- well, No. 10 NF

2шт.

26

263-10512

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan head, N0. 10-16 x 3/4 inch

1шт.

27

490-11016

SCREW,Cross Pan Hd, #10-32 x 1"

- machine, pan Phillips head, No. 10 NF x 1 inch

2шт.

28

L74714

MIRROR

- rear view, includes mounting hardware

1шт.

29

1339771C1

COAT HOOK

HOOK - coat

2шт.

30

27911R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

SCREW - self-tapping, pan Phillips head, 1/4 NC x 1 inch

2шт.

31

353-404

PLUG,Dome, .500" hole, Nylon

Upper RH panel above window Dome, .500" hole, Nylon

1шт.

32

495-21019

WASHER,#8

3шт.
