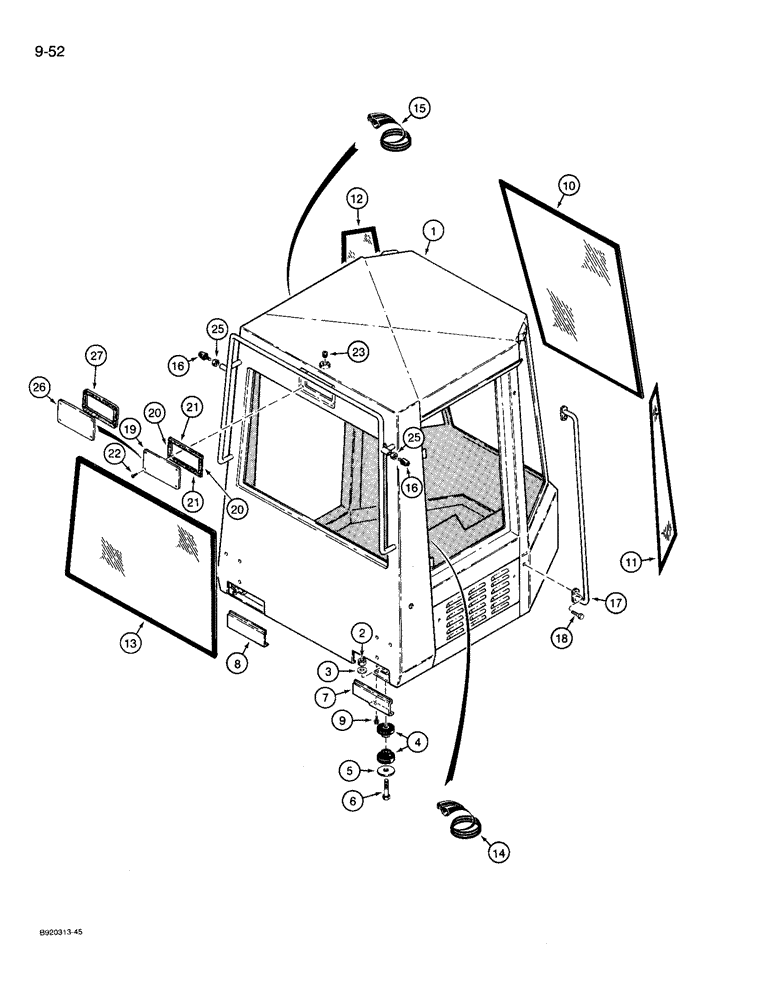

Запчасти Case 721 (9-052) - CAB MOUNTING AND GLASS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ASSEMBLY - ROPS, machinery item, order from Machinery Price List

1шт.

For current part numbers for service cabs and canopys see service bulletin

1шт.

NWL SB 003 95 in 721B catalog 8-9371R2 on Figure 9-56 - 9-96

1шт.

2

329-1014

NUT,7/8"-9, G8

4шт.

3

25549R1

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

4шт.

4

R54331

HITCH DAMPER

MOUNT - rubber, cab support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

SPACER - cab mounting

4шт.

6

326-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

4шт.

7

1977687C3

COVER

- rear, right-hand mounting access

1шт.

8

1339928C2

COVER

- rear, left-hand mounting access

1шт.

9

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

4шт.

10

1340422C2

WINDSHIELD

GLASS - front, center

1шт.

11

1340423C2

GLASS,CAB

GLASS - front, right-hand side

1шт.

12

1340421C2

GLASS,CAB

GLASS - front, left-hand side

1шт.

13

1340425C1

GLASS,CAB

GLASS - rear

1шт.

14

1344165C1

SEAL

SEAL - 3510 mm long, window, right-hand cab

1шт.

15

1987253C1

DOOR SEAL

- 4191 mm long, door, left-hand cab

1шт.

16

N7673

BUMPER

- rubber

2шт.

17

1339767C2

HANDLE

HANDRAIL - front

2шт.

18

113-2447

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

19

1339882C1

LARGE PLATE

COVER - rear wiper mounting hole, use on units without rear wipers, no longer available, order Ref. 26 cover

1шт.

20

1981920C1

WIPER SEAL

- 110 mm long, adhesive backed, cover, cut to length from Ref. 21, 1981919C1 seal, no longer available, order Ref. 27, one piece seal

2шт.

21

1981919C1

WIPER SEAL

- 260 mm long, adhesive backed, cover, no longer available, order Ref. 27, one piece seal

2шт.

22

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips head, 1/4 NC x 3/4 inch

4шт.

23

221-846

PLUG,Hex Soc, 1"-11 1/2

- square socket head, 1 inch PT, if used

1шт.

24

353-679

PLUG,Hex Soc, 1"-11 1/2 NPT

- pipe, hex socket, plastic, 1 inch PT, if used, replaces Ref. 27 on some models

1шт.

25

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

26

1344260C1

GASKET

COVER - rear wiper mounting hole, includes seal, use on units without rear wipers, Includes: Ref. 27

1шт.

27

1345074C1

GASKET,5mm Thk

- cover, one piece

1шт.

L302293 Special feature Sunvisors are used on some units.

1шт.
