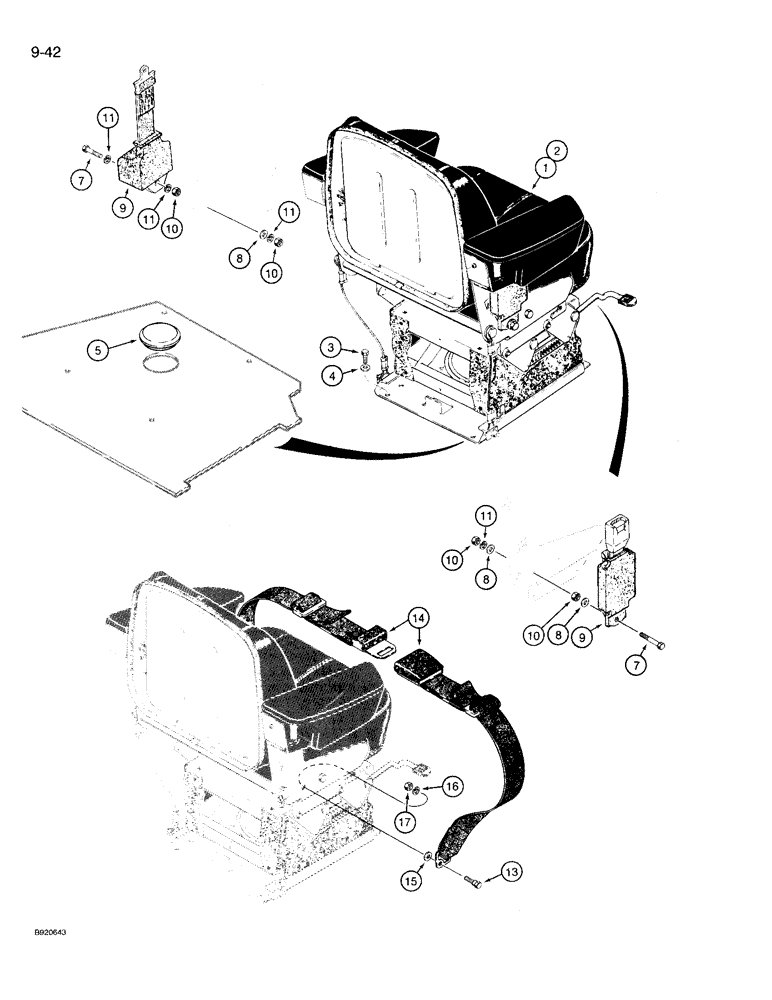

Запчасти Case 721 (9-042) - SEAT AND MOUNTING PARTS, SUSPENSION SEAT, SEAT MOUNTING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1954778C1
SEAT ASSY.
SEAT - suspension, vinyl, cab or canopy, parts list Figures 9-46 - 9-50
1шт.
2
97150C1
SEAT ASSY.
SEAT - suspension, cloth, cab only, parts list Figures 9-46 - 9-50
1шт.
3
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
4шт.
4
496-81003
WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk
- flat, 13/32 x 1-1/16 x 3/32 inch, hardened
4шт.
5
353-255
PLUG,3 1/2"
- button, 3-1/2 inch
1шт.
7
414-728
BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5
- hex, 7/16 NF x 1-3/4 inch, 2" (51mm) wide retractable seat belt
2шт.
8
495-21050
WASHER,7/16"
- flat, 1/2 x 1-1/4 x 5/64 inch, 2" (51mm) wide retractable seat belt
3шт.
9
R58339
SAFETY BELT ,2.00" W
Retractable, Standard 2.00" W
1шт.
10
425-117
NUT,7/16"-20, G5
- hex, 7/16 inch NF, 2" (51mm) wide retractable seat belt
4шт.
11
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, , 2 inch (51mm) wide retractable seat belt 7/16"
4шт.
7
414-728
BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5
- hex, 7/16 NF x 1-3/4 inch, 3" (76mm) wide retractable seat belt
2шт.
8
495-21050
WASHER,7/16"
- flat, 1/2 x 1-1/4 x 5/64 inch, 3" (76mm) wide retractable seat belt
3шт.
9
R58418
SAFETY BELT ,3.00" W
Retractable, Optional 3.00" W
1шт.
10
425-117
NUT,7/16"-20, G5
- hex, 7/16 inch NF, 3" (76mm) wide retractable seat belt
4шт.
11
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, , 3 inch (76mm) wide retractable seat belt 7/16"
4шт.
13
F42236
STEP BOLT
BOLT - shoulder, 7/16 NF x 1-1/4 inch, 3" (76mm) wide non-retractable seat belt
2шт.
14
D85816
SAFETY BELT
BELT - seat, non-retractable, 3 inch (76 mm) wide, optional
1шт.
15
495-21050
WASHER,7/16"
- flat, 1/2 x 1-1/4 x 5/64 inch, 3" (76mm) wide non-retractable seat belt
2шт.
16
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, , 3 inch (76mm) wide non-retractable seat belt 7/16"
2шт.
17
425-117
NUT,7/16"-20, G5
- hex, 7/16 inch NF, 3" (76mm) wide non-retractable seat belt
2шт.
Выбрано товаров: 20
