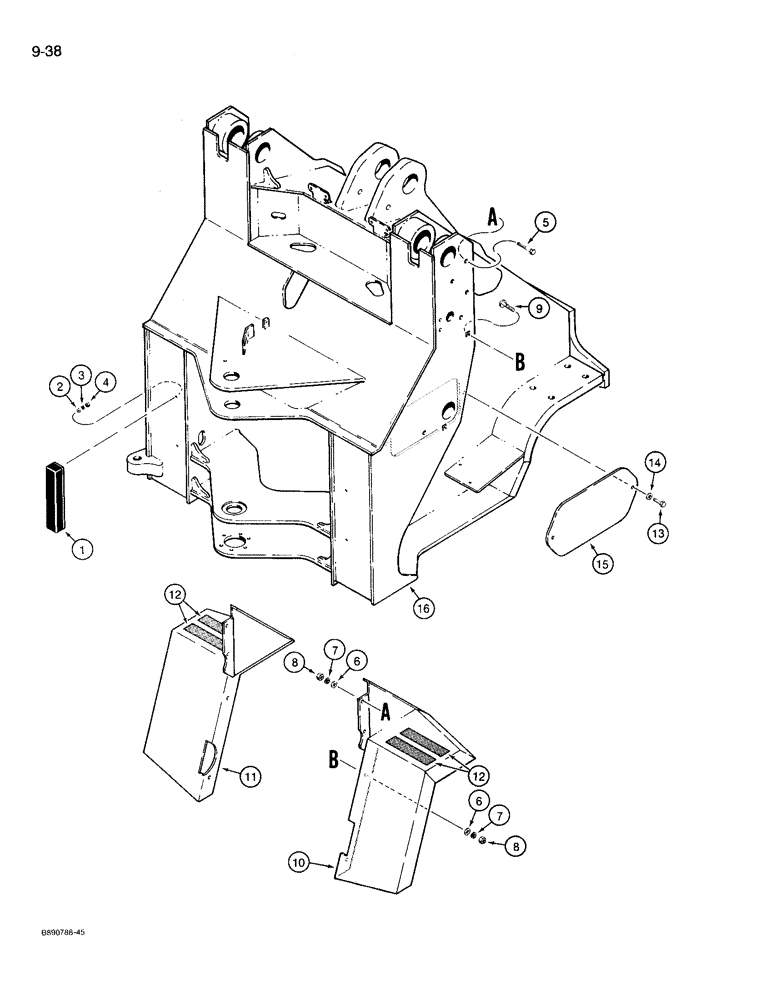

Запчасти Case 721 (9-038) - FRONT FRAME AND FENDERS (09) - CHASSIS/ATTACHMENTS

1

L127077

HITCH DAMPER

BUMPER - chassis

2шт.

2

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

8шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

9

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

4шт.

10

L128918

FENDER

- front, right-hand, replaced L126159

1шт.

11

L128922

FENDER

- front, left-hand, replaced L126160

1шт.

12

D55216

PAD,2" x 9"

PAD - non-skid, front fender

4шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

14

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

15

L119249

COVER

- access, front frame

2шт.

16

L127051

CHASSIS

FRAME - front chassis

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Replaces weld nuts used on frame, if used, not shown 1/2"-13, G5

1шт.

LIFT/TIE DOWN BRKTS AVAIL THRU WHOLEGOODS UNDER KIT L81108. KIT CONTAINS 4 BRKTS ALONG WITH DECALS AND INSTRUCTIONS.

1шт.
