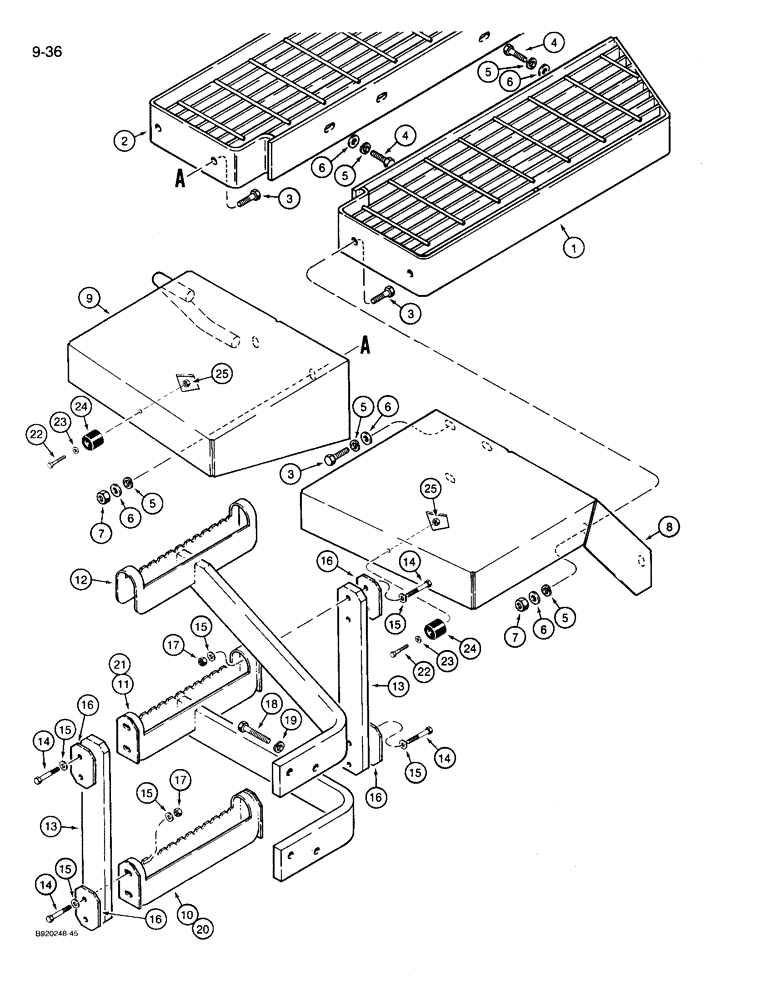

Запчасти Case 721 (9-036) - REAR FENDERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

L126892

GRATING

STEP - platform, right-hand, operators compartment

1шт.

2

L126950

STEP

- platform, left-hand, operators compartment

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

10шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

16шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

8

L128539

FENDER

- rear, right-hand, replaced L119206

1шт.

9

L128541

FENDER

- rear, left-hand, replaced L119217

1шт.

10

L119135

STEP

- lower, rear frame, no longer available, order Refs. 20 and 21 shown below

1шт.

11

L119128

STEP

- center, rear frame, no longer available, order Refs. 20 and 21 shown below

1шт.

12

L126167

STEP

- top, rear frame

1шт.

13

L126918

SUPPORT

STRAP - step hanger

2шт.

14

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

8шт.

15

495-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch, Used with Refs. 10 and 11 shown above

16шт.

16

L119133

LARGE PLATE

PLATE - support, attaches on outside of step hangers at center and lower steps

4шт.

17

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

8шт.

18

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20

L128543

STEP

- lower, rear frame

1шт.

21

L128544

STEP

- center, rear frame

1шт.

22

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

24

L126483

BUMPER

- door stop

2шт.

Per tech The only thing that holds out this bumper is a spacer 311070A1.

1шт.

25

131-461

LOCK NUT,1/4"-20

NUT - heavy hex, self-locking, 1/4 inch NC

2шт.
