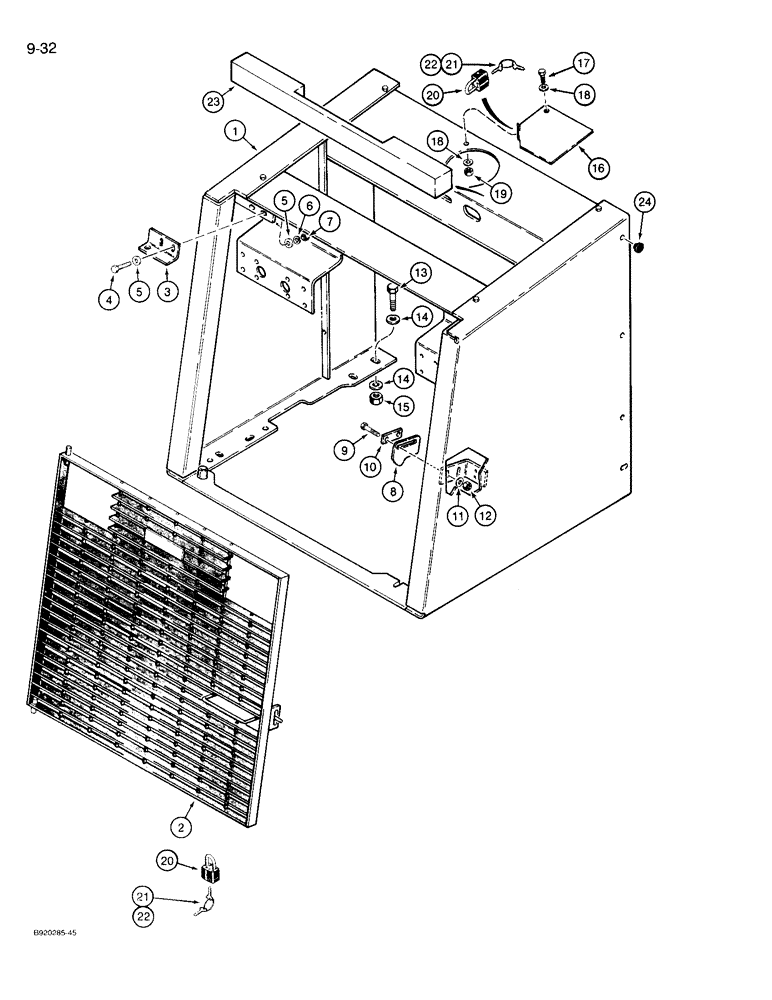

Запчасти Case 721 (9-032) - RADIATOR GUARD AND GRILLE, P.I.N. JAK0022432 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

L128102

GUARD ASSY.

GUARD - radiator, includes lamp brackets, Start Serial: JAK0022432

1шт.

2

L118925

SIEVE

GRILLE - radiator

1шт.

3

L118936

SUPPORT

BRACKET - upper grille support

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

L126920

LATCH

CATCH - lever, grille

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

10

L126841

LARGE PLATE

PLATE - support, lever catch

1шт.

11

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

12

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

13

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

14

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

8шт.

15

131-219

LOCK NUT

NUT - light hex, self-locking, 5/8 inch NC

4шт.

16

L126779

LARGE PLATE

PLATE - lockup, radiator

1шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

18

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

19

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

1шт.

20

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 21 and 22

2шт.

21

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

22

R29555

KEY

- for Master padlock only, if used

2шт.

23

L127462

SEAL

- air flow, adhesive backed, radiator, Serial Range: guard-hood

1шт.

24

L126856

RIVET

CUSHION - rubber, engine door

6шт.
