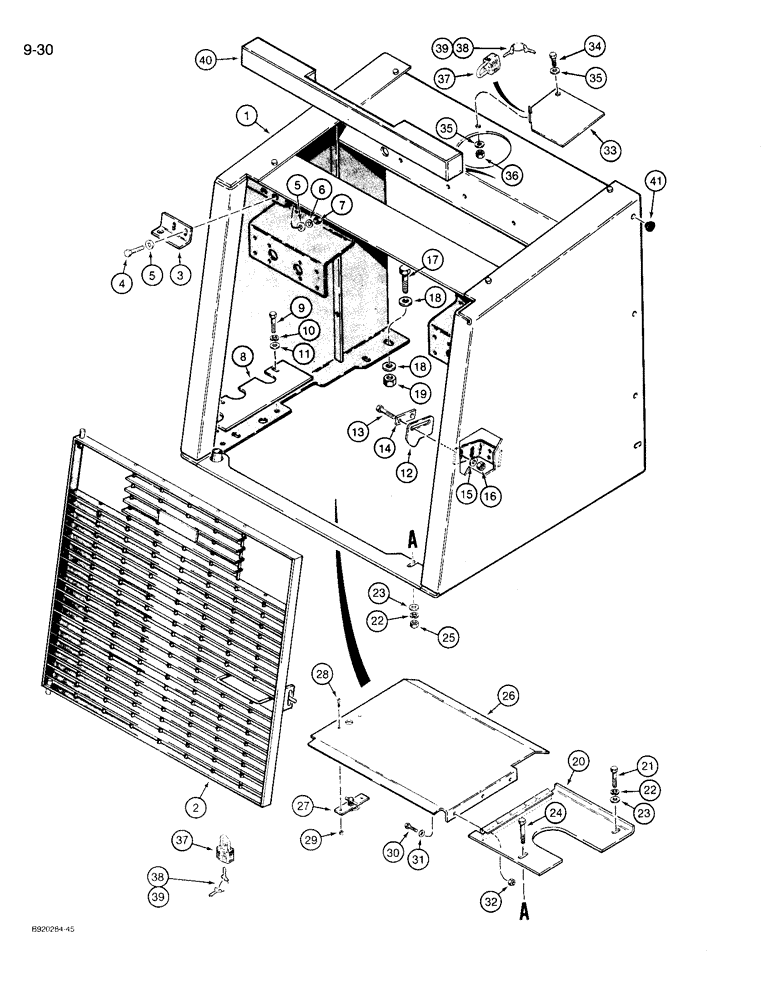

Запчасти Case 721 (9-030) - RADIATOR GUARD, GRILLE, AND BATTERY COVER, PRIOR TO P.I.N. JAK0022432 (09) - CHASSIS/ATTACHMENTS

1

L127701

GUARD

- radiator, includes lamp brackets

1шт.

2

L118925

SIEVE

GRILLE - radiator

1шт.

3

L118936

SUPPORT

BRACKET - upper grille support

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

L126278

SUPPORT

BRACKET - support, left-hand battery cover

1шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

12

L126920

LATCH

CATCH - lever, grille

1шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

14

L126841

LARGE PLATE

PLATE - support, lever catch

1шт.

15

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

16

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

17

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

18

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

8шт.

19

131-64

LOCK NUT,5/8"-11, GC

NUT - hex, self-locking, 5/8 inch NC

4шт.

20

L126281

SUPPORT

- battery cover, right-hand

1шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

24

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

26

L126279

COVER

- battery

1шт.

27

L102515

LATCH

- battery cover

1шт.

28

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

29

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

30

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4 NC x 3/4 inch

3шт.

31

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

32

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 5/16 inch

3шт.

33

L126779

LARGE PLATE

PLATE - lockup, radiator

1шт.

34

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

35

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

36

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

1шт.

37

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 38 and 39

2шт.

38

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

39

R29555

KEY

- for Master padlock only, if used

2шт.

40

L127462

SEAL

- air flow, adhesive backed, radiator, Serial Range: guard-hood

1шт.

41

L126856

RIVET

CUSHION - rubber, engine door

6шт.
