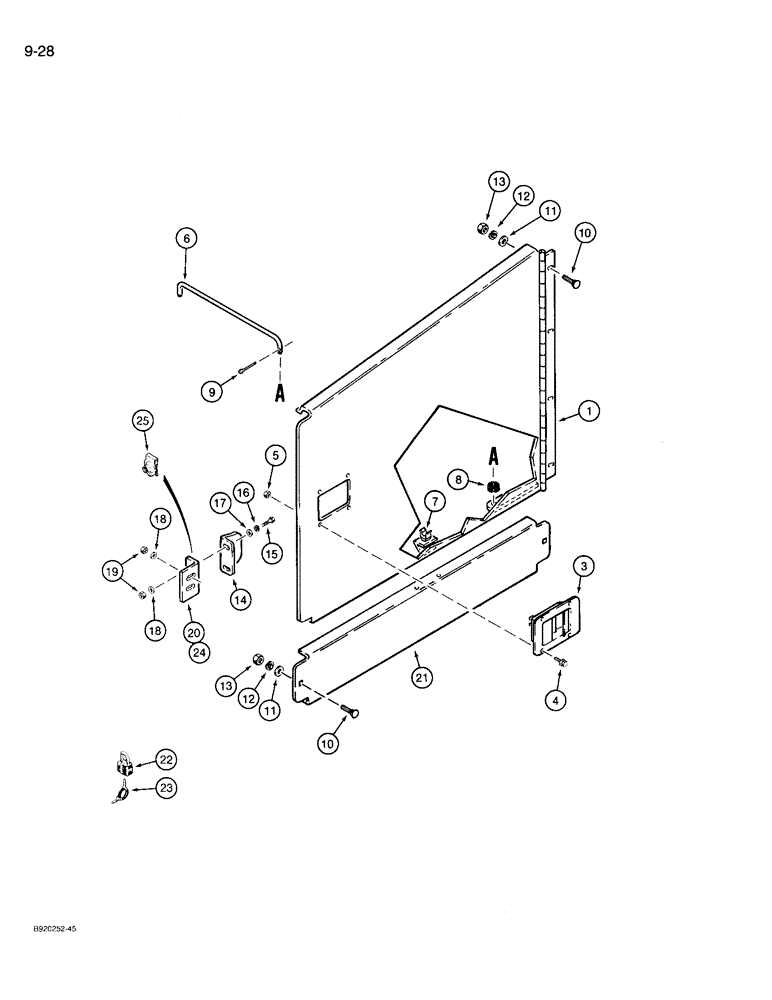

Запчасти Case 721 (9-028) - SIDE DOORS, P.I.N. JAK0022509 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

L127685

DOOR

- hood side, right-hand

1шт.

2

L127686

DOOR

- hood side, left-hand, not shown

1шт.

3

R56221

LATCH

HANDLE - door latching

2шт.

4

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

8шт.

5

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

8шт.

6

L128467

ROD

- door, open latching

2шт.

7

L128879

CLIP,ELECTRICAL

CLIP - rod stowage

2шт.

8

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- rod pivot

2шт.

9

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

10

33-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT - carriage, 3/8 NC x 1-1/4 inch

12шт.

11

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

12шт.

12

492-11038

LOCK WASHER,3/8"

12шт.

13

425-106

NUT,3/8"-16, Cl 5

12шт.

14

L127958

LARGE PLATE

CATCH - lever, door

2шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaced 413-512)

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

19

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

20

L127957

SUPPORT

BRACKET - catch, models with weld nuts on radiator guard

2шт.

21

L128574

COVER

PANEL - lower

2шт.

22

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 23

2шт.

23

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

23

R29555

KEY

- for Master padlock only, if used

2шт.

24

L127956

SUPPORT

BRACKET - catch, models without weld nuts on radiator guard

2шт.

25

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16 inch NC, used with Ref. 24, L127956 bracket

4шт.
