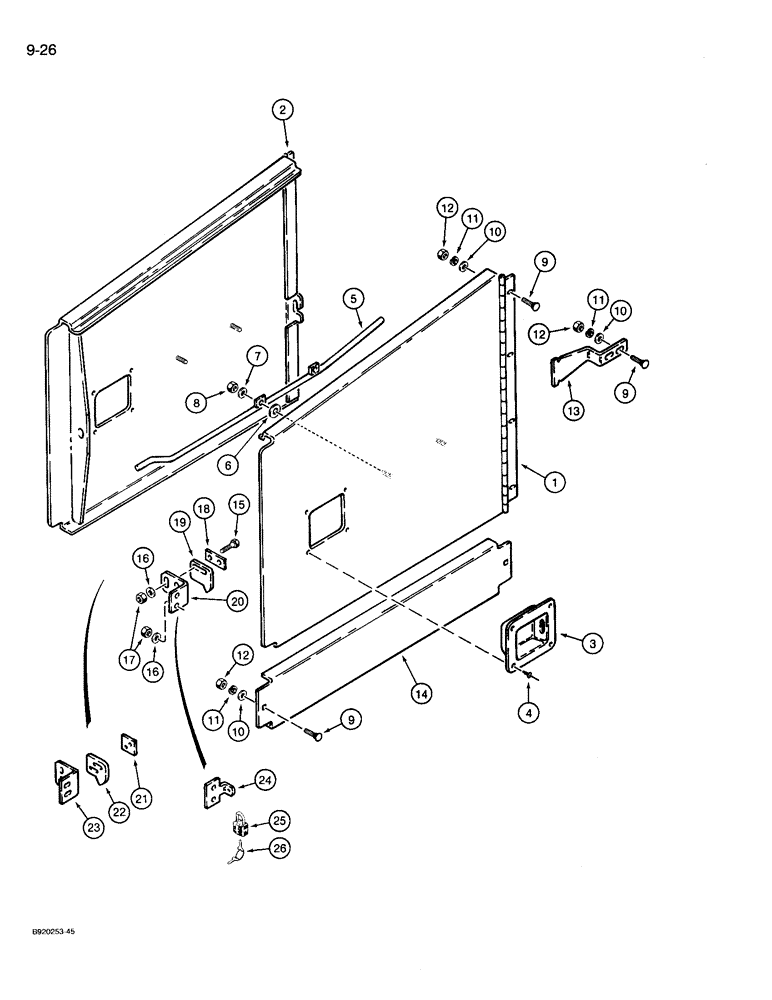

Запчасти Case 721 (9-026) - SIDE DOORS, PRIOR TO P.I.N. JAK0022509 (09) - CHASSIS/ATTACHMENTS

1

L119260

DOOR

- hood side, right-hand

1шт.

2

L119277

DOOR

- hood side, left-hand

1шт.

3

L118999

HANDLE

RETAINER - door rod

2шт.

4

151-558

RIVET,Pop, 3/16" x .450"

- pop, 3/16 x 1/2 inch

8шт.

5

L118908

ROD

- door latching

4шт.

6

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened, used as a spacer

4шт.

7

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

8

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

4шт.

9

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

16шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

16шт.

11

492-11038

LOCK WASHER,3/8"

16шт.

12

425-106

NUT,3/8"-16, Cl 5

16шт.

13

L126518

SUPPORT

BRACKET - door retainer

2шт.

14

L119282

COVER

PANEL - lower

2шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

16

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

8шт.

17

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

8шт.

18

L126841

LARGE PLATE

PLATE - support, lever catch, Serial Range: -JAK0022432

1шт.

19

L126920

LATCH

CATCH - lever, door\, Serial Range: -JAK0022432

2шт.

20

L118904

SUPPORT

BRACKET - catch, Serial Range: -JAK0022432

2шт.

21

L125742

PLATE

- support, lever catch, Serial Range: JAK0022432-JAK0022508

1шт.

22

L125730

CATCH

- lever, door, Serial Range: JAK0022432-JAK0022508

1шт.

23

L125745

BRACKET

- catch, Serial Range: JAK0022432-JAK0022508

1шт.

24

L126782

ANGLE BAR

BAR - lockup, door

2шт.

25

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 26

2шт.

26

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

26

R29555

KEY

- for Master padlock only, if used

2шт.
