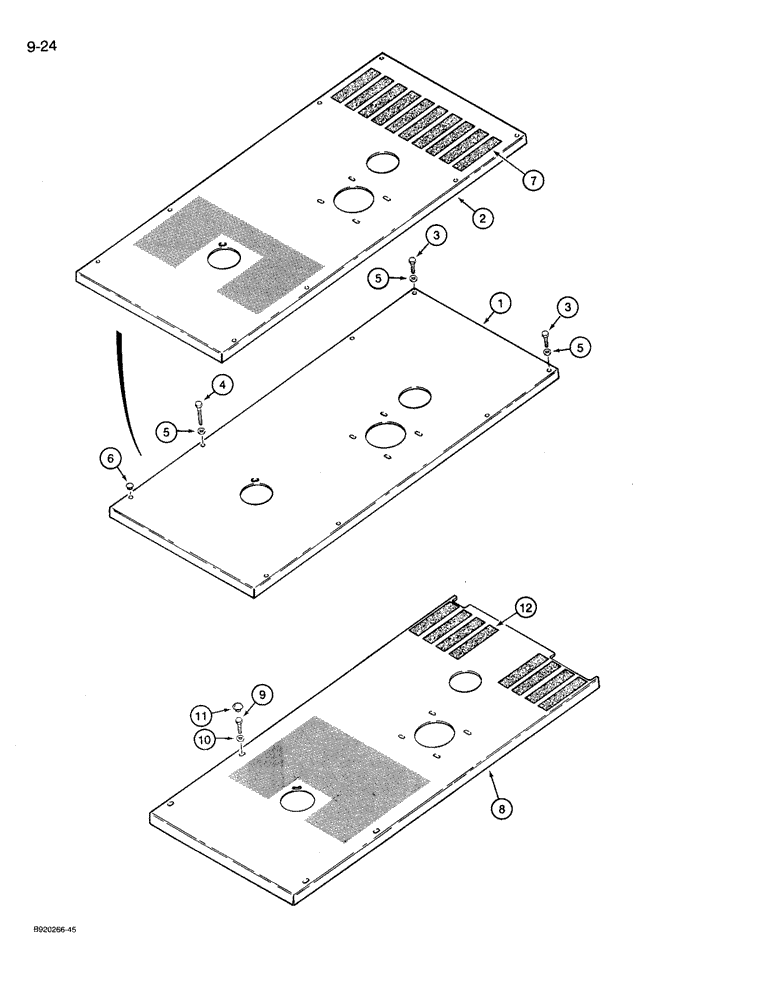

Запчасти Case 721 (9-024) - HOOD, MODELS WITHOUT AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

L127446

ENGINE HOOD

HOOD - engine top, no longer available, order Ref. 2, L128279

1шт.

2

L128279

HOOD

- engine top

1шт.

3

113-2262

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - hex, 3/8 NC x 1-1/2 inch, full thread

2шт.

4

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

6шт.

5

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 3/8 inch, hardened

8шт.

6

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16 inch

8шт.

7

D55216

PAD,2" x 9"

PAD - non-skid, upper hood, front

10шт.

8

L128281

HOOD

- engine top, use on units, models with air conditioning

1шт.

9

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

Models w/ air conditioning Hex, 3/8"-16 x 2 1/2", G5, Full Thd

4шт.

10

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 3/8 inch, hardened, models w/ air conditioning

4шт.

11

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16 inch, models w/ air conditioning

4шт.

12

D55216

PAD,2" x 9"

PAD - non-skid, upper hood, front, models w/ air conditioning

8шт.
