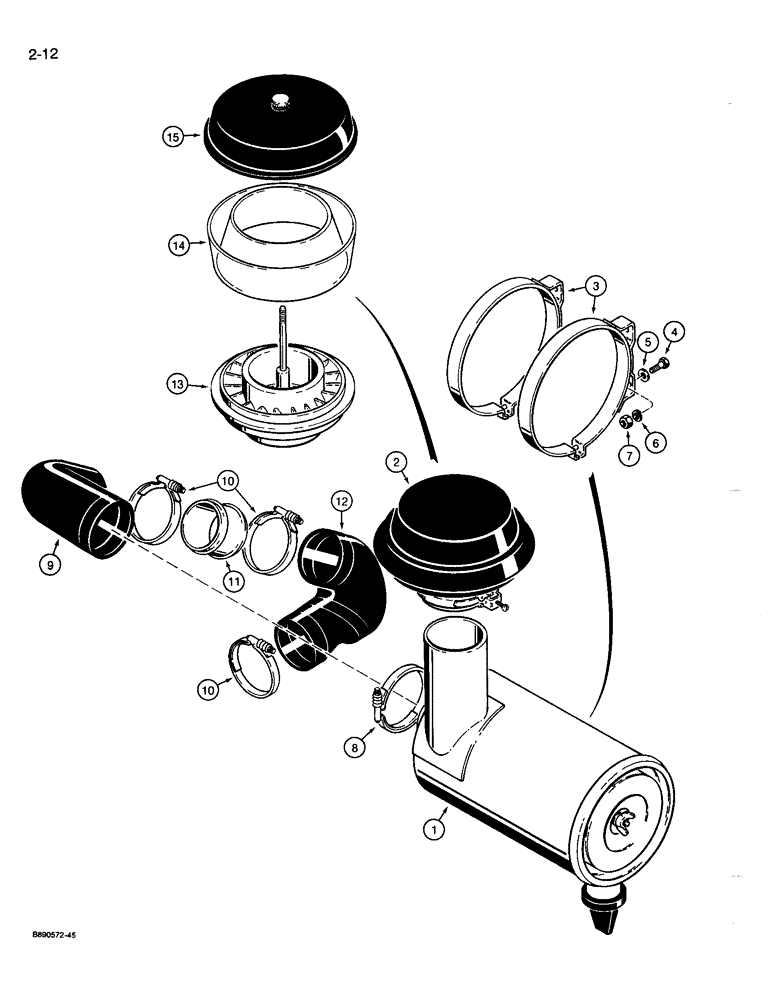

Запчасти Case 721 (2-12) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

A184506

FILTER ASSY

CLEANER ASSEMBLY - air, engine, parts list Figure 2-14

1шт.

2

L24689

CAP

- air cleaner, includes clamp

1шт.

3

S238773

CLAMP

BAND - air cleaner mounting

2шт.

4

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

L124802

COLLAR CLAMP

CLAMP - hose to air cleaner

1шт.

9

L127477

RADIATOR HOSE

- Air cleaner, Upper

1шт.

10

L127771

CLAMP,107.95mm - 130.18mm

- hose

3шт.

11

L127479

TUBE,101.6 mm OD x 66.7 mm L

- air cleaner

1шт.

12

L127556

ELBOW

- at turbocharger

1шт.

R48592

PRECLEANER

ASSEMBLY - air cleaner, if used, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

14

L30671

HOUSING

BOWL - precleaner

1шт.

15

L30669

COVER

- precleaner

1шт.
