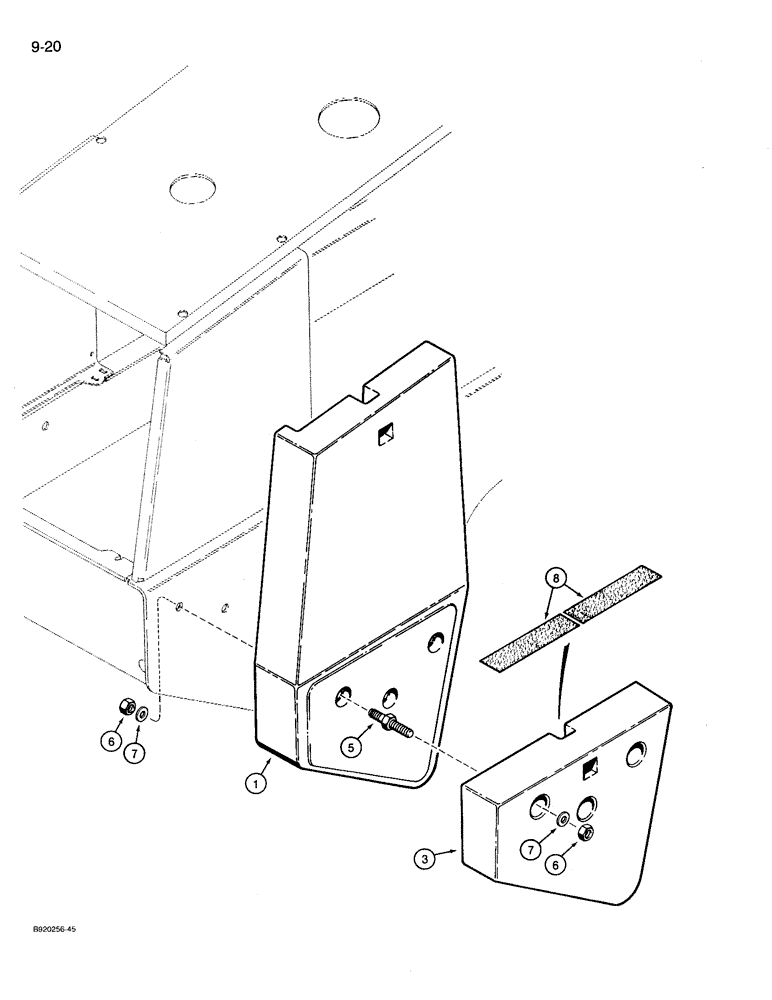

Запчасти Case 721 (9-020) - COUNTERWEIGHTS, 3400 POUND TOTAL WEIGHT (09) - CHASSIS/ATTACHMENTS

1

L125464

BALANCER

COUNTERWEIGHT - 1200 pound, right-hand rear

1шт.

2

L125465

BALANCER

COUNTERWEIGHT - 1200 pound, left-hand rear, not shown

1шт.

3

L125468

BALANCER

COUNTERWEIGHT - 500 pound, right-hand rear

1шт.

4

L125469

BALANCER

COUNTERWEIGHT - 500 pound, left-hand rear, not shown

1шт.

5

L129901

STUD

- counterweight, replaced L125463

6шт.

6

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

12шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, 1-1/16 x 1-7/8 x 9/64 inch, hardened

12шт.

8

S243101

WEAR PAD

PAD - non-skid, counterweight

4шт.
