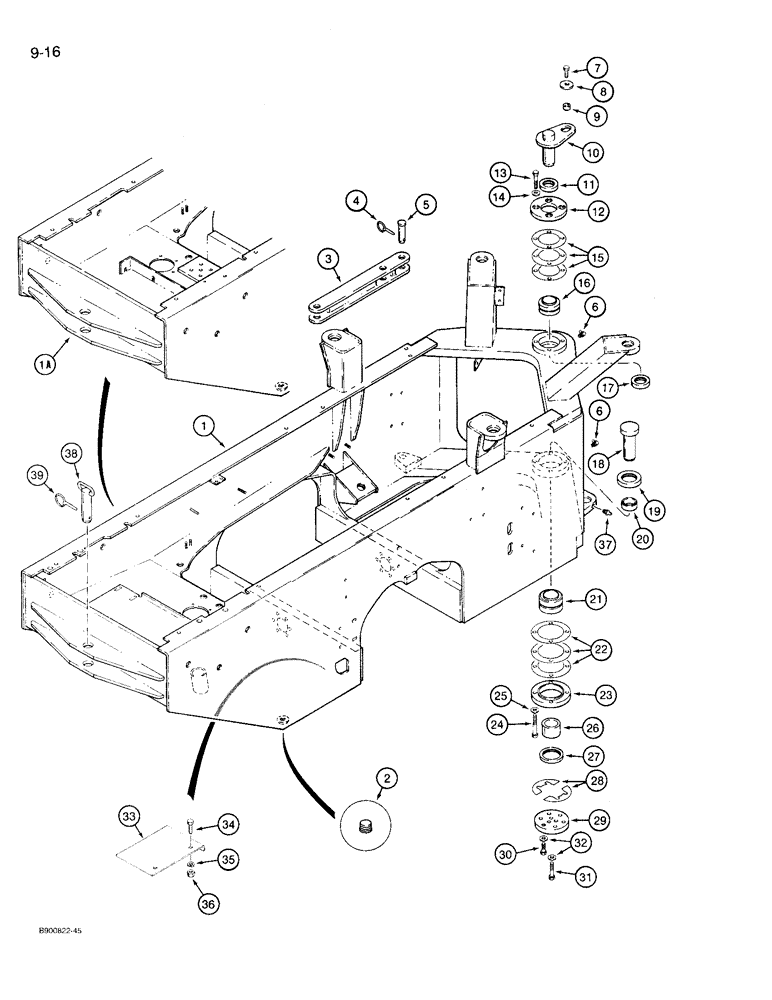

Запчасти Case 721 (9-016) - REAR FRAME AND PIVOT (09) - CHASSIS/ATTACHMENTS

1

L127258

CHASSIS

FRAME - rear, includes fuel tank, Includes: Ref. 2, Serial Range: -JAK0022432

1шт.

1a

L128064

CHASSIS

FRAME - rear, includes fuel tank, Includes: Ref. 2, Serial Range: JAK0022432-JAK0022758

1шт.

1b

L129946

CHASSIS

FRAME - rear, includes fuel tank, not shown, Includes: Ref. 2, Start Serial: JAK0022758

1шт.

2

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4 inch male PT, L127258 or L128064 frame

1шт.

3

L124505

PITMAN ASSY.

LINK - transport/service

1шт.

4

A30338

PIN

- klik

2шт.

5

A164277

PIN,31.75mm OD x 107.95mm L

- lock, transport/service link

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

7

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

8

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, 21/32 x 2-1/2 x 11/64 inch, hardened

1шт.

9

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- upper pin

1шт.

10

L118861

HANDLED SHAFT

PIN - upper pivot

1шт.

11

L118973

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

- upper, upper articulation plate

1шт.

12

L118901

COVER

RETAINER - upper pivot bearing

1шт.

13

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

4шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

15

L118987

SHIM,0.1mm Thk

Upper pivot 0.1mm Thk

1шт.

15

L119202

SHIM,0.25mm Thk

Upper pivot 0.25mm Thk

1шт.

15

L118986

SHIM,0.5mm Thk

Upper pivot (.020") 0.5mm Thk

1шт.

16

L118856

TAPERED BEARING,57.15mm ID x 100mm OD x 42mm W

BEARING - upper pivot

1шт.

17

L126169

SEAL,57.15mm ID x 89.03mm OD x 12.7mm Thk

- lower, upper articulation plate

1шт.

18

L118857

PIVOT PIN,63.48mm OD x 191.75mm L

PIN - lower pivot

1шт.

19

L118978

SEAL,79.38mm ID x 108.05mm OD x 12.7mm Thk

- upper, lower pivot

1шт.

20

L118862

SPACER,63.55mm ID x 79.4mm OD x 28.6mm L

- upper, lower pivot bearing

1шт.

21

L118868

TAPERED BEARING,63.51mm ID x 122.24mm OD x 76.71mm W

BEARING - lower pivot

1шт.

22

L118990

SHIM,124mm ID x 190mm OD x 0.11mm Thk

Lower pivot 0.1mm Thk

1шт.

22

L119203

SHIM,124mm ID x 190mm OD x 0.28mm Thk

- lower pivot, .010 inch thick

1шт.

22

L118989

SHIM,124mm ID x 190mm OD x 0.54mm Thk

Lower pivot 0.5mm Thk

1шт.

23

L118902

COVER

RETAINER - lower pivot bearing

1шт.

24

326-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

4шт.

25

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

26

L118858

SPACER,63.54mm ID x 79.4mm OD x 56.45mm L

- lower, lower pivot bearing

1шт.

27

L126168

SEAL,79.38mm ID x 108.05mm OD x 11.89mm Thk

- lower, lower pivot

1шт.

28

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

One half, Lower plate 0.1mm Thk

1шт.

28

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

One half, Lower plate 0.25mm Thk

1шт.

28

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

One half; Lower plate 0.5mm Thk

1шт.

29

L128375

PLATE

- lower pin

1шт.

30

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

31

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

3шт.

32

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

9шт.

33

L126370

LARGE PLATE

GUARD - air dryer, attaches to rear frame

1шт.

34

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

2шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

36

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

38

L104989

STOP

PIN - drawbar, if used

1шт.

39

D33805

PIN

- lock, if used

1шт.

STEERING ANCHOR WELDMENT WHERE REF 37 GREASE FTG GOES IS L118815.

1шт.

Ref. 23 is a press fit (no threads)

1шт.
