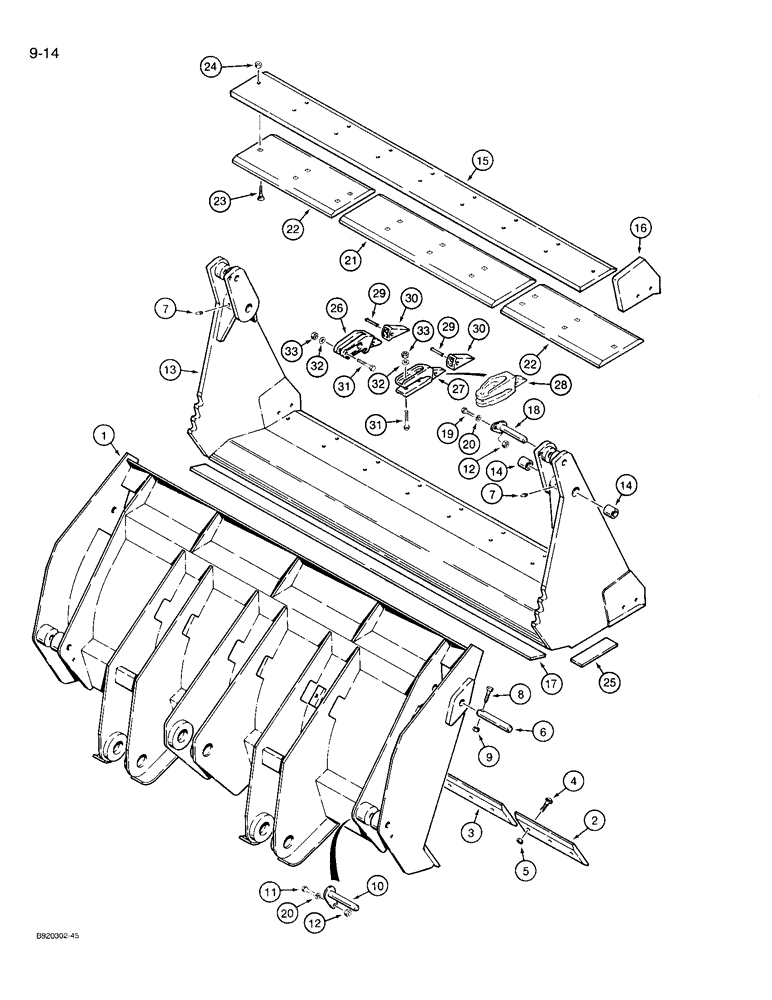

Запчасти Case 721 (9-014) - AUXILIARY (CLAM) BUCKET (09) - CHASSIS/ATTACHMENTS

L127210

BUCKET

ASSEMBLY - clam, 2-1/2 cubic yard, machinery item, order from Machinery Price List, includes Refs. 1 - 15 on Figure 8-16 or 8-18, see note below, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

S300145

EDGE, CUTTING

EDGE - cutting, outer ( 18" Long )

2шт.

3

S300772

EDGE, CUTTING

EDGE - cutting, center

1шт.

4

118-509

PLOW BOLT,3/4"-10 x 2", G8

BOLT - plow, 3/4 NC x 2 inch, grade 8

17шт.

5

329-1012

NUT,3/4"-10, G8

17шт.

6

S300141

PIVOT PIN

PIN, PIVOT -, Serial Range: Clam-blade

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

2шт.

8

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex head, 1/2 NC x 3-1/2 inch

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

S300143

PIN

- Cylinder mounting, lower

2шт.

11

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

181806A1

CLAW

CLAM - bucket (Replaced NSS), Includes: Ref. 14

1шт.

14

S300154

BUSHING

- clam

4шт.

15

S300774

EDGE, CUTTING

EDGE - cutting, clam, weld on, front

1шт.

16

S300157

EDGE, CUTTING

BRACE - corner

2шт.

17

S300773

LARGE PLATE

PLATE - compaction, rear

1шт.

18

S300142

PIN

- Cylinder mounting, upper

2шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

L127038

EDGE, CUTTING

EDGE - cutting, center, bolt on, bucket wear plates

1шт.

22

L127429

EDGE, CUTTING

EDGE - cutting, end, bolt on, bucket wear plates

2шт.

23

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

BOLT - plow, 3/4 NC x 3 inch, grade 8, bolt-on cutting edge and bucket wear plates

16шт.

24

129-572

NUT,3/4"-10, G8

Bolt-on cutting edge and bucket wear plates 3/4"-10, G8

16шт.

25

L129482

LARGE PLATE

PLATE - wear, bolt-on cutting edge and bucket

5шт.

L126938

TOOTH

ASSEMBLY - bucket, corner, Includes: Ref. 26 - 30

2шт.

L117816

TOOTH

ASSEMBLY - bucket, center, forged tooth shank, no longer available, order L129666 tooth assembly, Includes: Ref. 26 - 30

7шт.

L129666

TOOTH

ASSEMBLY - bucket, center, cast tooth shank, Includes: Ref. 26 - 30

7шт.

26

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner, L126938 tooth assembly

1шт.

27

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center, L117816 tooth assembly

1шт.

28

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center, L129666 tooth assembly

1шт.

29

L32090

PIN

PIN - flex, point retaining, bucket tooth

1шт.

30

D55468

TOOTH

- tooth

1шт.

31

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- hex, 3/4 NC x 3-3/4 inch, grade 8, used with L117816 tooth assembly, bucket

18шт.

31

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, grade 8, used with L129666 tooth assembly, bucket

18шт.

32

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened, bucket tooth

18шт.

33

25-1612

NUT,3/4"-10, G5, Hvy

- hex, 3/4 inch NC, grade 8, bucket tooth

18шт.
