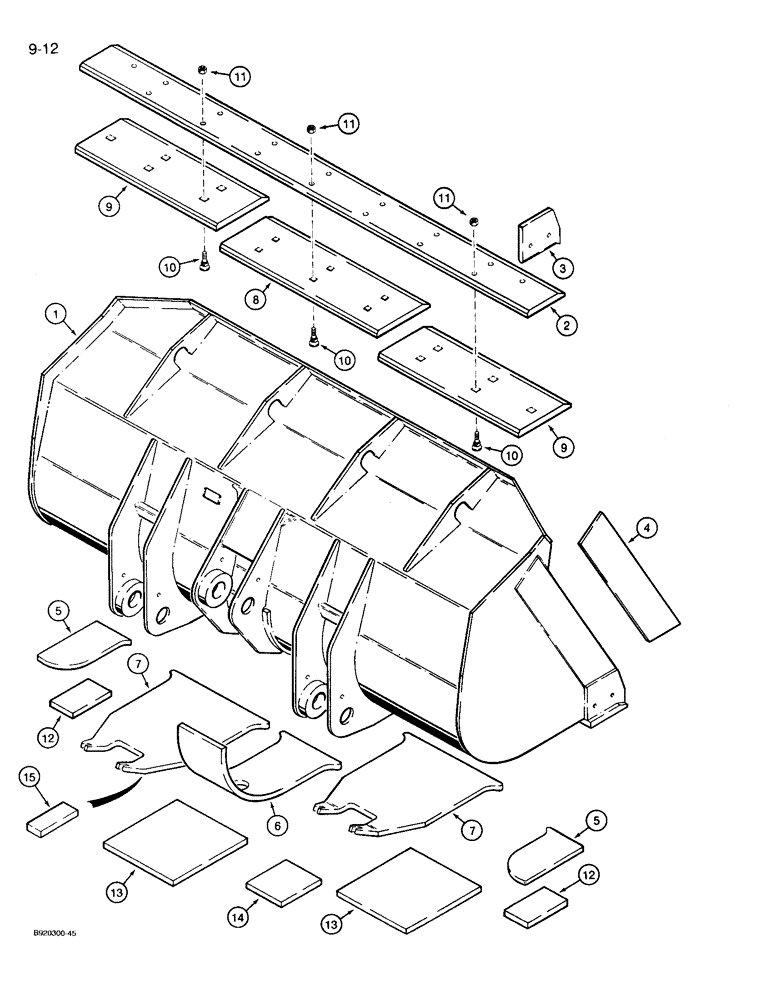

Запчасти Case 721 (9-012) - LOADER BUCKET AND CUTTING EDGES, 3.25 CUBIC YARD BUCKET 3.25 CUBIC YARD (2.5 CUBIC METRE) BUCKET (09) - CHASSIS/ATTACHMENTS

131739A1

BUCKET

ASSEMBLY - loader, machinery item, order from Machinery Price List (Replaced L127542) Bucket, Includes: Ref. 1 - 7

1шт.

Bucket teeth are not supplied for the 3.25 cubic yard bucket.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L127427

EDGE, CUTTING

EDGE - cutting, bucket, weld on

1шт.

3

L126115

EDGE, CUTTING

EDGE - cutting, bucket corner, weld on

2шт.

4

L127617

EDGE, CUTTING

EDGE - cutting, bucket side, weld on

2шт.

5

L125741

LARGE PLATE

PLATE - wear, outer

2шт.

6

L127614

STIFFENER

PLATE - wear, center

1шт.

7

L127615

LARGE PLATE

PLATE - wear, bucket ear

2шт.

8

L127038

EDGE, CUTTING

EDGE - cutting, center, bolt on, bucket wear plates

1шт.

9

L127429

EDGE, CUTTING

EDGE - cutting, end, bolt on, bucket wear plates

2шт.

10

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

BOLT - plow, 3/4 NC x 3 inch, grade 8, bolt-on cutting edge and bucket wear plates

16шт.

11

129-572

NUT,3/4"-10, G8

Bolt-on cutting edge and bucket wear plates 3/4"-10, G8

16шт.

12

L127045

LARGE PLATE

PLATE - wear, outer, bolt-on cutting edge and bucket

2шт.

13

L127046

LARGE PLATE

PLATE - wear, bucket ear, bolt-on cutting edge

2шт.

14

L127047

LARGE PLATE

PLATE - wear, center, bolt-on cutting edge and bucket

1шт.

15

L128081

LARGE PLATE

PLATE - wear, replaces Refs. 12, 13, and 14 on some models, bolt-on cutting edge and bucket

6шт.
