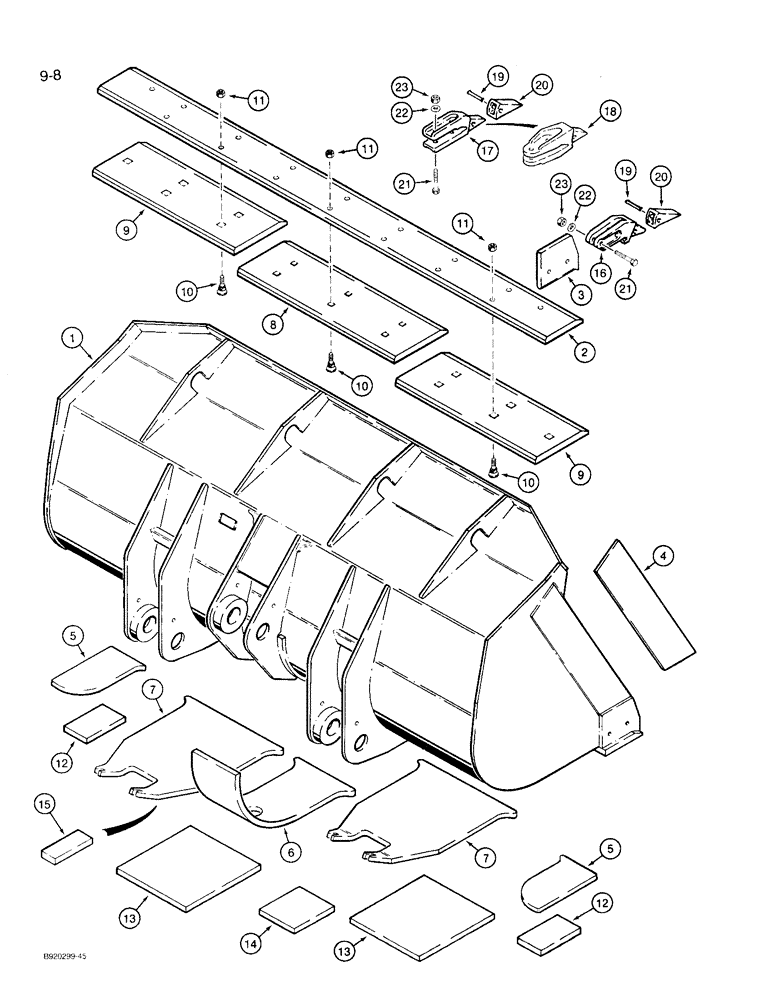

Запчасти Case 721 (9-008) - LOADER BUCKET AND CUTTING EDGES, 2.5 CUBIC YARD BUCKET, 2.5 CUBIC YARD (1.9 CUBIC METRE) BUCKET (09) - CHASSIS/ATTACHMENTS

130257A1

BUCKET

ASSEMBLY - loader, machinery item, order from Machinery Price List (Replaced L127460) Bucket Assy, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L127427

EDGE, CUTTING

EDGE - cutting, bucket, weld on

1шт.

3

L126115

EDGE, CUTTING

EDGE - cutting, bucket corner, weld on

2шт.

4

L127472

EDGE, CUTTING

EDGE - cutting, bucket side, weld on

2шт.

5

L127468

LARGE PLATE

PLATE - wear, outer

2шт.

6

L127470

STIFFENER

PLATE - wear, center

1шт.

7

L127469

LARGE PLATE

PLATE - wear, bucket ear

2шт.

8

L127038

EDGE, CUTTING

EDGE - cutting, center, bolt on, bucket wear plates

1шт.

9

L127429

EDGE, CUTTING

EDGE - cutting, end, bolt on, bucket wear plates

2шт.

10

L127054

PLOW BOLT,#3, Dome Hd, 3/4" - 10 x 3", Gr 8

BOLT - plow, 3/4 NC x 3 inch, grade 8, bolt-on cutting edge and bucket wear plates

16шт.

11

129-572

NUT,3/4"-10, G8

Bolt-on cutting edge and bucket wear plates 3/4"-10, G8

16шт.

12

L127045

LARGE PLATE

PLATE - wear, outer, if used, bolt-on cutting edge and bucket

2шт.

13

L127046

LARGE PLATE

PLATE - wear, bucket ear, if used, bolt-on cutting edge

2шт.

14

L127047

LARGE PLATE

PLATE - wear, center, if used, bolt-on cutting edge & bucket

1шт.

15

L128081

LARGE PLATE

PLATE - wear, replaces Refs. 12, 13, and 14 on some models, bolt-on cutting edge and bucket wear

6шт.

L126938

TOOTH

ASSEMBLY - bucket, corner, Includes: Ref. 16 - 20

2шт.

L117816

TOOTH

ASSEMBLY - bucket, center, forged tooth shank, no longer available, order L129666 tooth assembly, Includes: Ref. 16 - 20

7шт.

L129666

TOOTH

ASSEMBLY - bucket, center, cast tooth shank, Includes: Ref. 16 - 20

7шт.

16

NSS

NOT SOLD SEPARAT

TOOTH - bucket, corner, L126938 tooth assembly

1шт.

17

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center, L117816 tooth assembly

1шт.

18

NSS

NOT SOLD SEPARAT

TOOTH - bucket, center, L129666 tooth assembly

1шт.

19

L32090

PIN

PIN - flex, point retaining, bucket teeth

1шт.

20

D55468

TOOTH

- tooth, bucket

1шт.

21

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

- hex, 3/4 NC x 3-3/4 inch, grade 8, used with L117816 tooth assembly, bucket

18шт.

21

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, grade 8, used with L129666 tooth assembly, bucket

18шт.

22

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened, bucket teeth

18шт.

23

25-1612

NUT,3/4"-10, G5, Hvy

- hex, 3/4 inch NC, grade 8, bucket teeth

18шт.
