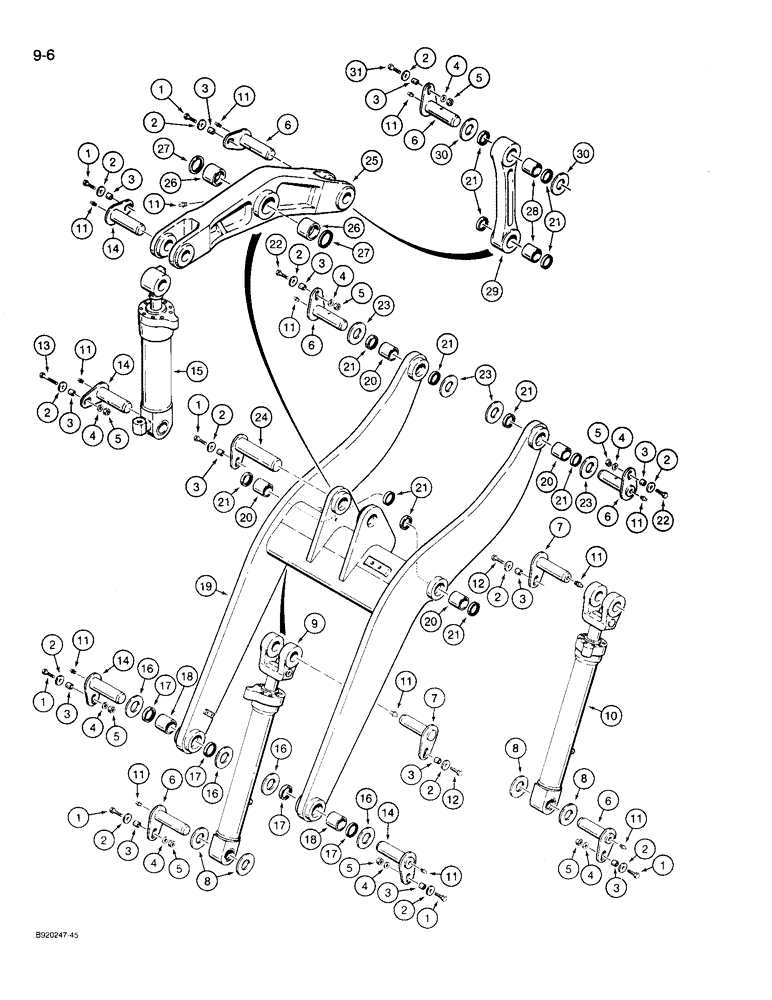

Запчасти Case 721 (9-006) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

1

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

7шт.

2

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special, hardened

13шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

- pin mounting

13шт.

4

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch, if used

8шт.

5

131-219

LOCK NUT

NUT - light hex, self-locking, 5/8 inch NC

8шт.

6

L128351

PIVOT PIN

PIN - 249 mm long, pivot

6шт.

7

L127118

HANDLED SHAFT

PIN - 229 mm long, pivot

2шт.

8

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

- flat, 77.5 x 152 x 2.5 mm

4шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, left-hand, see Figure 8-42 for correct assembly and components

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, right-hand, see Figure 8-42 for correct assembly and components

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

13шт.

12

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

13

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

14

L118674

PIVOT PIN

PIN - 255 mm long, pivot

4шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, see Figure 8-44 for correct assembly and components

1шт.

16

L129131

WASHER,83.8mm ID x 152mm OD x 3.02mm Thk

- flat, wear, special

4шт.

17

L128725

SEAL,82.55mm ID x 95.38mm OD x 7.9mm Thk

- loader lift, Serial Range: frame-chassis

4шт.

L126785

DIPPER

FRAME ASSEMBLY - loader lift, Includes: Ref. 18 - 20

1шт.

18

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- loader lift frame, at chassis

2шт.

19

NSS

NOT SOLD SEPARAT

FRAME - loader lift

1шт.

20

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- loader lift frame, at lift cylinder and bucket

4шт.

21

L128724

SEAL

- wiper

12шт.

22

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

2шт.

23

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

- flat, 77.5 x 152 x 3.5 mm

1шт.

24

L118672

PIVOT PIN

PIN - 345 mm long, pivot

1шт.

L126716

LINKAGE YOKE

BELLCRANK ASSEMBLY - loader bucket, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

BELLCRANK - loader bucket

1шт.

26

L118709

BUSHING,95.42mm ID x 111.25mm OD x 82mm L

- Bellcrank

2шт.

27

L118750

SEAL,92.71mm ID x 111.25mm OD x 7.95mm Thk

- wiper, bellcrank pivot

2шт.

L118759

PITMAN ASSY.

LINK ASSEMBLY - bucket dump, Includes: Ref. 28 and 29

1шт.

28

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- loader bucket dump link

2шт.

29

NSS

NOT SOLD SEPARAT

LINK - loader bucket dump

1шт.

30

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

- flat, 77.5 x 152 x 3.5 mm

2шт.

31

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.
