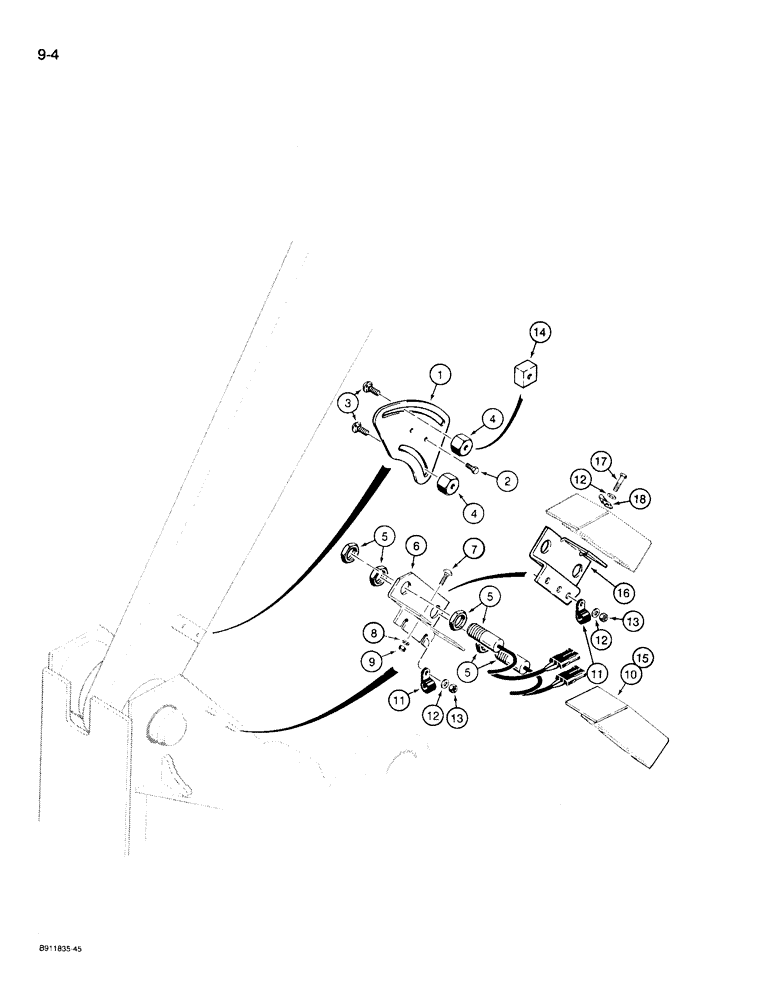

Запчасти Case 721 (9-004) - LOADER BUCKET HEIGHT CONTROL AND, RETURN-TO-TRANSPORT (09) - CHASSIS/ATTACHMENTS

1

L124660

PLATE

- mounting, actuator switches

1шт.

2

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

3

111-512

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2

BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2

2шт.

4

L123924

ACTIVATOR

ACTUATOR - switch, proximity, no longer available, order Ref. 14, L125976 actuator

2шт.

5

1546498C1

SWITCH

- proximity, includes nuts, height control and, Serial Range: return-transport

2шт.

6

L126729

SUPPORT

BRACKET - mounting, proximity switches, if used

1шт.

7

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , If used Short NK, 3/8"-16 x 1", G2

2шт.

8

492-11038

LOCK WASHER,3/8"

if used 3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

2шт.

10

L126730

COVER

- proximity switches, use with Ref. 6, L126729, bracket

1шт.

11

49845

CLAMP

- harness, front

1шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2-4шт.

13

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2-4шт.

14

L125976

SWITCH

ACTUATOR - switch, proximity

2шт.

15

L125258

COVER

- proximity switches, use with Ref. 16, L128899, bracket

1шт.

16

L128899

SUPPORT

BRACKET - mounting, proximity switches, if used

1шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

18

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, , If used Ret, J, 3/8"-16

2шт.
