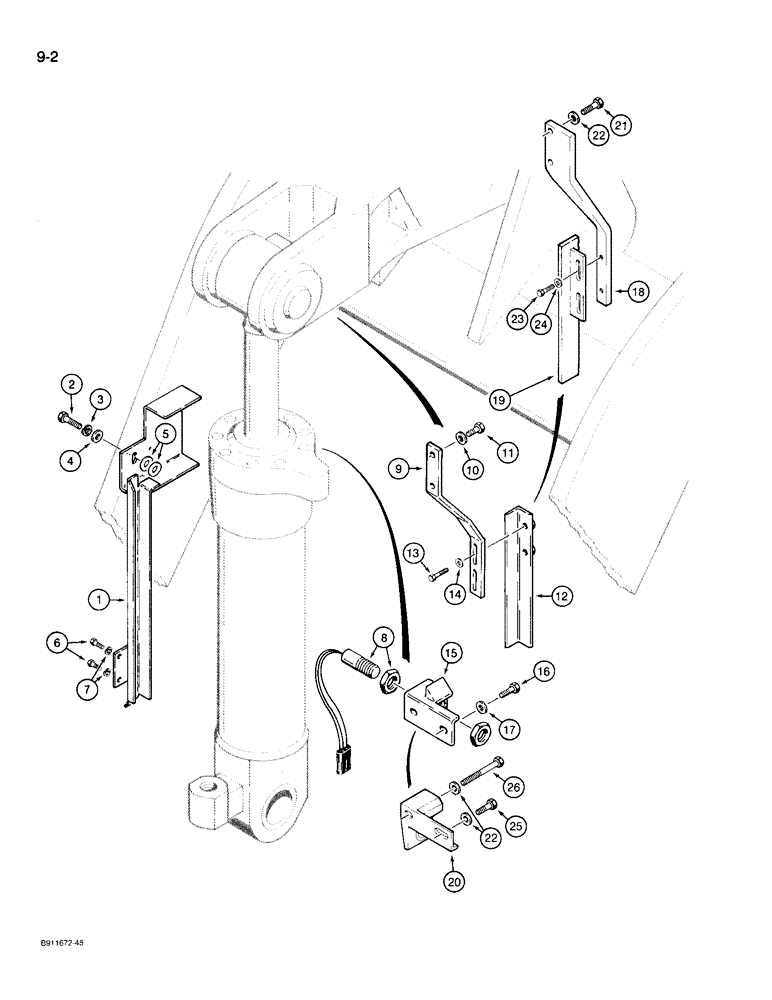

Запчасти Case 721 (9-002) - LOADER BUCKET RETURN-TO-DIG (09) - CHASSIS/ATTACHMENTS

1

L127182

PROTECTOR

GUARD - harness, return-to-dig

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

4

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

5

95-81162

WASHER,0.56" ID x 1.88" OD x 0.13" Thk

- flat, 9/16 x 1-7/8 x 1/8 inch

2шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

1546497C1

SWITCH

- proximity, return-to-dig

1шт.

9

L128008

SUPPORT

BRACKET - return-to-dig, Serial Range: -JAK0022577

1шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, Serial Range: -JAK0022577

2шт.

11

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

, Serial Range: -JAK0022577

2шт.

12

L124610

SUPPORT

BAR - sensing, return-to-dig, Serial Range: -JAK0022577

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, Serial Range: -JAK0022577

2шт.

14

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, Serial Range: -JAK0022577

2шт.

15

L127284

SUPPORT

BRACKET - mounting, proximity switch, Serial Range: -JAK0022577

1шт.

16

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

, Serial Range: -JAK0022577

2шт.

17

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, Serial Range: -JAK0022577

2шт.

18

L128809

SUPPORT

BRACKET - return-to-dig, Start Serial: JAK0022577

1шт.

19

L128837

SUPPORT

BAR - sensing, return-to-dig, Start Serial: JAK0022577

1шт.

20

L125983

SUPPORT

BRACKET - mounting, proximity switch, Start Serial: JAK0022577

1шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, Start Serial: JAK0022577

2шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, Start Serial: JAK0022577

4шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, Start Serial: JAK0022577

2шт.

24

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, Start Serial: JAK0022577

2шт.

25

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

, Start Serial: JAK0022577

1шт.

26

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, Start Serial: JAK0022577

1шт.
