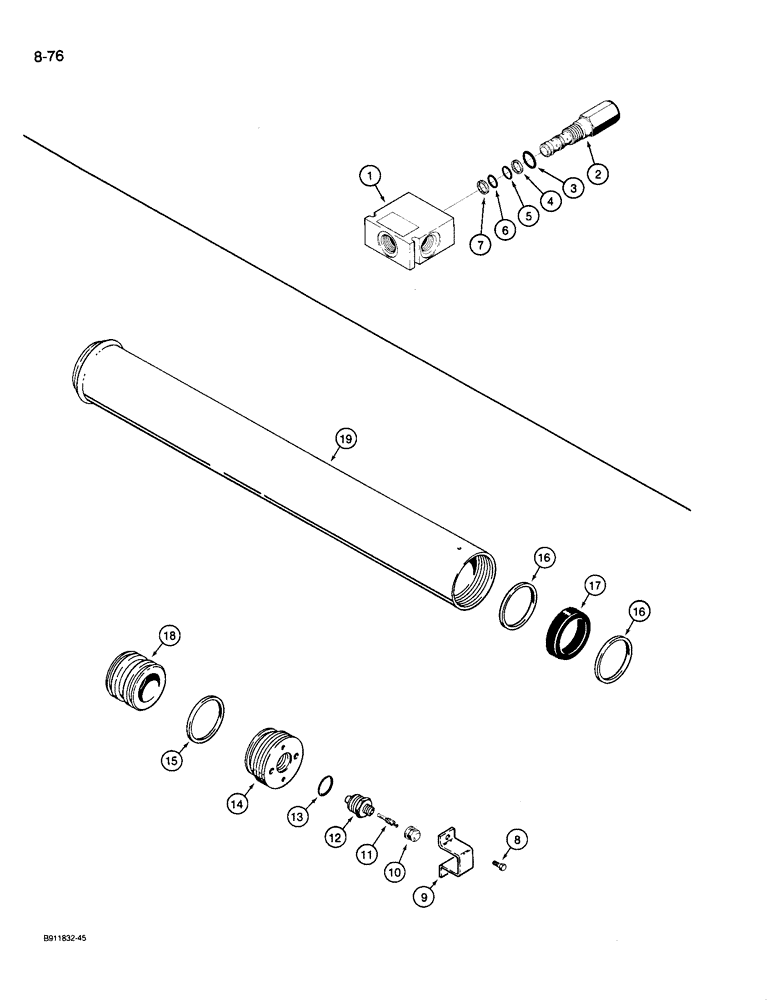

Запчасти Case 721 (8-76) - PRESSURE REDUCING VALVE AND ACCUMULATOR, PRESSURE REDUCING VALVE (08) - HYDRAULICS

L101927

VALVE

ASSEMBLY - pressure reducing, Includes: Ref. 1 - 7

1шт.

1

N6523

BODY

- valve

1шт.

N6524

VALVE

RELIEF ASSEMBLY - pressure reducing, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief assembly

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

L30012

RING

- backup, middle

1шт.

5

A65918

O-RING,0.551" ID x 0.691" OD

- middle

1шт.

6

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inner

1шт.

7

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, inner

1шт.

L118361

ACCUMULATOR

ASSEMBLY - hydraulic, Includes: Ref. 8 - 19

1шт.

8

187-1066

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - hex, self-tapping, No. 10 NC x 3/8 inch, accumulator

2шт.

9

1978140C1

PROTECTOR

BRACKET - protection, valve, accumulator

1шт.

1978142C1

VALVE

ASSEMBLY - charge, accumulator, Includes: Ref. 10 - 12

1шт.

10

1978144C1

CAP

- charge valve, accumulator

1шт.

11

1978143C1

PISTON

VALVE - charge valve assembly, accumulator

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - order 1978142C1 valve assembly, accumulator

1шт.

13

1978158C1

O-RING

- charge valve, accumulator

1шт.

14

NSS

NOT SOLD SEPARAT

GLAND - accumulator

1шт.

1978141C1

SEAL KIT

KIT, SEALS, Accumulator, Incl Ref 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

RING - seal, gland, accumulator

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wear, Teflon, piston, accumulator

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston, accumulator

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - accumulator

1шт.

19

NSS

NOT SOLD SEPARAT

TUBE - accumulator

1шт.
