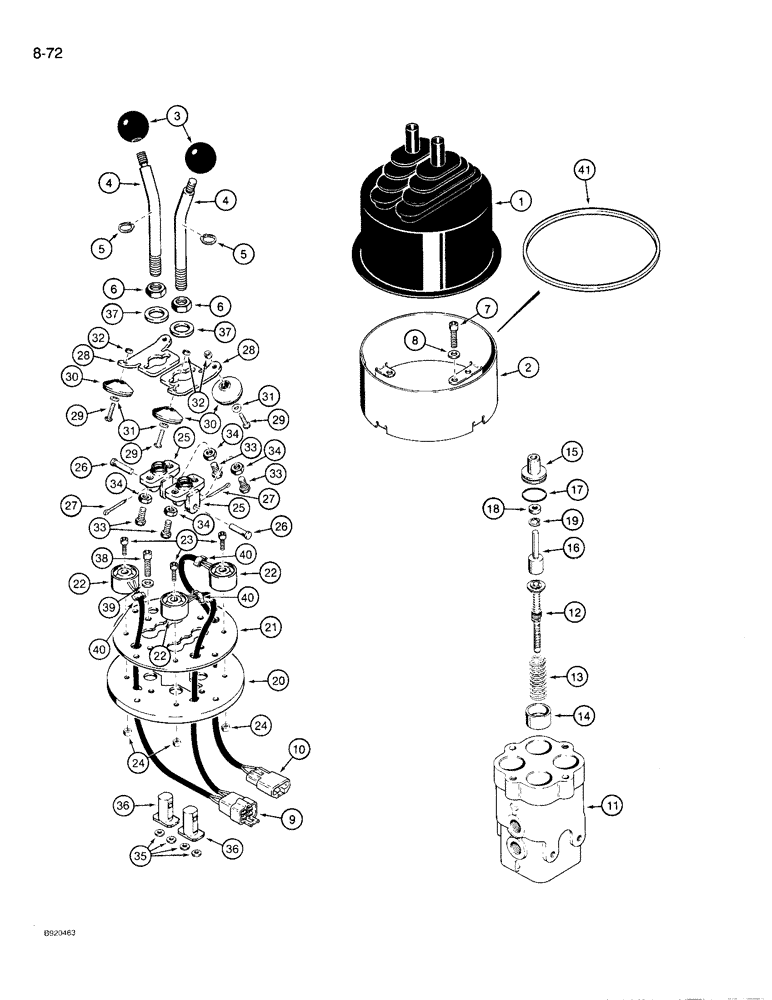

Запчасти Case 721 (8-72) - DUAL LEVER REMOTE CONTROL VALVE - L118040 (08) - HYDRAULICS

L118040

VALVE

ASSEMBLY - no longer available, stamped L118040, order 107389A1 assembly shown on Figure 8-73A, Includes: Ref. 1 - 41

1шт.

1

1971897C1

DUST CAP

BOOT - dust

1шт.

2

1971890C1

CLAMP

COLLAR - control valve

1шт.

3

1978187C1

BALL KNOB

KNOB - control lever

2шт.

4

1971898C1

LEVER

- control

2шт.

5

26593R1

SNAP RING,#50, Ext

Ring, Snap, , control lever, if used #50, Ext

2шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

4шт.

7

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT - hex socket head, 1/4 NC x 3/4 inch

2шт.

8

1978189C1

WASHER

- flat, 17/64 x 1/2 x 1/32 inch

2шт.

9

1978198C1

CONNECTION

CONNECTOR - magnetic coil, with male terminal

1шт.

10

1978225C1

CONNECTION

CONNECTOR - magnetic coil, with female terminal

1шт.

1971891C1

VALVE

ASSEMBLY - remote control, Includes: Ref. 11 - 40

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

12

1971892C1

SPOOL

- control valve

4шт.

13

1978191C1

SPRING

- spool

4шт.

14

1978192C1

RACE

SLEEVE - spool

4шт.

109627A1

PLUNGER ASSY.

PLUNGER ASSEMBLY - control valve (Replaced 1971896C1), Includes: Ref. 15 - 19

4шт.

15

1978207C1

GUIDE

- valve, long stem

1шт.

16

N13694

LARGE PIN

PLUNGER - valve

1шт.

17

376769R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- rubber insert

1шт.

18

N14759

SEAL,11.68mm ID x 13.46mm OD x 3.38mm Thk

- U-cup, plunger

1шт.

19

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, , plunger 0.50", Int, #50

1шт.

20

1978196C1

LARGE PLATE

PLATE - plastic, lower

1шт.

21

1978208C1

LARGE PLATE

PLATE - metal, upper

1шт.

22

1971887C1

SOLENOID SWITCH

COIL - magnetic

3шт.

23

28243R1

HEX SOC SCREW,#10 - 24 x 1/2"

BOLT - hex socket head, No. 10 NC x 1/2 inch

3шт.

24

225-14110

NUT,#10-24

3шт.

25

N13680

PIVOT

- control valve

2шт.

26

109716A1

PIN,6.38mm OD x 25.15mm L

2шт.

27

432-416

COTTER PIN,1/16" x 1"

1/16" x 1"

2шт.

28

1978210C1

BRACKET

PLATE - control valve

2шт.

29

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- machine, round slotted, No. 8 NC x 1/2 inch

3шт.

30

1978200C1

LARGE PLATE

DISC - armature

3шт.

31

1978224C1

WASHER

- disc alignment

3шт.

32

115998

NUT,#8-32

NUT, #8-32

3шт.

33

N13679

BOLT

- spool actuator

4шт.

34

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

4шт.

35

1978211C1

SHIM

- control valve

1шт.

36

1971886C1

POST

- control valve

2шт.

37

1978212C1

SPACER

WASHER - flat, 43/64 x 1-5/64 x 1/8 inch

2шт.

38

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT - hex socket head, 1/4 NC x 3/4 inch

2шт.

39

1978189C1

WASHER

- flat, 17/64 x 1/2 x 1/32 inch

2шт.

40

109752A1

MOUNTING CLIP

CLIP - magnetic coil

3шт.

41

109625A1

GROMMET

TRIM - control valve collar, used as a grommet (Replaced 1542553C1)

1шт.
