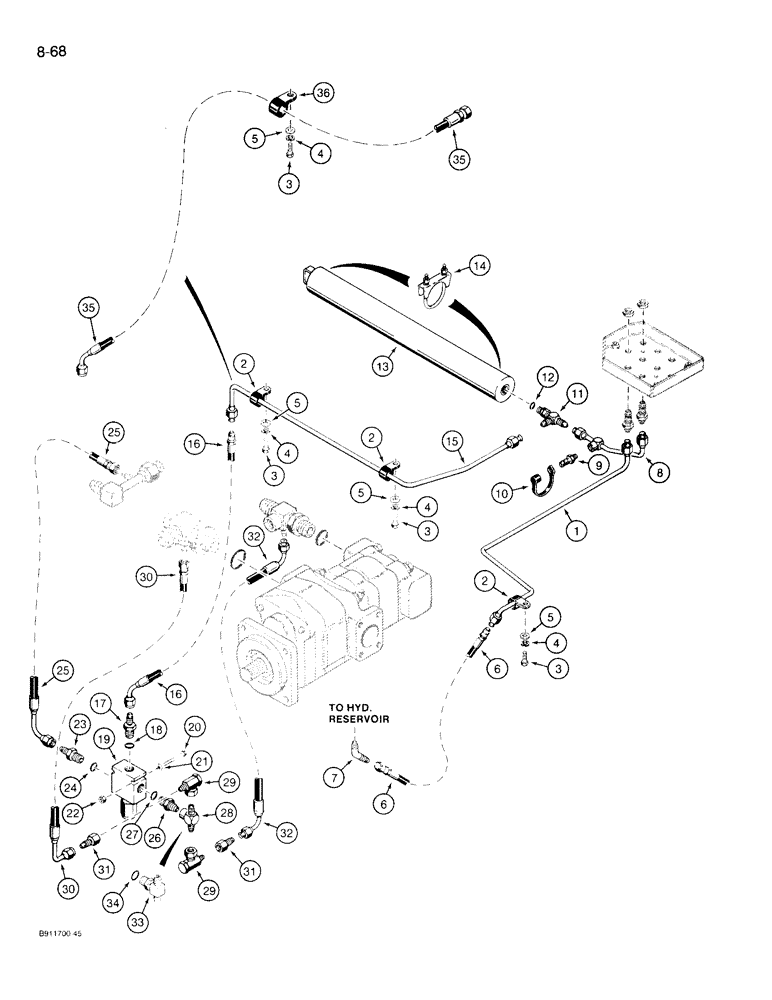

Запчасти Case 721 (8-68) - REMOTE LOADER CONTROL CIRCUIT, RETURN TO HYDRAULIC RESERVOIR VALVE (08) - HYDRAULICS

1

L126571

PIPE,9.52 mm OD

TUBE - hose separator to hose at hydraulic reservoir

1шт.

2

49845

CLAMP

- retaining

1-3шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2-3шт.

4

492-11038

LOCK WASHER,3/8"

2-3шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2-3шт.

6

L124336

HOSE

- 600 mm long, tube to hydraulic reservoir

1шт.

7

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

8

L126860

TUBE

- hose, Serial Range: separator-accumulator

1шт.

9

H434164

COUPLING

- quick disconnect

1шт.

10

H434163

DUST CAP

CAP - dust

1шт.

11

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 flare branch x flare x adj O-ring boss, Includes: Ref. 12

1шт.

13

L118361

ACCUMULATOR

- hydraulic, parts list Figure 8-76

1шт.

14

A13240

CLAMP,2-5/8" ID

- accumulator, includes hardware

2шт.

15

L127306

PIPE,9.5 mm OD

TUBE - pressure, tee at accumulator to pressure reducing valve, Serial Range: -JAK0022758

1шт.

16

L127561

HOSE

- 600 mm long, pressure reducing valve to tube at accumulator, Serial Range: -JAK0022758

1шт.

17

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

L101927

VALVE

- pressure reducing, parts list Figure 8-76

1шт.

20

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

21

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 5/64 inch

2шт.

22

131-2

NUT,1/4"-20, GB

NUT - light hex, self-locking, 1/4 inch NC

2шт.

23

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 7/16-20 flare x 3/4-16 inch O-ring boss, Includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

L127536

HOSE

- 620 mm long, pressure reducing valve to return tube at flow control valve

1шт.

26

L127784

FITTING

ADAPTER - straight, includes welded on orifice, no longer available, order Ref. 33, L127924 tee, Includes: Ref. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

L103035

TEE

- pressure fitting, no longer available, order Ref. 33, L127924 tee

1шт.

29

L59038

LOCK VALVE

VALVE - check, at pressure reducing valve

2шт.

30

L127387

HOSE

- 300 mm long, pressure reducing valve to fitting at steering pump

1шт.

31

218-1032

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, Fem Pipe

ADAPTER - straight, 7/16-20 flare x 1/4 inch female PT

2шт.

32

L127390

HOSE

- 380 mm long, pressure reducing valve to manifold at equipment and steering pump

1шт.

33

L127924

FITTING

TEE - special, includes welded on orifice, replaces Ref. 26, L127784 adapter and Ref. 28, L103035 tee, Includes: Ref. 34

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

L129950

HOSE ASSY.

HOSE - 1700 mm long, pressure reducing valve to tube at accumulator, Start Serial: JAK0022758

1шт.

36

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P, 3/4 inch diameter

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
