(8-46) - LOADER AUXILIARY CYLINDER - S300146

Запчасти Case 721 (8-46) - LOADER AUXILIARY CYLINDER - S300146 (08) - HYDRAULICS

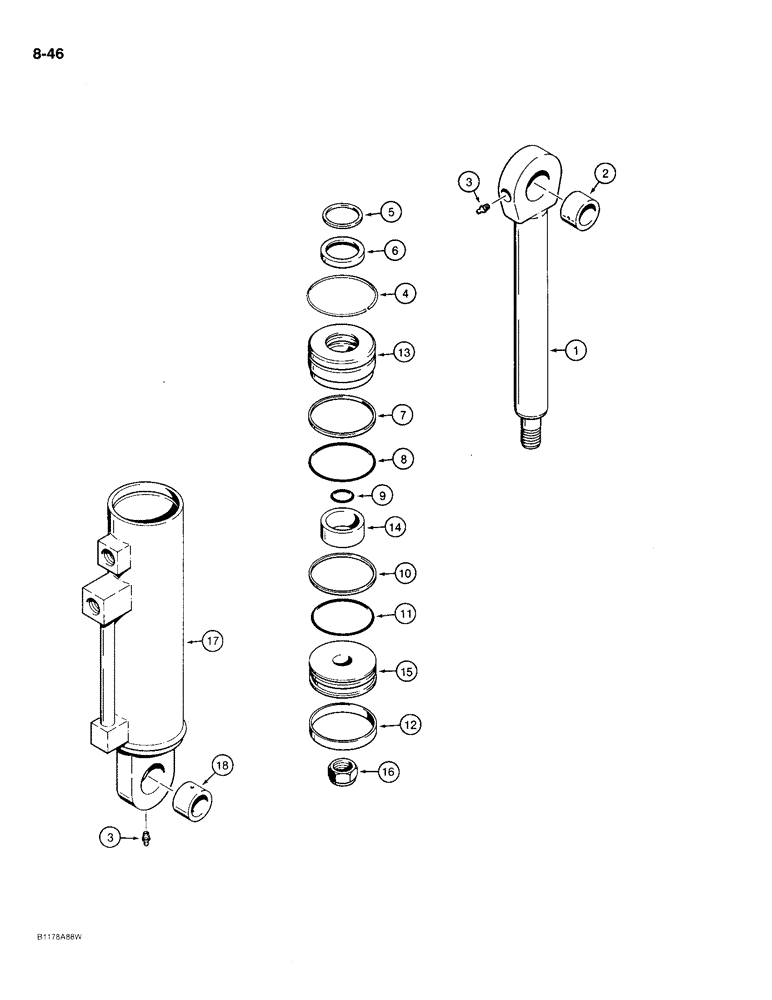

Схема запчастей Case 721 - (8-46) - LOADER AUXILIARY CYLINDER - S300146 (08) - HYDRAULICS
17
2
18
3
11
7
12
1
5
16
9
14
15
10
8
13
4
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S300146

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4 (102) ID x 10 (254 mm) stroke, auxiliary, no longer available, order S301479 shown Figure 8-48, Includes: Ref. 1 - 18

2шт.

See Fig. 8-16 for the auxiliary bucket hydraulics and Fig. 9-14 for the auxiliary bucket and cylinder mounting pins.

1шт.

1

S300159

PISTON ROD

ROD ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

S300154

BUSHING

- rod

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT

2шт.

4

S300165

RING, SNAP

RING - retaining, gland

1шт.

S300163

RING, SNAP

KIT- SEAL, Includes: Ref. 5 - 12

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - U-cup, rod

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, gland, outer

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - gland, outer

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING -, Serial Range: rod-piston

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston seal

1шт.

12

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

13

S300161

CYLINDER END CAP

GLAND - cylinder

1шт.

14

S300160

SPACER

- piston

1шт.

15

S300162

PISTON

- cylinder

1шт.

16

S300164

NUT

NUT - hex, special

1шт.

17

S300158

TUBE

- cylinder, Includes: Ref. 18

1шт.

18

S300154

BUSHING

- tube

1шт.
