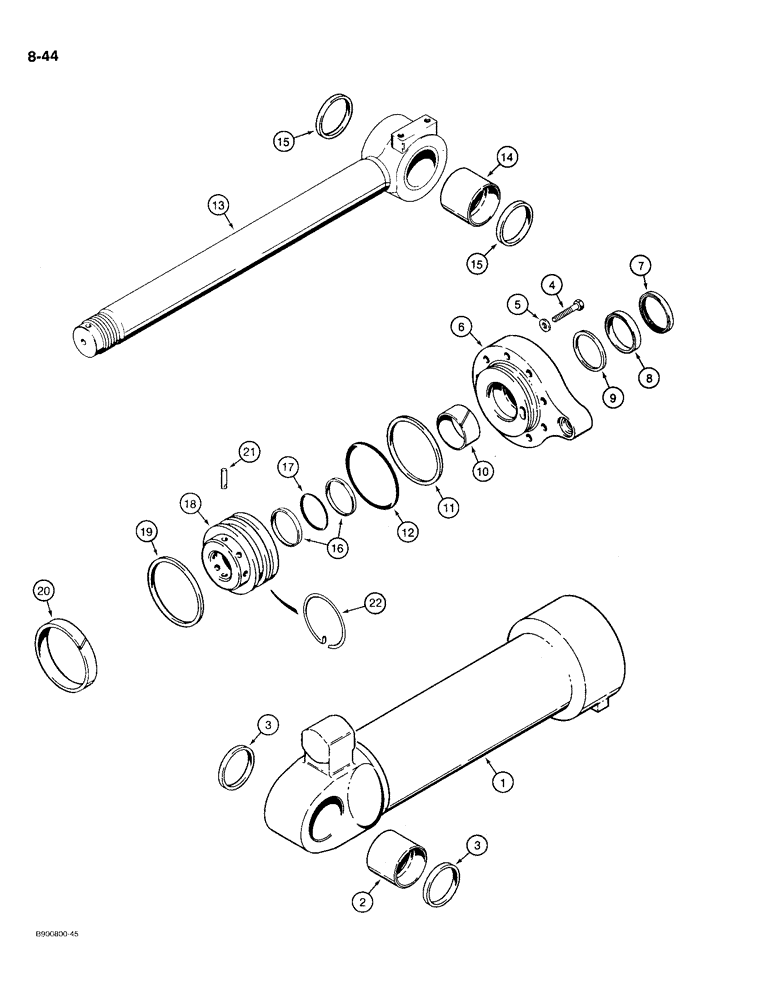

Запчасти Case 721 (8-44) - BUCKET CYLINDER (08) - HYDRAULICS

1345991C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 6-1/2 (165) ID x 21-7/16 inch (544 mm) stroke, bucket, no longer available, order 1980347C4 cylinder, Includes: Ref. 1 - 22, Serial Range: JAK0022102-JAK0022217

1шт.

The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and Ref. 18, 1980351C2 piston. All of the other Ref. numbers will service both cylinders.

1шт.

1980347C4

CYLINDER ASSY.

CYLINDER ASSEMBLY - 6-1/2 (165) ID x 21-7/16 inch (544 mm) stroke, bucket, Includes: Ref. 1 - 22, Start Serial: JAK0022218

1шт.

1

1343668C1

BODY

TUBE - cylinder, Includes: Ref. 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- tube

1шт.

3

L104363

WIPER SEAL

- tube eye

2шт.

4

28-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 8

- hex, 5/8 NF x 3 inch, grade 8

9шт.

5

S92353

WASHER

- flat, 41/64 x 1-5/16 x 1/4 inch, hardened

9шт.

1343671C1

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, no longer available, order 1343670C1 gland assembly, Includes: Ref. 6 - 12

1шт.

1343670C1

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, Includes: Ref. 6 - 12

1шт.

6

1543091C1

GLAND

- cylinder

1шт.

7

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N G110690

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

8

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

Part of seal kit P/N G110690

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

9

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

- buffer

1шт.

Part of seal kit P/N G110690

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

-, Serial Range: gland-rod

1шт.

Part of seal kit P/N G110690

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

11

G110421

BACK-UP RING,151.81mm ID x 160.95mm OD x 1.9mm Thk

RING - backup, gland O-ring

1шт.

Part of seal kit P/N G110690

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

12

G110420

O-RING,-360, 70 Duro, 5.85" ID x .210" Thk

- gland seal

1шт.

Part of seal kit P/N G110690

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

13

1343555C1

PISTON ROD

ROD - 3 inch (76 mm) diameter, 2-7/8 inch joint threads, Includes: Ref. 14

1шт.

14

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

- rod eye

1шт.

15

L104363

WIPER SEAL

- rod eye

2шт.

16

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, seal, Serial Range: piston-rod

2шт.

Part of seal kit P/N G110690

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

17

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3 x 3-1/4 x 1/8 inch, piston to rod

1шт.

Part of seal kit P/N G110690

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

18

1980351C2

JACK PISTON

PISTON - rod, 2-7/8 inch joint threads

1шт.

19

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL - piston

1шт.

Part of seal kit P/N G110690

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

20

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

BUSHING -, Serial Range: piston-tube

1шт.

Part of seal kit P/N G110690

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

21

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

22

1980352C1

RING

- retaining, locking pin

1шт.

G110690

SEAL PACKAGE

KIT - seal, Includes Refs. 7, 8, 9, 10, 11, 12, 16, 17, 19 and 20

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.
