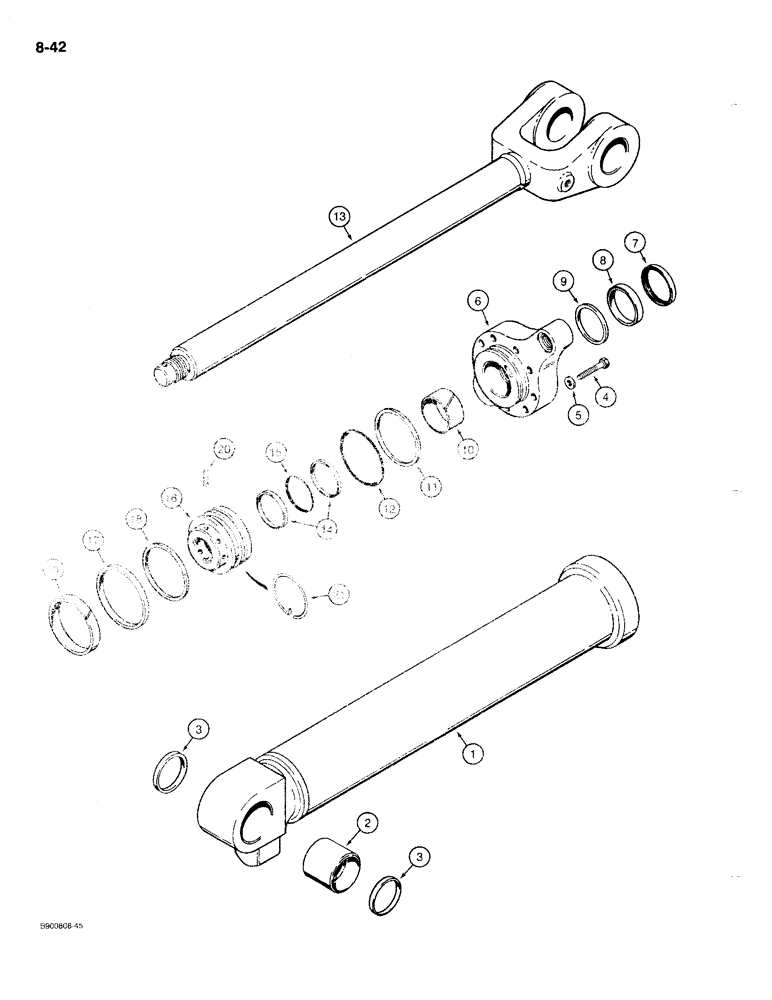

Запчасти Case 721 (8-42) - LIFT CYLINDERS (08) - HYDRAULICS

G110354

CYLINDER ASSY.

CYLINDER ASSEMBLY - 5 (127) ID x 32-13/16 inch (834 mm) stroke, right-hand lift, no longer available, order 1343596C1 cylinder assembly, Includes: Ref. 1 - 21

1шт.

1343596C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 5 (127) ID x 32-13/16 inch (834 mm) stroke, right-hand lift, see Figure 9-6 for mounting, Includes: Ref. 1 - 21

1шт.

G110355

CYLINDER ASSY.

CYLINDER ASSEMBLY - 5 (127) ID x 32-13/16 inch (834 mm) stroke, left-hand lift, no longer available, order 1343595C1 cylinder assembly, Includes: Ref. 1 - 21

1шт.

1343595C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 5 (127) ID x 32-13/16 inch (834 mm) stroke, left-hand lift, see Figure 9-6 for mounting, Includes: Ref. 1 - 21

1шт.

1

G110356

TUBE,126.87 mm ID x 1050.8 mm L

- G110354 and G110355 cylinders, Includes: Ref. 2

1шт.

1

1343597C1

TUBE

- 1343596C1 and 1343595C1 cylinders, not shown, Includes: Ref. 2

1шт.

2

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

- tube, G110356 and 1343597C1 tubes

1шт.

3

D95148

WIPER SEAL

SEAL - tube eye

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

- hex, 9/16 NF x 2-3/4 inch, grade 8

9шт.

5

G110688

WASHER

- flat, special, hardened

9шт.

G110525

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, no longer available, order G110365, Includes: Ref. 6 - 12

1шт.

G110365

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, Includes: Ref. 6 - 12

1шт.

6

G110366

CYLINDER END CAP

GLAND - cylinder (Replaced NSS)

1шт.

7

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

8

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

9

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

- buffer

1шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

-, Serial Range: gland-rod

1шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

11

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

12

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

13

1343565C1

PISTON ROD

ROD - 3 inch (76 mm) diameter

1шт.

14

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, seal, Serial Range: piston-rod

2шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

15

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Piston to rod -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

16

G110368

PISTON

- rod

1шт.

17

G102091

SEAL,128.52mm OD x 6.96mm Thk

-, Serial Range: piston-tube

1шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

19

G102090

RING,127mm OD, Ext

BUSHING -, Serial Range: piston-tube

1шт.

Part of seal kit P/N G110524

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.

20

G106602

LOCK PIN

PIN - locking, Serial Range: piston-rod

1шт.

21

G110333

CIRCLIP

RING - retaining, locking pin

1шт.

G110524

SEAL PACKAGE

KIT - seal, Includes Refs. 7, 8, 9, 10, 11, 12, 14, 15, 17, 18 and 19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes. The rod and piston in 1345991C1 have 2-1/2 inch joint threads and may not be serviced individually. To service either the rod or the piston in 1345991C1 order Ref. 13, 1343555C1 rod and item 18, 1980351C2 piston. All of the other item numbers will service both cylinders.

1шт.
