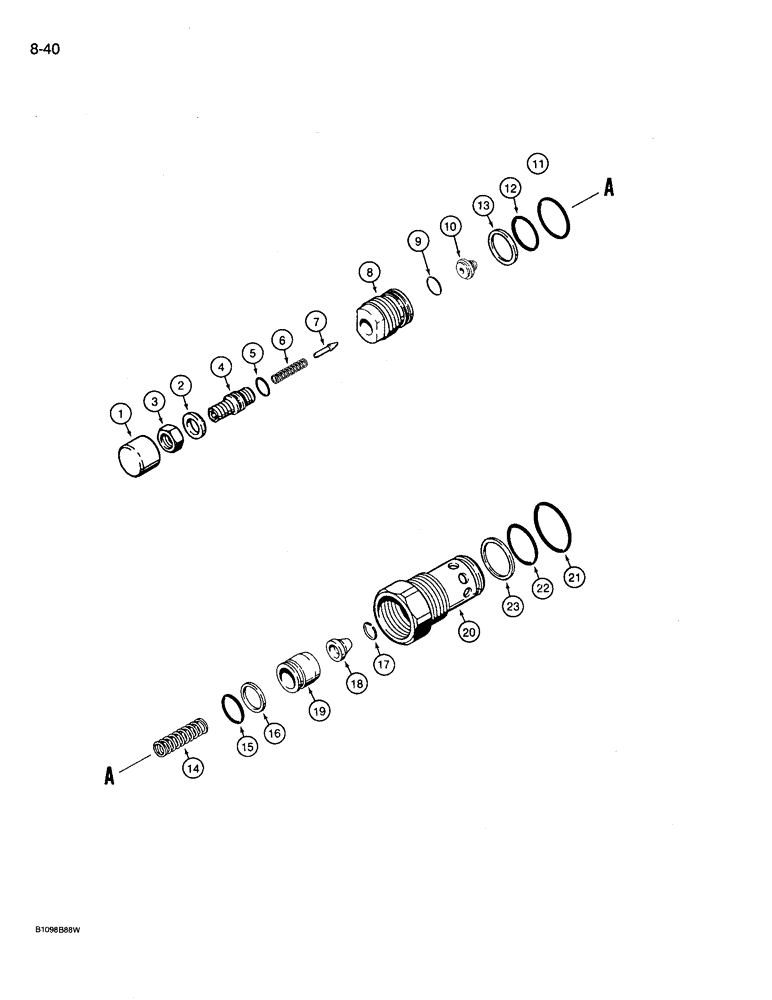

Запчасти Case 721 (8-40) - CIRCUIT RELIEF VALVE - 1978297C2 (08) - HYDRAULICS

1978297C2

VALVE

ASSEMBLY - circuit relief, loader control valve, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - tamper proof, if used

1шт.

2

1978295C1

WASHER

- valve

1шт.

3

25934R1

JAM NUT,Jam, 3/8"-24, G8

- jam, hex, 3/8 inch NF

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 3/8 ID x 1/16 inch wide, adjusting screw

1шт.

Part of seal kit P/N 1986634C1

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - pilot plunger, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 3/8 ID x 1/16 inch wide, pilot seat

1шт.

Part of seal kit P/N 1986634C1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - pilot

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 13/16 ID x 1/16 inch wide, body

1шт.

Part of seal kit P/N 1986634C1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - body, small

1шт.

Part of seal kit P/N 1986634C1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

1шт.

Part of seal kit P/N 1986634C1

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

15

NSS

NOT SOLD SEPARAT

0-RING - 9/16 ID x 3/32 inch wide

1шт.

Part of seal kit P/N 1986634C1

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, poppet O-ring

1шт.

Part of seal kit P/N 1986634C1

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining, screen

1шт.

18

NSS

NOT SOLD SEPARAT

SCREEN - poppet

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

21

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

Part of seal kit P/N 1986634C1

1шт.

22

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

Part of seal kit P/N 1986634C1

1шт.

23

1978265C1

BACK-UP RING

RING - backup, small O-ring

1шт.

Part of seal kit P/N 1986634C1

1шт.

1986635C1

SEAL KIT

KIT - seal, Includes Refs. 5, 9, 11, 12, 13, 15, 16 21, 22 and 23

1шт.
