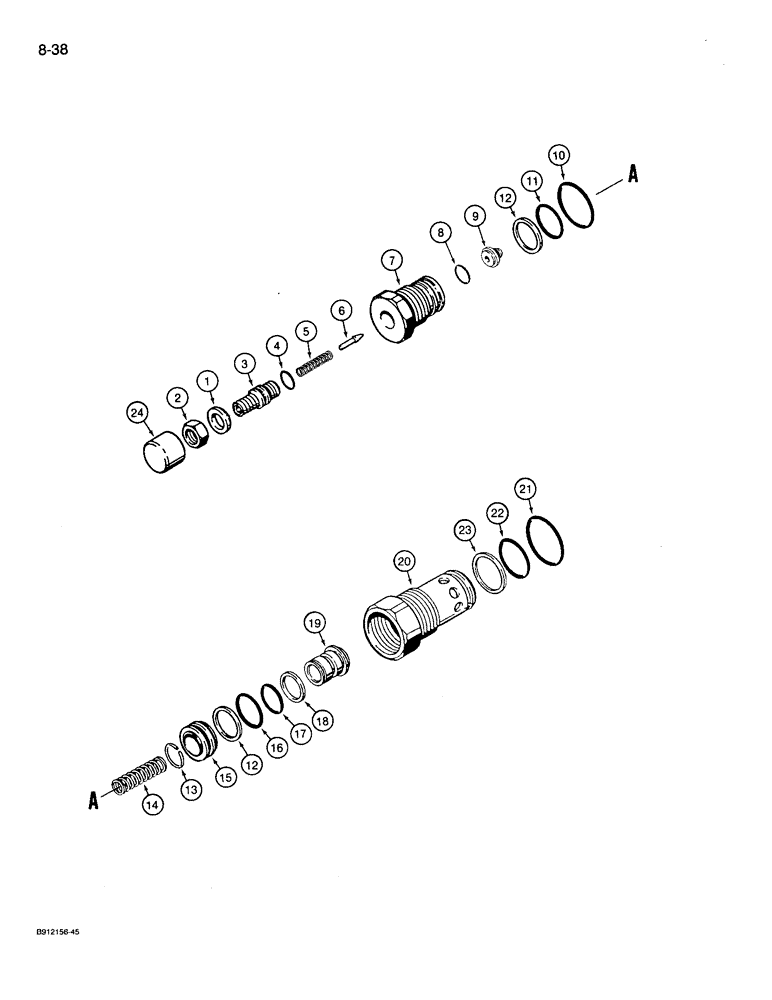

Запчасти Case 721 (8-38) - MAIN RELIEF VALVE AND, CIRCUIT RELIEF AND ANTICAVITATION (08) - HYDRAULICS

102210A1

VALVE

ASSEMBLY - main relief and circuit relief and anticavitation valve service replacement, Includes: Ref. 1 - 24

1шт.

This valve is used as a main relief and also as a replacement for the circuit relief and anticavitation valve. See your service manual for proper pressure settings.

1шт.

102211A1

VALVE

ASSEMBLY - circuit relief and anticavitation, loader control valve, production only, for service order 102210A1 valve, see your service manual for proper pressure settings, Includes: Ref. 1 - 24

1шт.

1

1978295C1

WASHER

- valve

1шт.

2

25934R1

JAM NUT,Jam, 3/8"-24, G8

- jam, hex, 3/8 inch NF

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 3/8 ID x 1/16 inch wide, adjusting screw

1шт.

Part of seal kit P/N 1986634C1

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - pilot plunger, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - pilot seat

1шт.

Part of seal kit P/N 1986634C1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - pilot

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - body, large

1шт.

Part of seal kit P/N 1986634C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - body, small

1шт.

Part of seal kit P/N 1986634C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

2шт.

Part of seal kit P/N 1986634C1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - retaining, poppet sleeve

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE - poppet

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - sleeve

1шт.

Part of seal kit P/N 1986634C1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

Part of seal kit P/N 1986634C1

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup, poppet O-ring

1шт.

Part of seal kit P/N 1986634C1

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET ASSEMBLY - relief valve, with flat screen, component parts are not serviceable

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

21

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

Part of seal kit P/N 1986634C1

1шт.

22

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

Part of seal kit P/N 1986634C1

1шт.

23

1978265C1

BACK-UP RING

RING - backup, small O-ring

1шт.

Part of seal kit P/N 1986634C1

1шт.

24

NSS

NOT SOLD SEPARAT

COVER - tamper proof, S301628 valve only

1шт.

1986634C1

SEAL KIT

KIT - seal, Includes: Refs. 4, 8, 10, 11, 12, 16, 17, 18, 21, 22 and 23

1шт.
