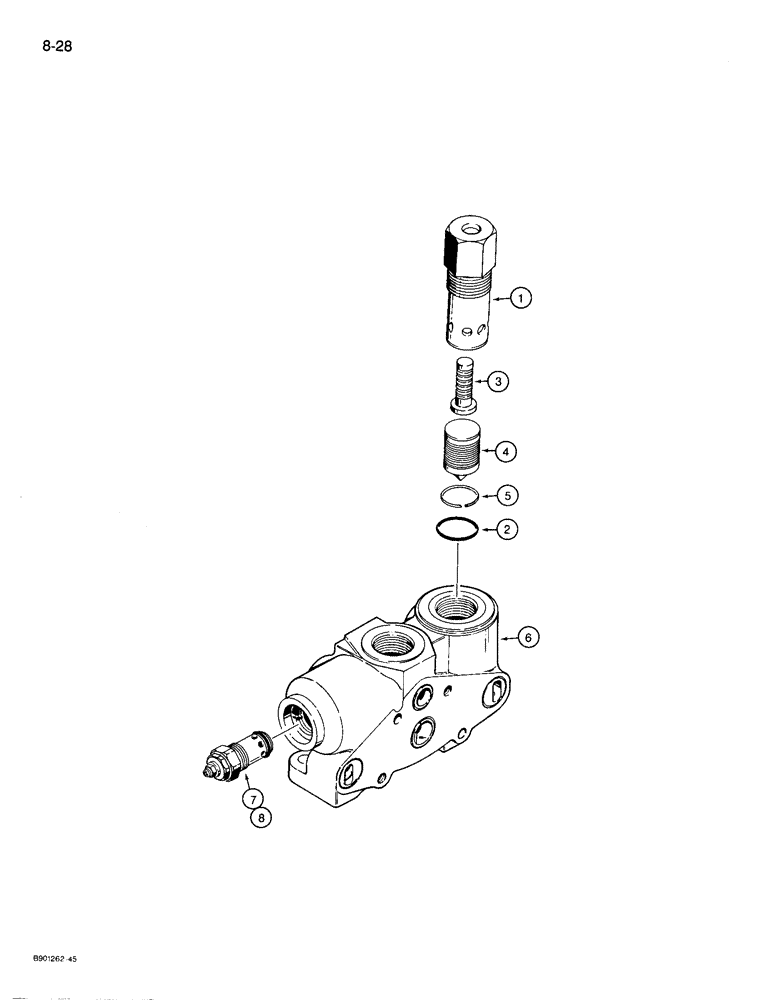

Запчасти Case 721 (8-28) - LOADER INLET AND OUTLET SECTION - 1978263C1 (08) - HYDRAULICS

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, loader control valve, Includes: Ref. 1 - 7

1шт.

1978274C1

GOVERNOR

VALVE ASSEMBLY - low pressure regeneration, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

3

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - low pressure regeneration

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, valve

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - inlet and outlet section

1шт.

7

S301627

VALVE

ASSEMBLY - main relief, with cone shaped screen, on poppet, parts list Figure 8-36, see your service manual for proper pressure setting, no longer available, order 102210A1 valve assembly

1шт.

7

102210A1

VALVE

ASSEMBLY - main relief, with flat screen on poppet, parts list Figure 8-38, see your service manual for proper pressure setting

1шт.
