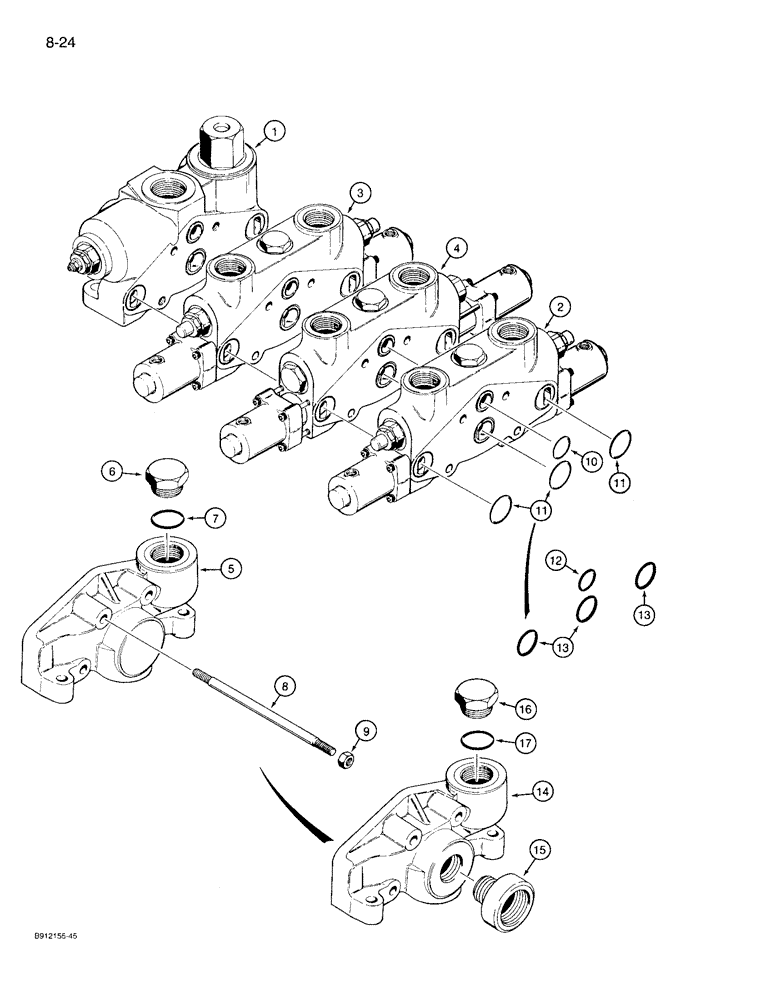

Запчасти Case 721 (8-24) - LOADER CONTROL VALVE - THREE SPOOL (08) - HYDRAULICS

L123678

VALVE

ASSEMBLY - control, three spool, Includes: Ref. 1 - 13

1шт.

1

1978263C1

VALVE

SECTION ASSEMBLY - inlet and outlet, parts list Figure 8-28

1шт.

2

1978280C1

SECTOR

SECTION ASSEMBLY - auxiliary, parts list Figure 8-34

1шт.

3

1978296C1

VALVE

SECTION ASSEMBLY - bucket, parts list Figure 8-32

1шт.

4

1978302C1

VALVE

SECTION ASSEMBLY - lift, parts list Figure 8-30

1шт.

5

1978278C1

SECTOR

PLATE - cover, end, Includes: Ref. 6 and 7

1шт.

6

D54275

PLUG

- cover plate

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

1980219C1

STUD

- control valve ( 10.25' long )

4шт.

9

25524R1

NUT,7/16"-14, G8

- hex, 7/16 inch NC, grade 8, special

4шт.

1978320C1

SEAL KIT

KIT - seal, between sections, prior to date stamp of D91 printed on sections, Includes: Ref. 10 and 11

1шт.

The date stamp of D (fourth letter of alphabet) 91 is equal to April (fourth month) of 1991.

1шт.

10

370943R1

O-RING,1.114" ID x 0.07" Width

- small

5шт.

11

370944R1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

- large

15шт.

1542847C1

SEAL KIT

KIT - seal, between sections, will service both prior to and after date stamp of D91 printed on sections, Includes: Ref. 10 - 13

4шт.

The date stamp of D (fourth letter of alphabet) 91 is equal to April (fourth month) of 1991.

1шт.

10

370943R1

O-RING,1.114" ID x 0.07" Width

- small, thin, prior to date stamp of D91 printed on sections

1шт.

The date stamp of D (fourth letter of alphabet) 91 is equal to April (fourth month) of 1991.

1шт.

11

370944R1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

- large, thin, prior to date stamp of D91 printed on sections

3шт.

The date stamp of D (fourth letter of alphabet) 91 is equal to April (fourth month) of 1991.

1шт.

12

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

Date stamp of D91 and after printed on sections -122, 90 Duro, 1.112" ID x .103" Thk

1шт.

The date stamp of D (fourth letter of alphabet) 91 is equal to April (fourth month) of 1991.

1шт.

13

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

- 1-3/8 x 1-9/16 inch wide, date stamp of D91 and after printed on sections

3шт.

The date stamp of D (fourth letter of alphabet) 91 is equal to April (fourth month) of 1991.

1шт.

L36348

KIT

- power beyond, if used, includes instructions, Includes: Ref. 14 - 17

1шт.

14

S301432

COVER

- outlet, power beyond kit

1шт.

15

S301433

SLEEVE

- power beyond kit

1шт.

16

273916

PLUG,Hex, 1-5/16" - 12 ORB

Power beyond kit, Includes Ref. 17 Hex Hd, 1 5/16"-12 ORB

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch, power beyond kit

1шт.
