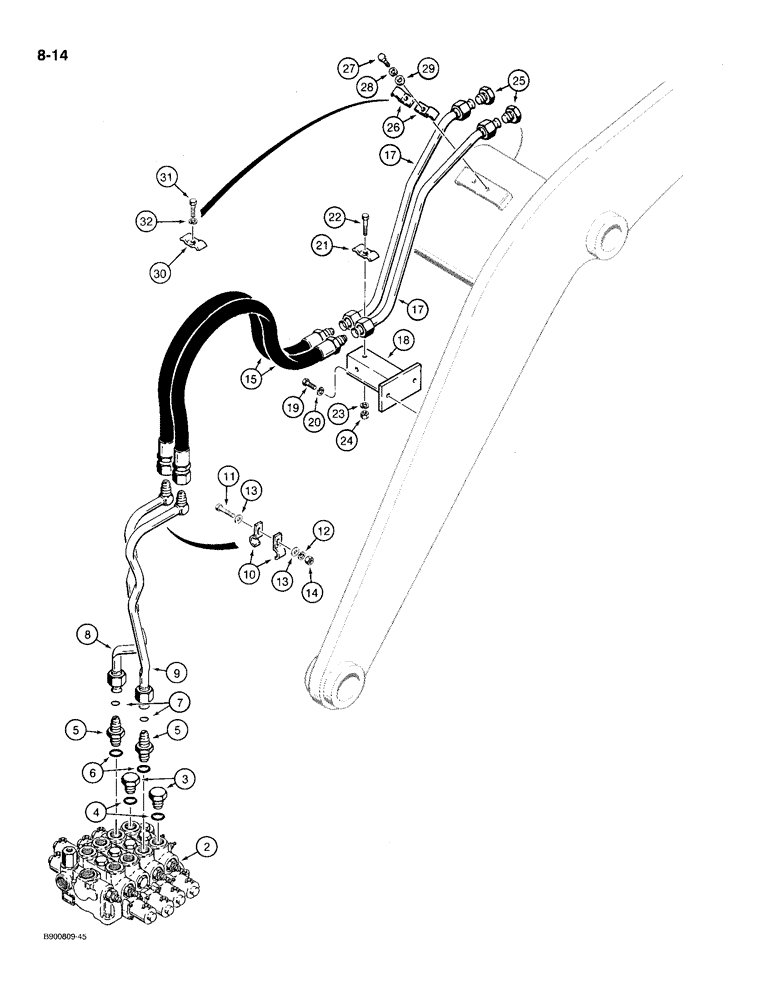

Запчасти Case 721 (8-14) - AUXILIARY HYDRAULIC CIRCUIT, CONTROL VALVE TO CYLINDERS (08) - HYDRAULICS

1

L123678

VALVE

ASSEMBLY - control, three spool, not shown, parts list Figure 8-24, if used

1шт.

2

L123736

VALVE

ASSEMBLY - control, four spool, parts list Figure 8-26, if used

1шт.

3

273916

PLUG,Hex, 1-5/16" - 12 ORB

Use to plug ports of fourth valve section on units with four spool valve, Includes: Ref. 4 Hex Hd, 1 5/16"-12 ORB

2шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

5

L124291

FITTING

ADAPTER - straight, 1-5/16-12 inch O-ring flare x O-ring boss, Includes: Ref. 6 and 7

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, boss end

1шт.

7

G102086

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- adapter, flare end

1шт.

8

L126182

TUBE,25.4 mm OD

- left-hand, auxiliary section to hose

1шт.

9

L126180

TUBE,25.4 mm OD x 802, 248 mm L

- right-hand, auxiliary section to hose

1шт.

10

L32065

CLAMP

- tubes

2шт.

11

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

L126184

HOSE,19.1mm ID x 1100mm L, SAE 100R12

- 1100 mm long, tube at loader valve to tube on lift arm

2шт.

16

L126486

PIPE,25.4 mm OD

TUBE - left-hand, at loader arm, not shown, no longer available, order L126488 tube, Ref. 17

1шт.

17

L126488

PIPE,25.4 mm OD

TUBE - left-hand and right-hand, at loader arm

2шт.

18

L126511

SUPPORT

BRACKET - mounting, tubes

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

R15257

CLAMP

- tubes

1шт.

22

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

425-106

NUT,3/8"-16, Cl 5

1шт.

25

218-779

PLUG,1 5/16"-12, 37 Degree

- hex, 1-5/16-12 inch flare, use when clam bucket is not attached to tractor

2шт.

26

L32065

CLAMP

- tube, bracket on loader arm cross-tube, if used

2шт.

27

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch, If used

2шт.

28

492-11038

LOCK WASHER,3/8"

if used 3/8"

2шт.

29

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened, if used

2шт.

30

R15257

CLAMP

- tubes, double, replaces 2 single clamps used in some applications

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Used with R15257 clamp, Ref. 30

1шт.

32

492-11038

LOCK WASHER,3/8"

used with R15257 clamp, Ref. 30 3/8"

2шт.
