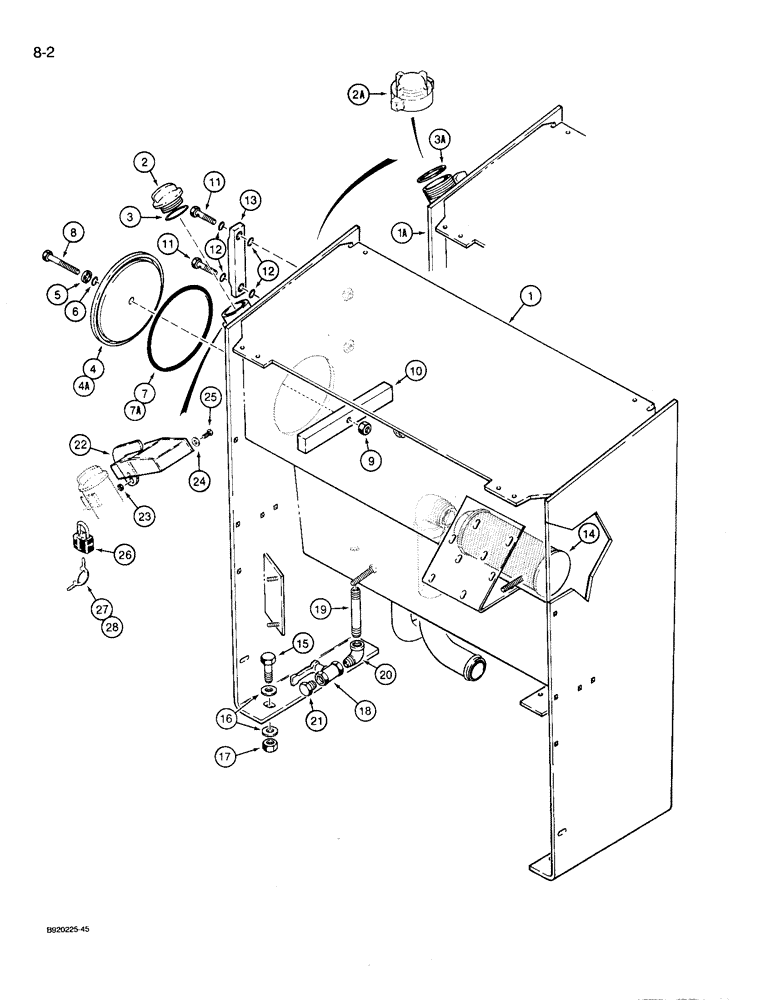

Запчасти Case 721 (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

L127451

RESERVOIR, HYDRAULIC

RESERVOIR ASSEMBLY - hydraulic, with internally threaded filler neck, no longer used, order L128927, Includes: Ref. 1 - 10

1шт.

L128927

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic, with externally threaded filler neck, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic, L127451 assembly

1шт.

1a

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic, L128927 assembly

1шт.

2

L100349

PLUG

CAP - filler, external thread, L127451 reservoir

1шт.

2a

L128669

CAP

- filler, internal thread, L128927 reservoir

1шт.

3

238-5329

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- 2 ID x 3/16 inch, for L100349 filler cap

1шт.

3a

R46984

GASKET

- 1-11/16 x 2-3/8 x 1/8 inch, for L128669 filler cap

1шт.

4

L77124

COVER ASSY

COVER - access, hydraulic filter, 8-1/4 inch OD, L127451 reservoir only

1шт.

4a

L128352

COVER

- access, hydraulic filter, 8-1/2 inch OD, L127451 or L128927 reservoir

1шт.

5

L78045

WASHER

- flat, special

1шт.

6

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

Access cover bolt -112, 70 Duro, .487" ID x .103" Thk

1шт.

7

L111687

O-RING,6.975" ID x 0.275" Width

- 7 ID x 1/4 inch, for L77124 access cover

1шт.

7a

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

- 7-1/4 ID x 1/4 inch, for L128352 access cover

1шт.

8

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Special thread length Hex, 1/2"-13 x 3", G5

1шт.

9

131-510

LOCK NUT,1/2"-13

NUT - hex, self-locking, 1/2 inch NC

1шт.

10

L50741

BAR

- cover retainer

1шт.

L116247

GAUGE

ASSEMBLY - sight, hydraulic oil, Includes: Ref. 11 - 13

1шт.

11

N13213

BOLT

BOLT - special, sight gauge

2шт.

12

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- seal, sight gauge

4шт.

13

NSS

NOT SOLD SEPARAT

GAUGE - sight, order L116247 sight gauge assembly

1шт.

14

L104990

FILTER SCREEN

SCREEN - suction

1шт.

15

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

16

D43266

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch, hardened

8шт.

17

425-1010

NUT,5/8"-11, G5

4шт.

18

L124327

DRAIN VALVE

VALVE - drain, hydraulic reservoir

1шт.

19

221-1220

PIPE,Nipple, 3/4" NPT x 4 1/2"

NIPPLE - straight, 3/4 PT x 4-1/2 inch

1шт.

20

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

- street, 90 degree, 3/4 inch PT x female PT

1шт.

21

221-665

PLUG,Hex Hd, 3/4"-14

- hex, 3/4 inch PT

1шт.

22

L127100

COVER

- lockup, hydraulic filler tube, L127451 reservoir only

1шт.

23

L126822

SPACER

- lockup bar, if used

1шт.

24

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), If used 1/4", SAE

1шт.

25

L126833

SCREW,1/4" - 20 x 3/4"

- one way, 1/4 NC x 3/4 inch, if used

1шт.

26

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 27 and 28

1шт.

27

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

28

R29555

KEY

- for Master padlock only, if used

2шт.
