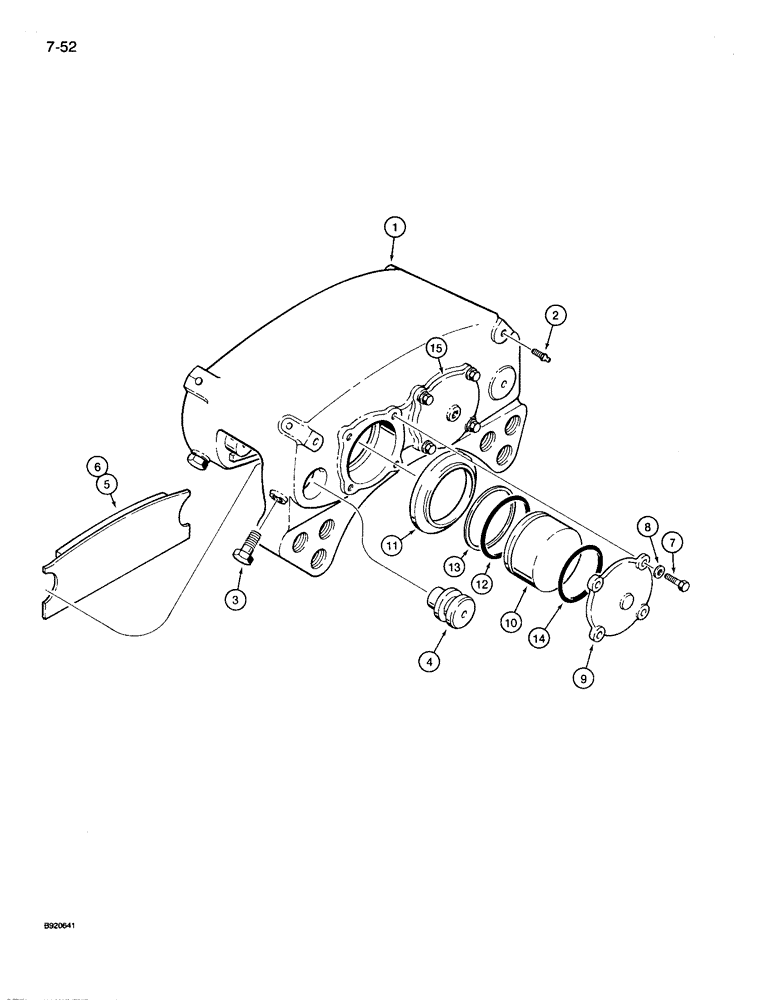

Запчасти Case 721 (7-52) - BRAKE CALIPER - L129310, *P.I.N. JAK0022628 AND AFTER (07) - BRAKES

L129310

BRAKE CALIPER

CALIPER ASSEMBLY - brake, Includes: Ref. 1 - 15

4шт.

1

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

2

D77517

VALVE

- bleeder

2шт.

3

N6171

LOCK BOLT,Hex, 3/8" - 16 x 1", Cup Pt

BOLT - hex, special

4шт.

4

D77524

PIN

- brake shoe

4шт.

S301674

BRAKE LINING

KIT - brake shoe and lining, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

6

NSS

NOT SOLD SEPARAT

LINING - brake

2шт.

7

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

9

102969A1

CAP

HEAD - piston, plain

1шт.

10

D77523

PISTON

- brake

4шт.

S301676

SET OF PARTS

KIT - seal, brake caliper, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston

4шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston

4шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

4шт.

14

NSS

NOT SOLD SEPARAT

O-RING - head

2шт.

15

S301675

CAP

HEAD - piston, with tapped inlet port

1шт.

Title on this Figure should include (B. F. Goodrich)

1шт.
