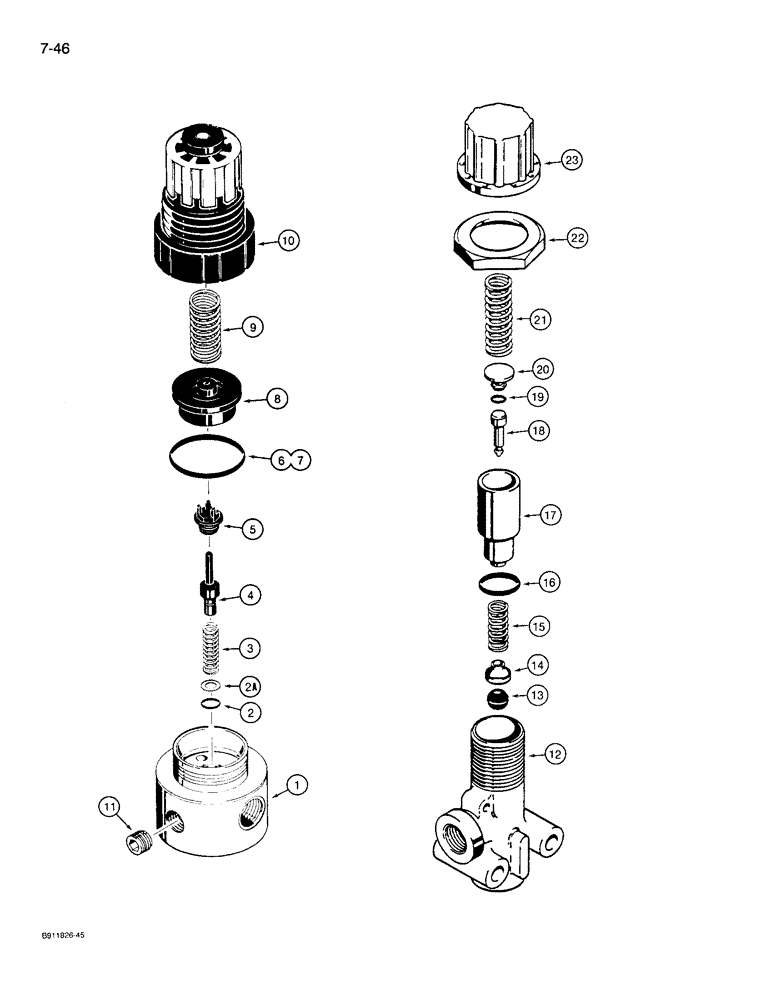

Запчасти Case 721 (7-46) - PRESSURE REDUCING AND PRESSURE PROTECTION VALVES, PRESSURE REDUCING VALVES (07) - BRAKES

L112300

VALVE

ASSEMBLY - pressure reducing, brake, see Figure 7-28 for mounting, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

D76940

KIT

- repair, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - poppet

1шт.

2a

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - small

1шт.

4

NSS

NOT SOLD SEPARAT

POPPET - valve

1шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - poppet

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

N8744

KIT

- piston, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

9

D76942

SPRING

- large

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - hex socket

1шт.

L13530

VALVE

ASSEMBLY - pressure protection, see Figure 7-28 for mounting, Includes: Ref. 12 - 23

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve, pressure protection

1шт.

13

L31802

VALVE

- clutch, pressure protection

1шт.

14

NSS

NOT SOLD SEPARAT

GUIDE - valve, pressure protection

1шт.

15

L31800

SPRING

- valve, pressure protection

1шт.

16

L31798

O-RING,1/8" ID x 1/4" OD x 1/16"

- piston, pressure protection valve

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - valve, pressure protection

1шт.

18

NSS

NOT SOLD SEPARAT

STEM - valve, pressure protection

1шт.

19

L31797

O-RING,1/2" ID x 11/16" OD x 3/32"

- plug, pressure protection valve

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - piston, pressure protection valve

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - valve, pressure protection

1шт.

22

131-414

LOCK NUT,PAL, 7/8"-14

NUT - hex, self-locking, 7/8 inch NF, pressure protection valve

1шт.

23

L33316

CAP

- adjusting, pressure protection valve

1шт.
