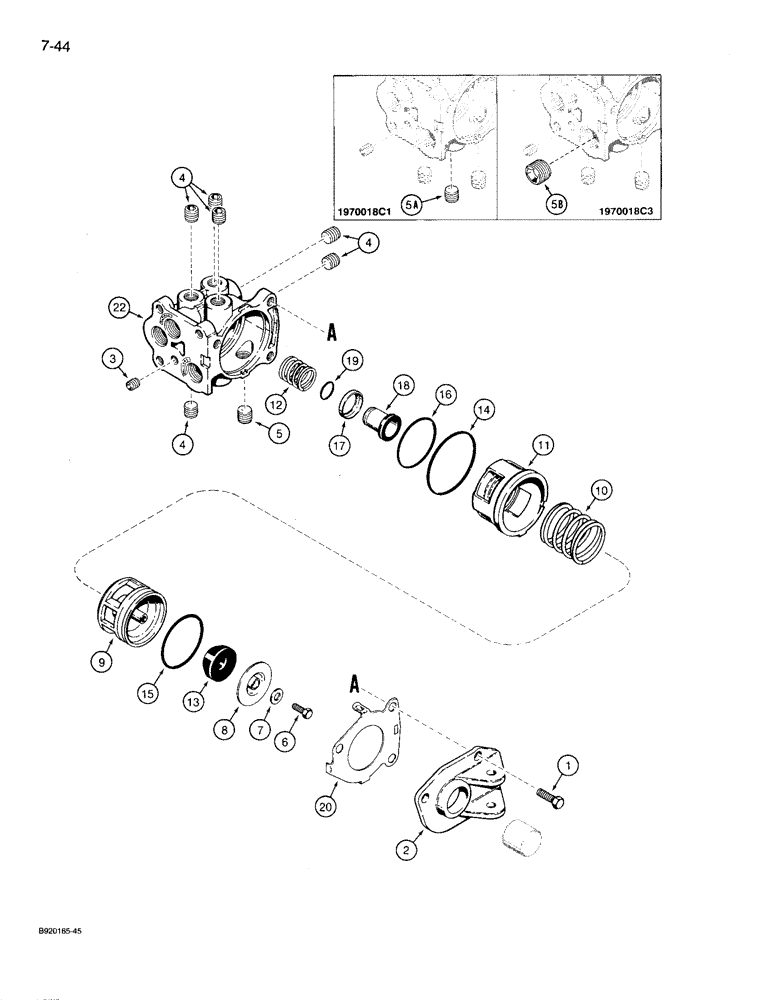

Запчасти Case 721 (7-44) - BRAKE VALVE (07) - BRAKES

1970018C1

VALVE

ASSEMBLY - brake, no longer available, order 1970018C3 and (1) Ref. 5A, 221-1841 plug, see Figure 7-24 for mounting, Includes: Ref. 1 - 22

1шт.

1970018C3

BRAKE VALVE

ASSEMBLY - brake, see Figure 7-24 for mounting, Includes: Ref. 1 - 22

1шт.

1

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

2

L124594

LARGE PLATE

BRACKET - brake valve

1шт.

3

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

4

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

6шт.

5

221-1843

PLUG

- hex socket, 3/8 inch PT

1шт.

5a

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Use on models prior to cab SN JAB0076980 or canopy SN JAB0086240 Hex Soc, 1/4"-18 NPTF

1шт.

5b

221-1844

PLUG,Hex Soc, 1/2"-14

- hex socket, 1/2 inch PT, use on models with cab SN JAB0076980 and after or canopy SN JAB0086240 and after

1шт.

L124595

VALVE

ASSEMBLY - brake, Includes: Ref. 6 - 12

1шт.

S300115

PISTON

KIT - piston, Includes: Ref. 6 - 12

1шт.

6

113-78

PREV TORQUE BOLT,Locking, 1/4"-20 x 5/8", G5, Full Thd

BOLT, Locking, 1/4"-20 x 5/8", G5, Full Thd

1шт.

7

S300110

WASHER

- special

1шт.

8

S300112

SPRING SEAT

SEAT - spring

1шт.

9

S300113

PISTON

- valve

1шт.

10

S300106

SPRING

- piston return

1шт.

11

S300105

SPRING SEAT

SEAT - inlet valve

1шт.

12

S300104

SPRING

- valve

1шт.

S300114

KIT

- overhaul, valve, Includes: Ref. 13 - 21

1шт.

13

S300111

SPRING

- piston

1шт.

14

S300124

O-RING,2.55" ID x 0.103" Width

O-RING - rubber, piston retainer

1шт.

15

S300122

O-RING,2.109" ID x 0.139" Width

O-RING - rubber, piston

1шт.

16

S300123

O-RING,2.05" ID x 0.103" Width

O-RING - rubber, seat

1шт.

17

S300103

COLLAR

RETAINER - valve

1шт.

18

S300102

VALVE POPPET

VALVE - inlet and exhaust

1шт.

19

S300121

O-RING,0.614" ID x 0.07" Width

O-RING - valve

1шт.

20

S300107

STOP

RETAINER - piston

1шт.

21

S300120

GREASE

- silicone, piston, not shown

1шт.

22

S300108

VALVE BODY

BODY - valve

1шт.
