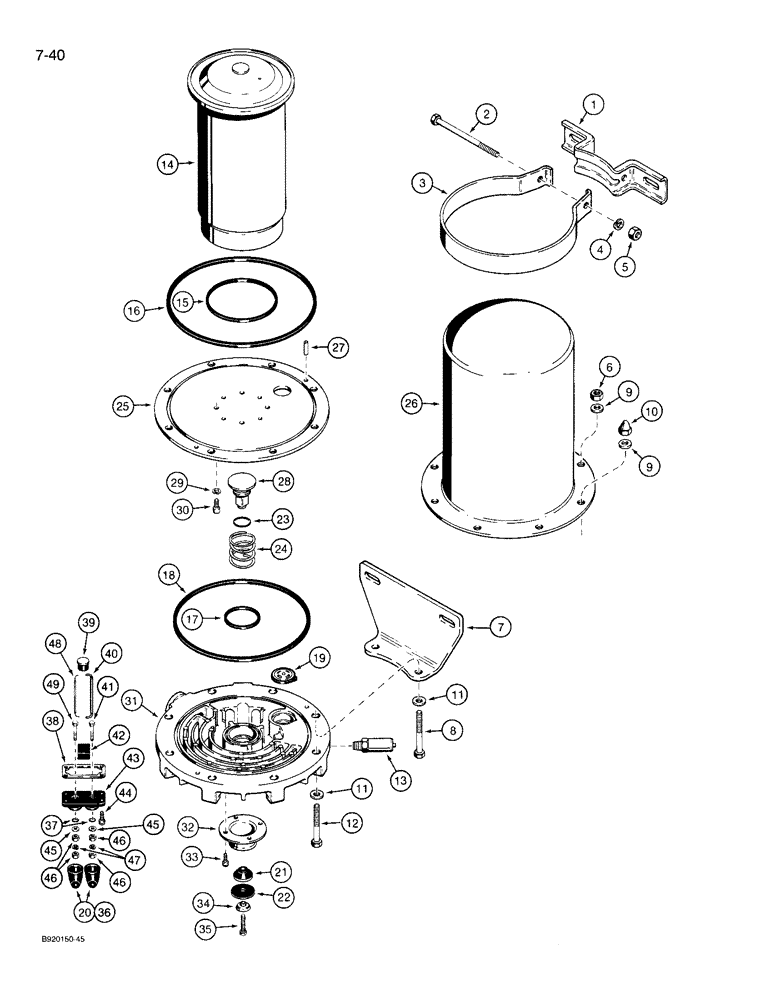

Запчасти Case 721 (7-40) - AIR DRYER (07) - BRAKES

L124681

AIR CONDITIONER

DRYER ASSEMBLY - air, brake, production, for service order 304238A1 dryer and S300006 mounting kit, Includes: Ref. 1 - 49

1шт.

P/N L124681 and L128082 air dryers are identical except for the position of the mounting brackets and hardware, Ref. 1 - 8. See Fig. 7-20 and 7-22 for the correct air dryer and position of brackets.

1шт.

L128082

ACCESSORIES

DRYER ASSEMBLY - air, brake, production, for service order 304238A1 dryer and S300006 mounting kit, Includes: Ref. 1 - 49

1шт.

P/N L124681 and L128082 air dryers are identical except for the position of the mounting brackets and hardware, Ref. 1 - 8. See Fig. 7-20 and 7-22 for the correct air dryer and position of brackets.

1шт.

S300006

KIT

- mounting bracket, rotate brackets as needed, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - mounting

1шт.

2

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

- hex, 5/16 NC x 4-3/4 inch

1шт.

3

NSS

NOT SOLD SEPARAT

STRAP - mounting

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

6

131-1133

NUT,3/8"-24, GC

NUT - hex center lock, 3/8 inch NF

2шт.

7

NSS

NOT SOLD SEPARAT

BRACKET - plate mounting

1шт.

8

428-738

BOLT - hex, 3/8 NF x 2-1/2 inch, grade 8

2шт.

304238A1

ACCESSORIES

DRYER ASSEMBLY air, brake, service, replaced S301048, Includes: Ref. 9 - 25

1шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

10

129-525

CROWN NUT,Crown, 3/8"-16

- dome, 3/8 inch NC

6шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

12

414-636

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

- hex, 3/8 NF x 2-1/4 inch

6шт.

13

S300008

VALVE

- relief

1шт.

S300007

KIT

repair, air dryer, Includes: Ref. 14 - 25

1шт.

109067A1

CARTRIDGE

KIT cartridge, Includes: Ref. 14 - 20

1шт.

14

NSS

NOT SOLD SEPARAT

CARTRIDGE - air dryer

1шт.

15

NSS

NOT SOLD SEPARAT

RING - seal, cartridge to plate, 4 inch ID

1шт.

S300011

SEAL KIT

KIT - seal and check valve, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

RING - seal, cartridge cover to plate, 8 inch ID

1шт.

17

NSS

NOT SOLD SEPARAT

RING - seal, cartridge to plate, 2 inch ID

1шт.

18

NSS

NOT SOLD SEPARAT

RING - seal, dryer body to plate, 7 inch ID

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

20

S107727

BOOT

- thermostat terminal

2шт.

S300010

KIT

valve and diaphragm, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - air dryer

1шт.

22

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve

1шт.

23

S113403

O-RING

SEAL - piston

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - piston

1шт.

25

NSS

NOT SOLD SEPARAT

PLATE - separation

1шт.

109262A1

PACKAGE, REPAIR

KIT end cover, Includes: Ref. 23 and P/N's S300011, S300010

1шт.

26

NSS

NOT SOLD SEPARAT

COVER - cartridge

1шт.

27

138-2031

PIN,3/16" x 7/8", Coiled

2шт.

28

NSS

NOT SOLD SEPARAT

PISTON - air dryer

1шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

461-32510

HEX SOC SCREW,1/4"-20 x 5/8"

BOLT - hex socket head, 1/4 NC x 5/8 inch

4шт.

31

NSS

NOT SOLD SEPARAT

BASE - air dryer, with heater element

1шт.

32

NSS

NOT SOLD SEPARAT

FLANGE - exhaust

1шт.

33

168-75

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- No. 10 NC x 5/8 inch

4шт.

34

NSS

NOT SOLD SEPARAT

WASHER - diaphragm retaining

1шт.

35

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

S300009

KIT

- thermostat, includes instructions, Includes: Ref. 36 - 49

1шт.

36

S107727

BOOT

- thermostat terminal

2шт.

37

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube

2шт.

38

S116751

GASKET

- thermostat cover

1шт.

39

NSS

NOT SOLD SEPARAT

THERMOSTAT - air dryer

1шт.

40

NSS

NOT SOLD SEPARAT

LEAD - thermostat

1шт.

41

NSS

NOT SOLD SEPARAT

BOLT - thermostat terminal

1шт.

42

D75929

SPACER

- foam, thermostat

1шт.

43

NSS

NOT SOLD SEPARAT

COVER - thermostat

1шт.

44

168-75

DRIVE SCREW,Type U, Rnd Hd, #10 x 5/8"

- No. 10 NC x 5/8 inch

4шт.

45

495-31022

WASHER,#10

2шт.

46

225-20210

NUT,#10-32, Brass

4шт.

47

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

48

NSS

NOT SOLD SEPARAT

LEAD - heating element

1шт.

49

NSS

NOT SOLD SEPARAT

BOLT - heating element terminal

1шт.

304249A1

KIT

service, dessicant cartridge, use with 304238A1

1шт.

304253A1

KIT

service, 24V HTR/thermo, use with 304238A1

1шт.

304257A1

KIT

service, purge valve maint., use with 304238A1

1шт.

304261A1

KIT

service, end cover assy., use with 304238A1

1шт.

304262A1

KIT

service, purge valve assy., use with 304238A1

1шт.
