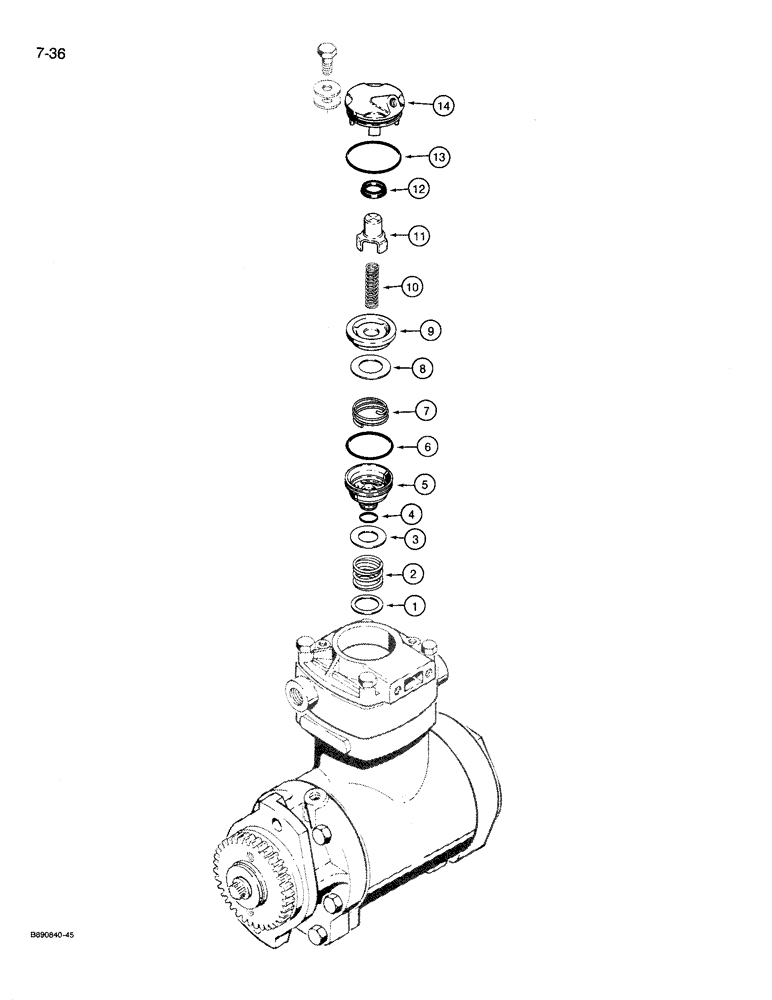

Запчасти Case 721 (7-36) - AIR COMPRESSOR HEAD REPAIR KIT (07) - BRAKES

S300693

VALVE POPPET

KIT - repair, compressor head, also includes Refs. 29 and 32 on Figure 7-34, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

Part of valve repair kit P/N S300694 and fig. 29 and 32 on Figure 7-34

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - exhaust valve, lower

1шт.

Part of valve repair kit P/N S300694 and fig. 29 and 32 on Figure 7-34

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT - lower spring

1шт.

Part of valve repair kit P/N S300694 and fig. 29 and 32 on Figure 7-34

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - exhaust valve

1шт.

Part of valve repair kit P/N S300694 and fig. 29 and 32 on Figure 7-34

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - exhaust

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - large, exhaust valve

1шт.

Part of valve repair kit P/N S300694 and fig. 29 and 32 on Figure 7-34

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - intake valve, upper

1шт.

Part of valve repair kit P/N S300694 and fig. 29 and 32 on Figure 7-34

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring, intake valve

1шт.

Part of valve repair kit P/N S300694 and fig. 29 and 32 on Figure 7-34

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - intake

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - unloading valve

1шт.

Part of valve repair kit P/N S300694 and fig. 29 and 32 on Figure 7-34

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET - unloading valve

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rectangular, poppet

1шт.

Part of valve repair kit P/N S300694 and fig. 29 and 32 on Figure 7-34

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - unloading valve

1шт.

Part of valve repair kit P/N S300694 and fig. 29 and 32 on Figure 7-34

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - unloading

1шт.

S300694

KIT

- valve repair, Includes Refs. 1, 2, 3, 4, 6, 7, 8, 10, 12 and 13 and Refs. 29 and 32 on Figure 7-34

1шт.

The S300693 and S300694 Kits are replaced by 121302A1 Kit. This kit contains all Ref. that were in both kits, plus a few more gaskets, the unloader body and unloader grease.

1шт.
