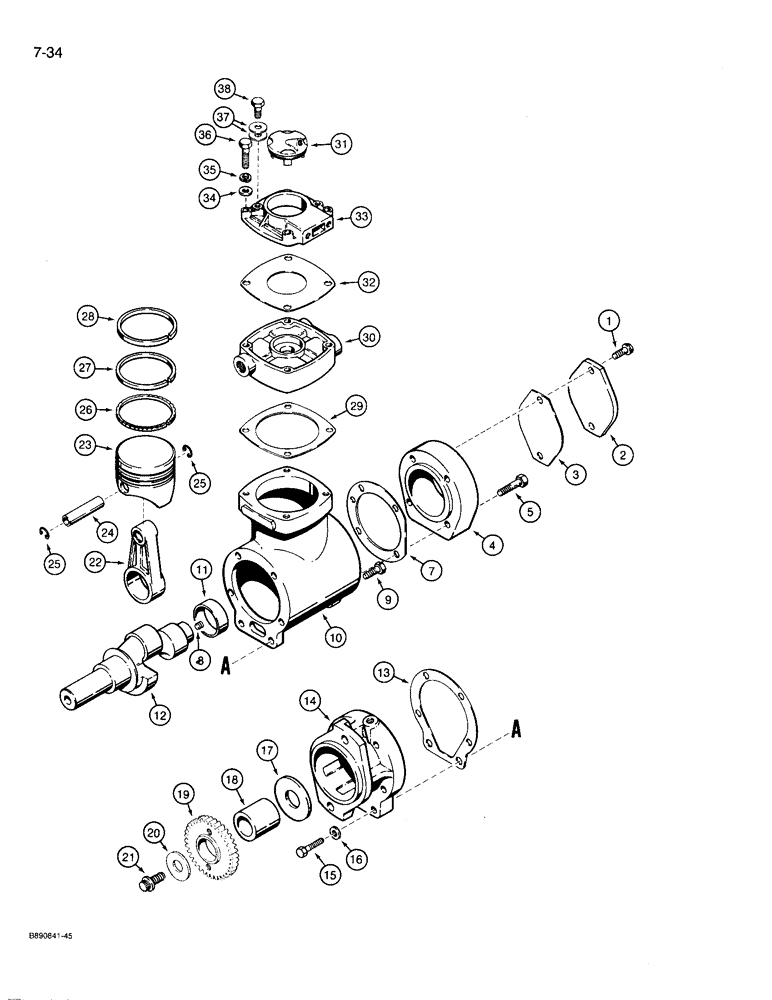

Запчасти Case 721 (7-34) - AIR COMPRESSOR (07) - BRAKES

A77656

COMPRESSOR

ASSEMBLY - air, see Figure 7-12 for mounting

1шт.

L125678R

REMAN-COMPRESSOR

721

1шт.

L125678C

CORE-COMPRESSOR

Return Number

1шт.

1

J903112

FLANGE BOLT,Hex, M10 x 30mm, Cl 10.9

BOLT - hex flange

2шт.

2

S300636

COVER

- compressor housing

1шт.

3

S300637

GASKET

- adapter

1шт.

4

S300641

ADAPTER

- compressor

1шт.

5

61-728

HEX SOC SCREW,7/16"-14 x 1 3/4"

BOLT - hex socket head, 7/16 NC x 1-3/4 inch

4шт.

7

S300638

GASKET

- compressor

1шт.

8

S300600

PLUG

- hex socket, 1/16 inch PT

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

10

S300598

HOUSING

- compressor, Includes: Ref. 11

1шт.

11

S300691

BUSHING

- compressor housing

1шт.

12

S300599

CRANKSHAFT

- compressor

1шт.

13

S300626

GASKET

- flange

1шт.

14

S300625

HOUSING

FLANGE - compressor

1шт.

15

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

4шт.

16

S300630

WASHER

- flat, 13/32 x 13/16 x 1/16 inch

4шт.

17

S300628

WASHER

- thrust

1шт.

18

S300627

SPACER

- gear

1шт.

19

J902595

GEAR

- drive

1шт.

20

S300640

WASHER

- flat

1шт.

21

166-572

12 PT SCREW,Flg, 1/2" - 20 x 1 1/4", Gr 8

SCREW - flanged, 12 point, 1/2 NF x 1-1/4 inch

1шт.

22

S300601

PITMAN ASSY.

ROD - connecting

1шт.

23

S300602

PISTON

- compressor

1шт.

24

S300624

PISTON PIN

PIN - Piston

1шт.

25

S300603

CIRCLIP

RING - retaining

2шт.

26

S300604

RING, PISTON

RING - oil control

1шт.

27

S300606

RING, PISTON

RING - compression, lower

1шт.

28

S300605

RING, PISTON

RING - compression, upper

1шт.

29

S300622

GASKET,0.46mm Thk

- compressor head

1шт.

Ref. 29 and 32 are included in P/N S300693 compressor head repair kit and P/N S300694 valve repair kit shown on Fig. 7-36.

1шт.

30

S300607

HEAD (CYLINDER)

HOUSING - compressor head

1шт.

31

S300693

VALVE POPPET

KIT - repair, compressor head, parts list Figure 7-36

1шт.

32

S300619

GASKET,1.58mm Thk

- compressor cover

1шт.

Ref. 29 and 32 are included in P/N S300693 compressor head repair kit and P/N S300694 valve repair kit shown on Fig. 7-36.

1шт.

33

S300618

COVER

- compressor head

1шт.

34

S300632

WASHER

- flat, 11/32 x 11/16 x 1/16 inch

4шт.

35

S300631

LOCK WASHER

- lock

4шт.

36

26-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

- hex, 5/16 NC x 2-3/4 inch, grade 8

4шт.

37

S300629

WASHER

- flat, 11/32 x 7/8 x 1/8 inch

2шт.

38

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.
