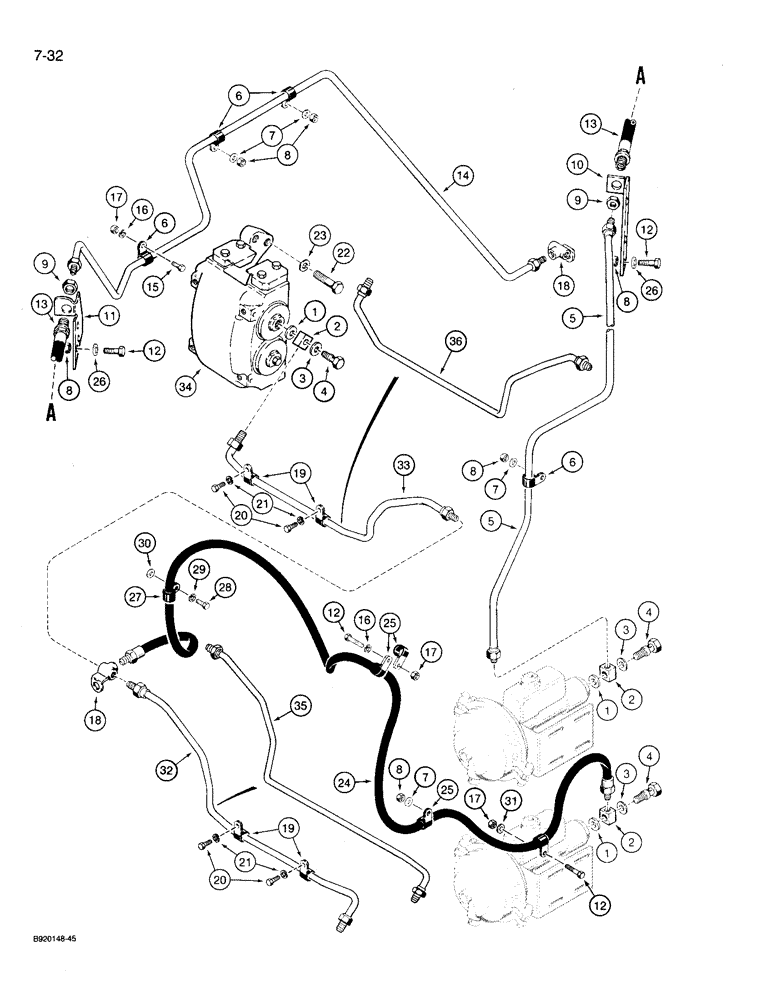

Запчасти Case 721 (7-32) - BRAKE ACTUATORS TO WHEEL CYLINDERS (07) - BRAKES

1

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - adapter, .540 inch (13.72 mm) ID, inner

6шт.

2

A18531

FITTING

- special

6шт.

3

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer

6шт.

4

A12864

BOLT

- special

6шт.

5

L128121

TUBE,6.35 mm OD

- front brake, upper brake actuator to hose

1шт.

6

49851

SHIELD

- retaining

4шт.

7

S95569

WASHER

- flat, hardened

4шт.

8

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

8шт.

9

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

2шт.

10

L119129

SUPPORT

BRACKET - brake hose, rear

1шт.

11

L129465

SUPPORT

BRACKET - brake hose, front

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

6шт.

13

L119035

HOSE,3.18 mm ID x 450.00 mm, SAE 1401

Brake 3.18 mm ID x 450.00 mm, SAE 1401

1шт.

14

L127225

TUBE

- front brake, hose to front axle

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

3шт.

18

L76365

FITTING

TEE - brake lines, at axles

2шт.

19

A38799

CLAMP

- tubes, brake line

8шт.

20

413-46

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5

- hex, 1/4 NC x 3/8 inch

8шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

22

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

24шт.

23

L79179

WASHER

- flat, hardened

24шт.

24

L117847

HOSE,4.76mm ID x 1750mm L

Lower Actuator to Rear Axle 4.76 mm ID x 1750.00 mm, SAE J1401

1шт.

25

49838

CLAMP

- mounting, hose

3шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

27

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- hose to rear axle

1шт.

28

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

29

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

30

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

31

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened

1шт.

32

L126252

TUBE,6.35 mm OD

- brake lines, left-hand front, not shown, and right-hand rear, shown, Serial Range: -JAK0022628

2шт.

Ref 32, 33 and 34 - Apply to Rockwell Calipers only

1шт.

33

L126250

TUBE,6.35 mm OD

- brake lines, right-hand front, not shown, and left-hand rear, shown, Serial Range: -JAK0022628

2шт.

34

L127645

BRAKE CALIPER

CALIPER ASSEMBLY - disc brake, service replacement part, Serial Range: -JAK0022628

4шт.

*

for L127646, parts list Figure 7-50

1шт.

34

L127645R

REMAN-BRAKE ASSY.

721 BSN JAK0022628

4шт.

34

L127645C

CORE-BRAKE ASSY.

Return Number

4шт.

35

L129584

TUBE,6.35 mm OD

- brake lines, left-hand front, not shown, and right-hand rear, shown, Start Serial: JAK0022628

2шт.

Ref 32, 33 and 34 - Apply to Rockwell Calipers only

1шт.

36

L129586

TUBE,6.35 mm OD

- brake lines, right-hand front, not shown, and left-hand rear, shown, Start Serial: JAK0022628

2шт.

37

L129310

BRAKE CALIPER

CALIPER ASSEMBLY - disc brake, not shown, parts list and, illustration shown on Figure 7-52 and 7-52, Start Serial: JAK0022628

4шт.
